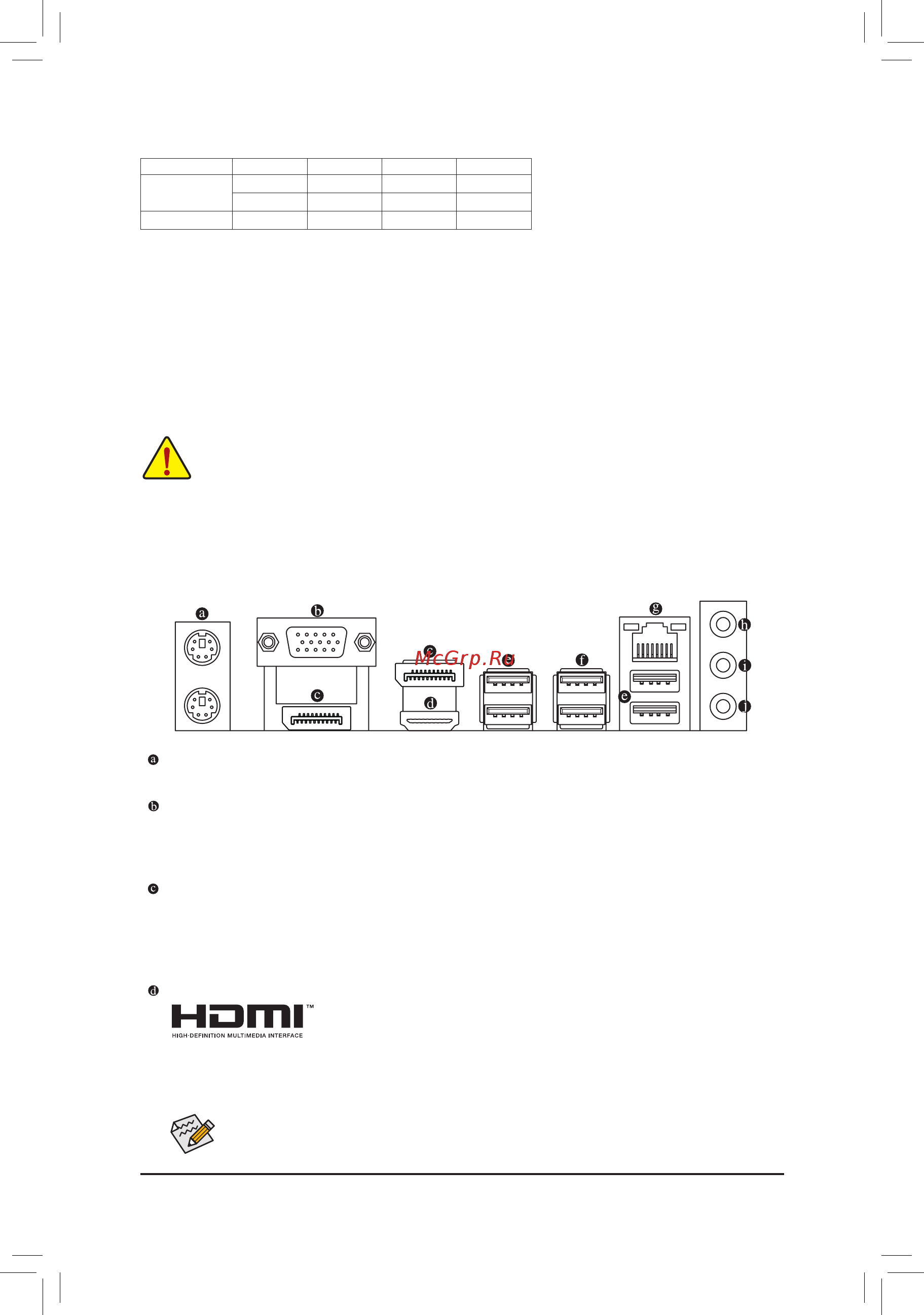

1-6 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.

D-Sub Port

TheD-Subportsupportsa15-pinD-Subconnectorandsupportsamaximumresolutionof1920x1200@60Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

D-Sub connection to this port.

DisplayPort

DisplayPort delivers high quality digital imaging and audio, supporting bi-directional audio transmission.

can use this port to connect your HDMI-supported monitor. The maximum supported resolution is

4096x2160@30Hz,buttheactualresolutionssupportedaredependentonthemonitorbeingused.

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory

of the same capacity, brand, speed, and chips be used. For optimum performance, when enabling

DualChannelmodewithtwomemorymodules,werecommendthatyouinstallthemintheDDR4_1

andDDR4_2sockets.

1-5 InstallinganExpansionCard

Readthefollowingguidelinesbeforeyoubegintoinstallanexpansioncard:

DualChannelMemoryCongurationsTable
