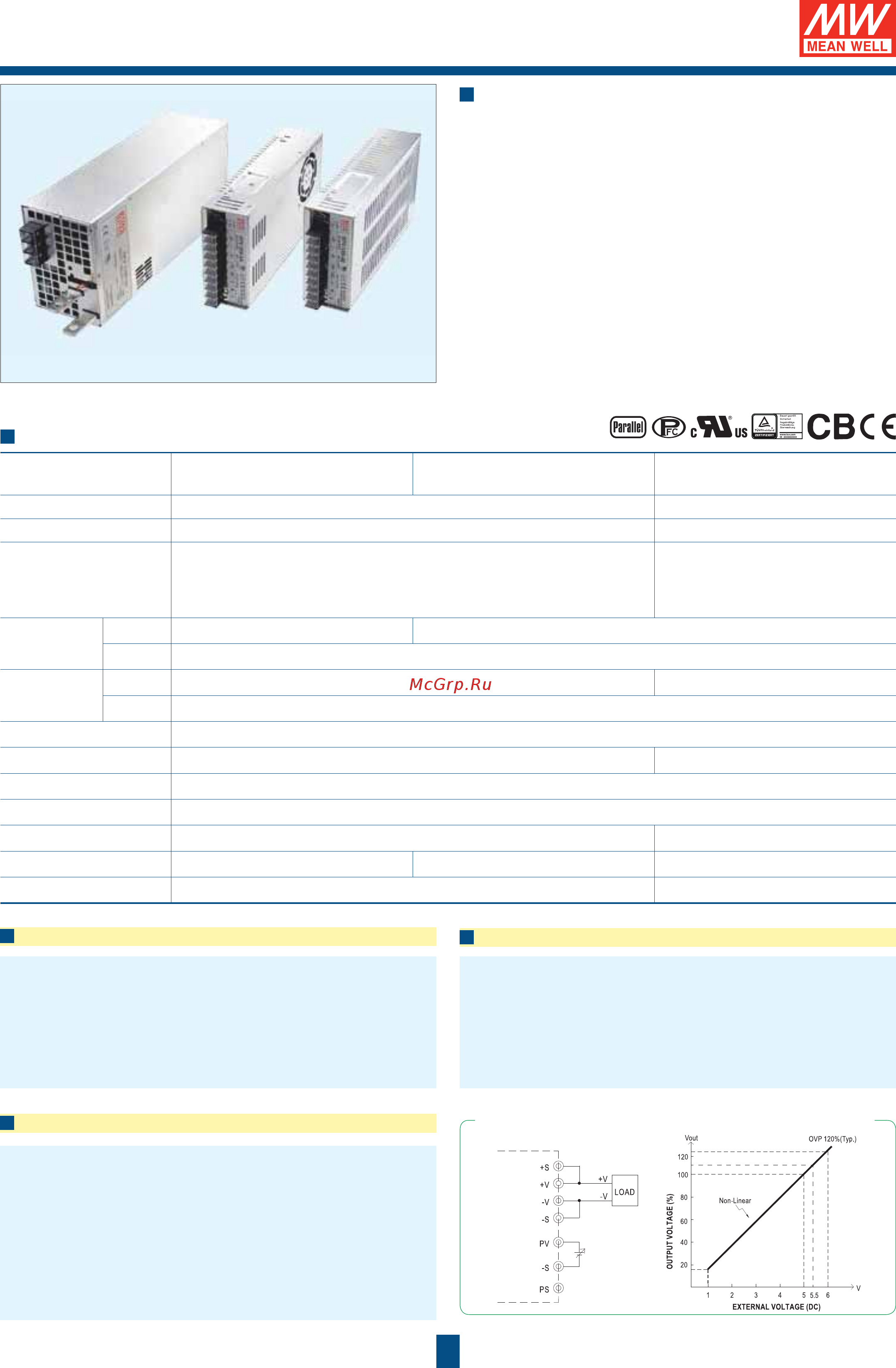

![MEAN WELL MPT-65C [21/112] Enclosed pfc](/views2/1669843/page21/bg15.png)
(SPV-1500)
18
• Universal AC input / Full range
• Built-in active PFC function
• Protections:
Short circuit / Overload / Over voltage / Over temperature
• Output voltage programmable
• Forced air cooling by built-in DC fan (except for SPV-150)
• Built-in remote sense and ON/OFF control (SPV-1500)
• Built-in 12V/0.1A auxiliary power and current sharing up to 4500W
(SPV-1500)
• 3 years warranty
SPV-150SPV-300
SPV-1500
Enclosed-PFC
150~1500W Programmable Power Lite
Model No. Output Tol. R&N Effi.
SPV-150-12 12V, 0~12.5A ±1% 150mV 82%
SPV-150-24 24V, 0~6.25A ±1% 150mV 83%
SPV-150-48 48V, 0~3.125A ±1% 240mV 83%
Model No. Output Tol. R&N Effi.
SPV-300-12 12V, 0~25A ±1% 150mV 83.5%
SPV-300-24 24V, 0~12.5A ±1% 150mV 85.0%
SPV-300-48 48V, 0~6.25A ±1% 240mV 86.5%
Model No. Output Tol. R&N Effi.
SPV-1500-12 12V, 0~125A ±1% 150mV 86.5%
SPV-1500-24 24V, 0~63A ±1% 150mV 90.0%
SPV-1500-48 48V, 0~32A ±1% 200mV 90.0%
Features
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. SPV-150 SPV-300 SPV-1500
AC input voltage range 88~264VAC; 124~370VDC 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 45A at 230VAC Cold start, 60A at 230VAC
DC adjustment range
Vo: -15%~+10% by potentiometer or to 20%~110% of rated output voltage
by 1~5.5VDC
external control signal
Vo: ±5% by potentiometer or to
20%~110% of rated output
voltage by 1~5.5VDC
external control signal
Overload
protection
Range 105%~150% 105%~135%
Type constant current limiting, auto-recovery
Over voltage
protection
Range 115%~140% 120%~140%
Type shut down O/P voltage, re-power on to recover
Withstand voltage I/P - O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+65°C -20~+70°C
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) (mm) 215x 115x 50 278x 127x 83.5
Case No. 912L 912G 943A
Packing 1.1kg ; 12pcs / 14kg / 0.92CUFT 3.0kg ; 4pcs / 13kg / 1.19CUFT
150W SPV-150
1500W SPV-1500
300W SPV-300
źźOutput Voltage Programmable for SPV series
1~5.5V
