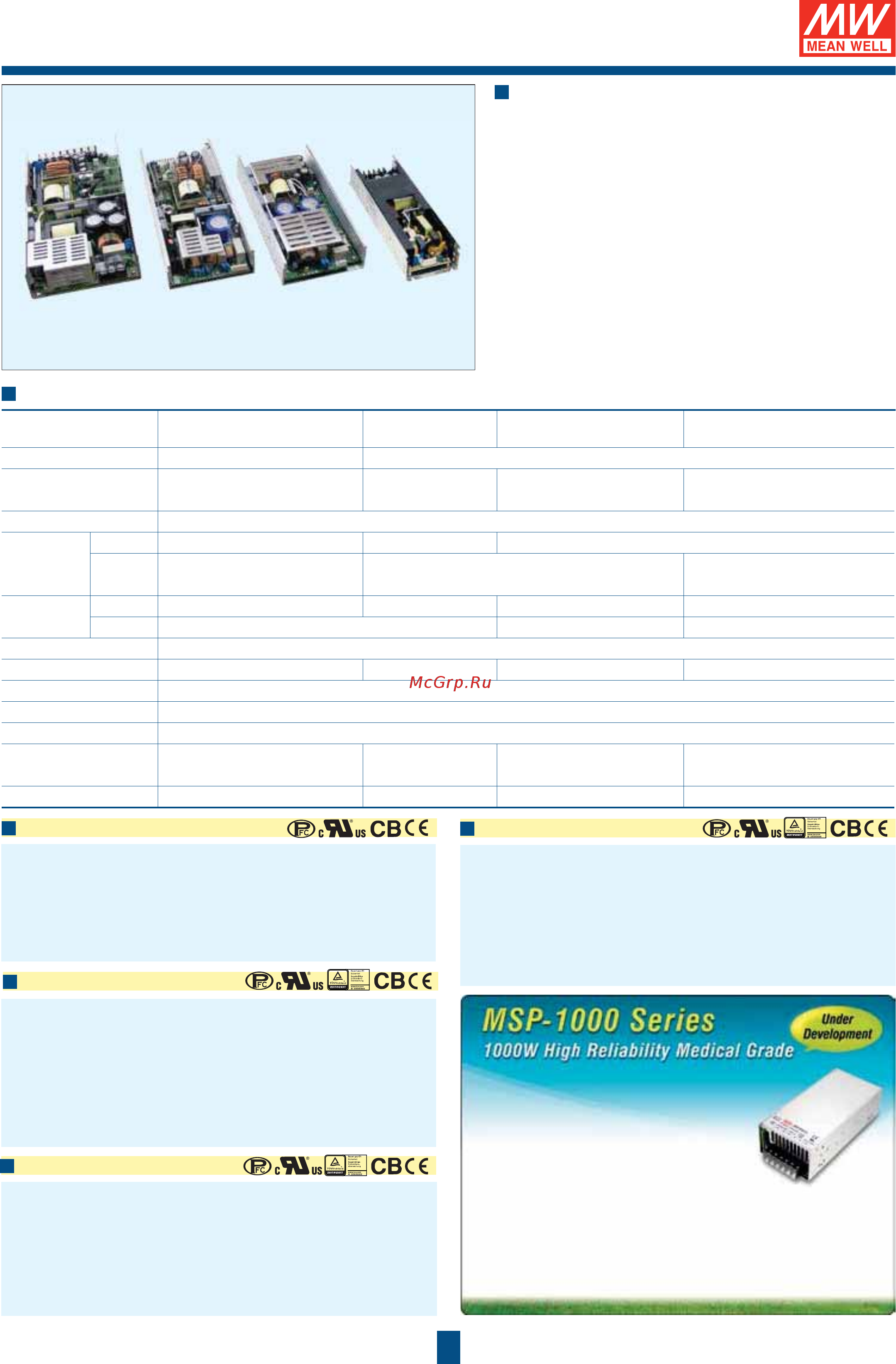

U-bracket-PFC

150~500W Single Output

Features

• Universal AC input / Full range

• Built-in active PFC function

• Protections: Short circuit / Overload /Over voltage /

Over temperature

• Output wattage:

USP-150: 150W convection

USP-225: 150W convection, 225W with 18CFM forced air

USP-350: 300W convection, 350W with 23.5CFM forced air

USP-500: 400W convection, 500W with 23.5CFM forced air

• U-bracket low profile: 33mm(USP-150); 38mm(USP-225/350);

41mm(USP-500)

• Built-in remote ON/OFF control, remote sense, DC OK signal

(USP-500)

• Optional current sharing(1+1) for USP-500-24/48

• 3 years warranty

USP-225 USP-150

General Specification (Please refer to www.meanwell.com for detail spec.)

Model No. USP-150 USP-225 USP-350 USP-500

AC input voltage range 90~295VAC; 127~417VDC 90~264VAC; 127~370VDC

AC inrush current (max.) Cold start, 65A at 230VAC

15A at 115VAC,

35A at 230VAC

22A at 115VAC,

44A at 230VAC

30A at 115VAC,

50A at 230VAC

DC adjustment range ±10% rated output voltage

Overload

protection

Range 110%~160% 105%~150% 105%~130%

Type Hiccup mode, auto-recovery Constant current limiting, auto-recovery

Constant current,

shut off after 3 sec.

Over voltage

protection

Range 110%~135% 110%~135% 110%~140% 115%~135%

Type Shut off, AC recycle to re-start Hiccup mode, auto-recovery

Shut off,

AC recycle to re-start

Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute

Working temperature -30~+65°C -20~+65°C -10~+65°C -20~+70°C

Vibration 10~500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

Safety standards UL60950-1, TUV EN60950-1(except for USP-150) approved

EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

Connection

JST: SVH-21T-P1.1,

4P/7.62mm pitch terminal block

20P/2.54mm pitch,

Molex 39-29-9206

5+9Px2/3.96mm pitch,

JST: B5P/B9Px2-VH

3+8P/8.5mm pitch terminal

block with cover

Dimension (LxWxH)(mm) 215x 67.4x 33 202x 101.5x 38 235.2x 101.5x 38 254x 127x 41

USP-150 Series

USP-350 Series

USP-225 Series

USP-500 Series

USP-350USP-500

Model No. Output Tol. R&N Effi.

USP-350-3.3 3.3V, 0~70.0A ±2% 80mV 78%

USP-350-5 5V, 0~70.0A ±2% 80mV 84%

USP-350-12 12V, 0~29.2A ±2% 100mV 88%

USP-350-15 15V, 0~23.4A ±2% 100mV 88%

USP-350-24 24V, 0~14.6A ±2% 150mV 88%

USP-350-48 48V, 0~7.30A ±2% 150mV 89%

Model No. Output Tol. R&N Effi.

USP-150-12 12V, 0~12.5A ±2% 100mV 91.5%

USP-150-15 15V, 0~10.0A ±2% 150mV 91.5%

USP-150-24 24V, 0~6.30A ±2% 150mV 93.0%

USP-150-36 36V, 0~4.20A ±2% 250mV 93.0%

USP-150-48 48V, 0~3.20A ±2% 250mV 93.0%

Model No. Output Tol. R&N Effi.

USP-225-3.3 3.3V, 0~40.0A ±2% 100mV 72%

USP-225-5 5V, 0~40.0A ±2% 100mV 77%

USP-225-12 12V, 0~18.7A ±2% 100mV 83%

USP-225-15 15V, 0~15.0A ±2% 100mV 84%

USP-225-24 24V, 0~9.40A ±2% 150mV 85%

USP-225-48 48V, 0~4.70A ±2% 250mV 86%

Model No. Output Tol. R&N Effi.

USP-500-5 5V, 0~80.0A ±2% 80mV 85%

USP-500-12 12V, 0~42.0A ±2% 100mV 90%

USP-500-15 15V, 0~33.5A ±2% 100mV 90%

USP-500-24 24V, 0~21.0A ±2% 150mV 89%

USP-500-48 48V, 0~10.5A ±2% 150mV 90%

• Universal AC input / Full range

• Withstand 300VAC surge input for 5 seconds

• Built-in active PFC function

• Medical grade (2xMOPP level)

•

Current sharing up to 4000W (3+1)

• Protections: Short circuit / Overload /

Over voltage / Over temperature

• Design refer to ANSI/AAMI ES60601-1, EN60601-1, IEC60601-1

• Output models: 12V / 15V / 24V / 48V

• Dimension(LxWxH): 218x 105x 63.5mm

• 5 years warranty
