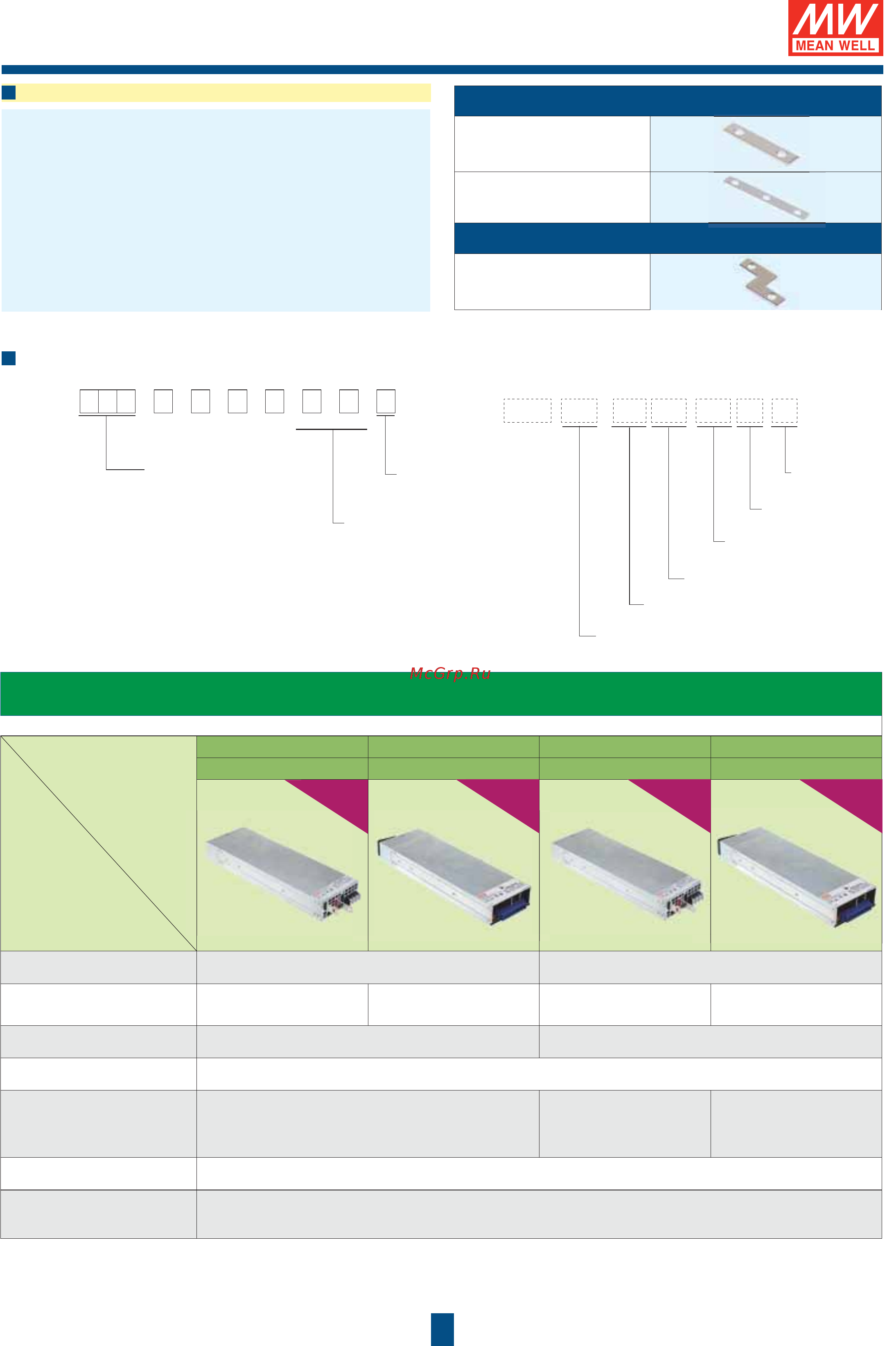

80
Output Configuration Guide
NMP
--
SLOT 1 SLOT 2 SLOT 3 SLOT 4 SLOT 5 SLOT 6
650/1K2(650W/1200W)
Example:
Parallel or
option code
SLOT1-o/p: 5V@36A
SLOT2-o/p: 12V@20A
SLOT3-o/p: 24V@10A
SLOT4-o/p: 24V@10A
SLOT5-o/p: 48V@5A
SLOT6-o/p: 48V@5A
For NMP1K2 only
NMP 1K2- C E H H K K
Modular Series
80
3200W Programmable High Power with Digital Control
Model N0. &
Product Picture
General Specification
DPU-3200 DRP-3200 DBU-3200 DBR-3200
Power Supply Rack Power Battery Charger Rack Charger
Output configulation 24V / 48V 28.8V / 57.6V
Current sharing 16000W (4+1)
12800W
for one 19" rack shelf
6400W (1+1)
12800W
for one 19" rack shelf
Programmable function Output voltage and constant current level Output volrage and output current
PFC function Built-in PFC function
Protections
Short circuit / Overload /
Over voltage / Over temperature
Short circuit /
Over voltage /
Over temperature
Battery under voltage /
Battery no connection /
Short circuit /
Over temperature
Dimensions (LxWxH)(mm) 325x 107x 41
Other features
• Built-in OR-ing FET, support hot swap
• Forced air cooling by built-in DC fan
• Optional conformal coating
NMS-240: 1-SLOT isolated dual output (240W max.)
Item Code Output Vdc adj. Tol. R&N. Max.
C 5V, 0~36A 3~6V ±2% 80mV 180.0W
E 12V, 0~20A 6~15V ±1% 150mV 240W
H 24V, 0~10A 15~30V ±1% 150mV 240W
K 48V, 0~5A 30~58V ±1% 250mV 240W
Parallel Connection Accessory
FAP-009
(For NMS-240, 2 units)
FAP-010
(For NMS-240, 3 units)
Series Connection Accessory
FAS-001
(For 1-slot modules: NMS-240)
Comming
Soon
Comming
Soon
Comming
Soon
Comming
Soon
Comming
Soon
Comming
Soon
Comming
Soon
Comming
Soon
