86/100

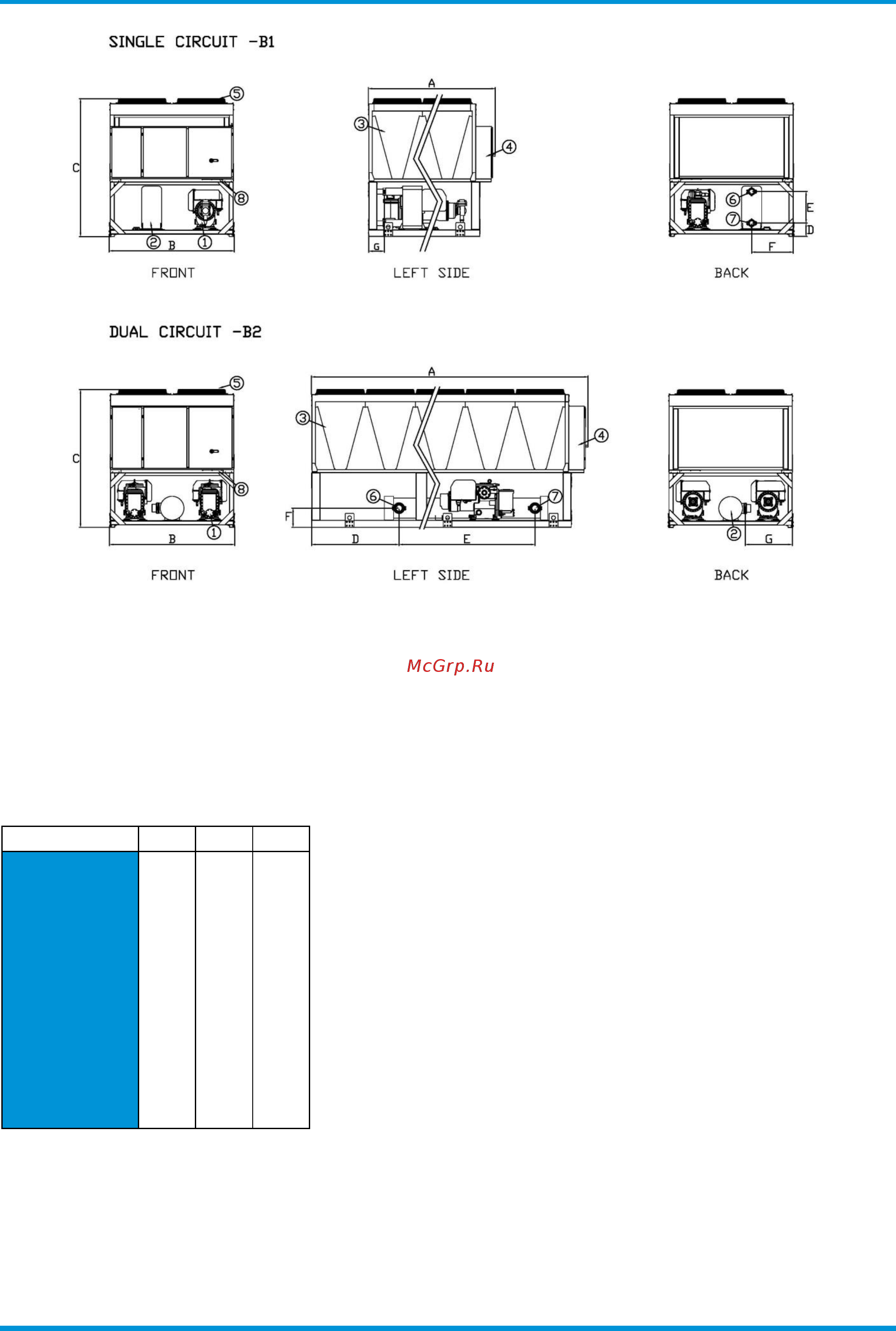

DIMENSIONAL DRAWING
LEGEND
1.
COMPRESSOR
2.
EVAPORATOR
3.
CONDENSER COIL
4.
ELECTRICAL PANEL
5.
FAN
6.
EVAPORATOR WATER INLET
7.
EVAPORATOR WATER OUTLET
8.
SLOT FOR POWER AND CONTROL PANEL CONNECTION
note: the above drawings are not contractually binding. For the design of installation refer to the dedicated dimensional drawing available from
the factory on request. The data are subject to change without notice.
MODEL
A
B
C
EWAH170TZSSB1
2331
2282
2540
EWAH200TZSSB1
2331
2282
2540
EWAH240TZSSB1
3231
2282
2540
EWAH290TZSSB1
3231
2282
2540
EWAH330TZSSB1
3231
2282
2540
EWAH390TZSSB2
5030
2282
2540
EWAH420TZSSB2
5030
2282
2540
EWAH490TZSSB2
5887
2282
2540
EWAH530TZSSB2
5887
2282
2540
EWAH600TZSSB2
5887
2282
2540
EWAH690TZSSB2
6877
2282
2540
EWAH750TZSSB2
7787
2282
2540
EWAH820TZSSB2
7787
2282
2540
EWAH920TZSSB2
8687
2282
2540
EWAH980TZSSB2
9587
2282
2540
EWAHC10TZSSB2
9587
2282
2540
