![Daikin EWAH330TZ-SSB1 [89/102] Dimensional drawing](/img/pdf.png)
Daikin EWAH330TZ-SSB1 [89/102] Dimensional drawing
![Daikin EWAH580TZ-XSB2 [89/102] Dimensional drawing](/views2/1672263/page89/bg59.png)
88/100

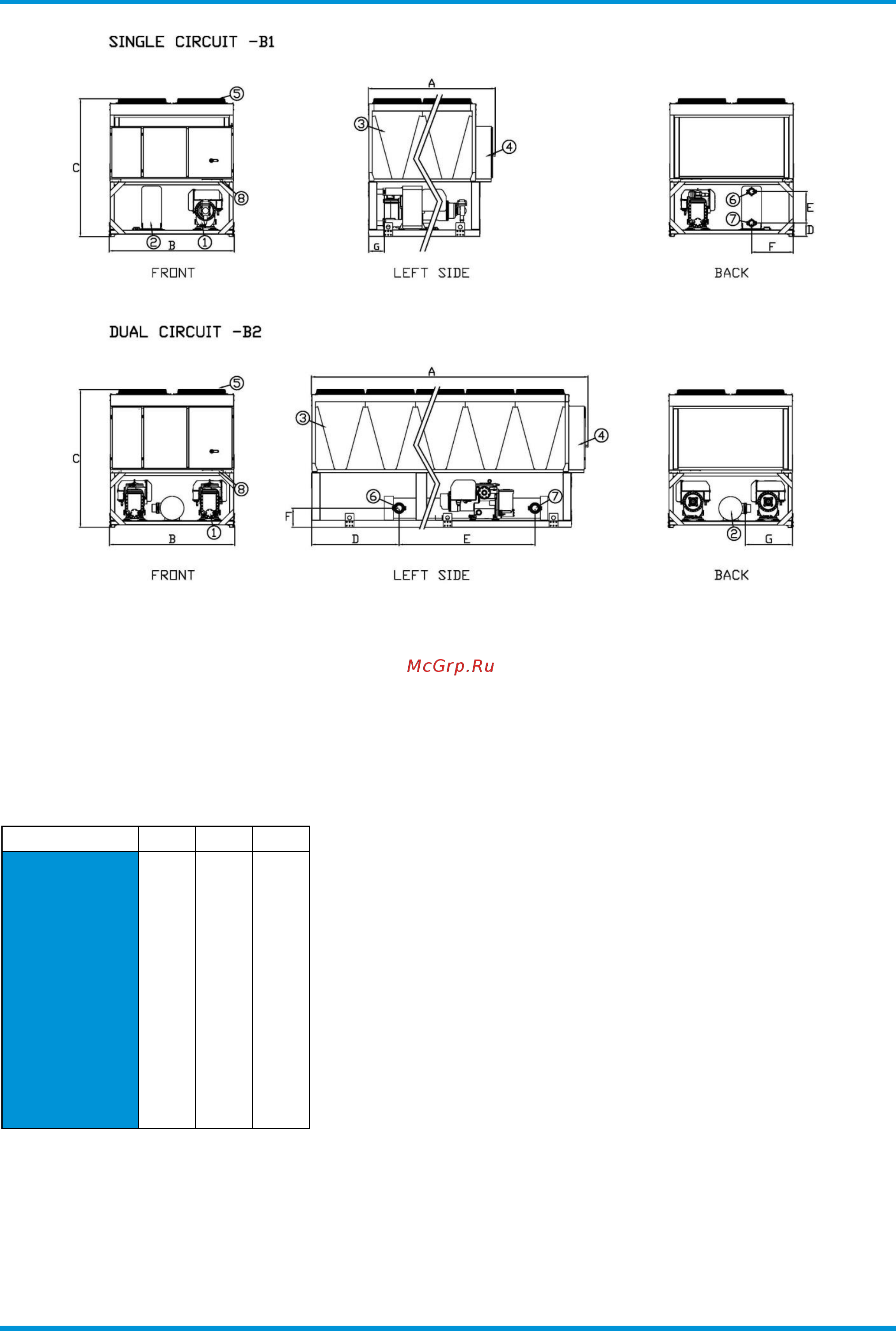

DIMENSIONAL DRAWING
LEGEND
1.
COMPRESSOR
2.
EVAPORATOR
3.
CONDENSER COIL
4.
ELECTRICAL PANEL
5.
FAN
6.
EVAPORATOR WATER INLET
7.
EVAPORATOR WATER OUTLET
8.
SLOT FOR POWER AND CONTROL PANEL CONNECTION
note: the above drawings are not contractually binding. For the design of installation refer to the dedicated dimensional drawing available
from the factory on request. The data are subject to change without notice.
MODEL
A
B
C
EWAH170TZSRB1
2331
2282
2540
EWAH200TZSRB1
2331
2282
2540
EWAH240TZSRB1
3231
2282
2540
EWAH290TZSRB1
3231
2282
2540
EWAH330TZSRB1
3231
2282
2540
EWAH390TZSRB2
5030
2282
2540
EWAH420TZSRB2
5030
2282
2540
EWAH490TZSRB2
5887
2282
2540
EWAH530TZSRB2
5887
2282
2540
EWAH600TZSRB2
5887
2282
2540
EWAH690TZSRB2
6877
2282
2540
EWAH750TZSRB2
7787
2282
2540
EWAH820TZSRB2
7787
2282
2540
EWAH920TZSRB2
8687
2282
2540
EWAH980TZSRB2
9587
2282
2540
EWAHC10TZSRB2
9587
2282
2540
