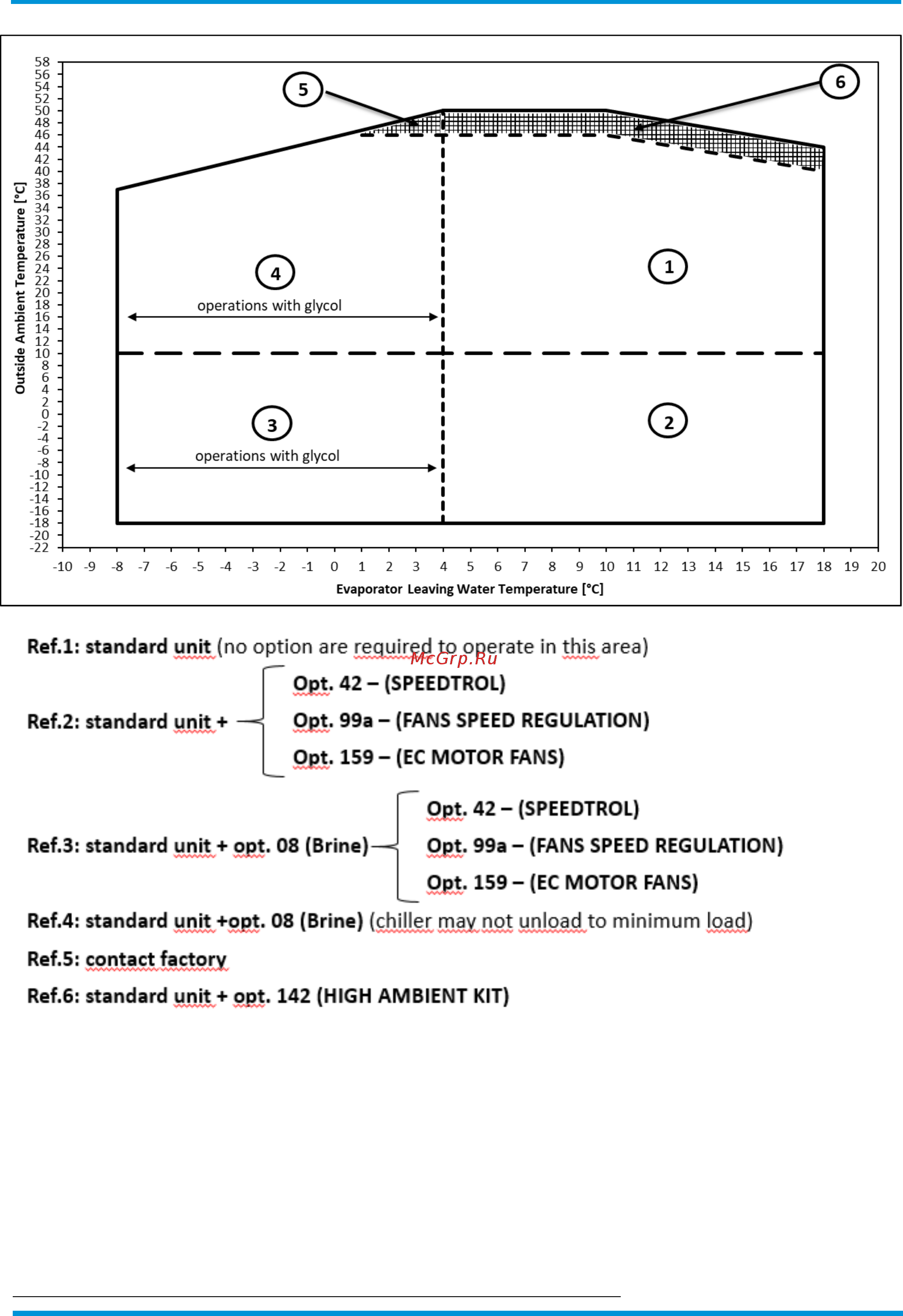

OPERATING LIMITS

EWAH~TZ S-B- (SILVER SERIES)

In order to operate the following options must be included according to the specific operating area:

NOTE:

The above graph refers to the unit operating at full load. Unit may be able to operate outside the above envelope

with compressors unloading. Please contact factory for further details.

For operation with EWLT below 4°C, the unit must operate with glycol mixture. The glycol percentage must be

provide according to the minimum ELWT needed.

The above graphic represents a guideline about the operating limits of the range. Please refer to the latest

Chiller Selection Software (CSS) for real operating limits working conditions for each size.

Opt. 142 provides 6 poles fans (running 900 RPM). The performances will differ from the standards.

Opt. 159 provides EC motors fans. The performances will differ from the standards.

For units equipped with opt. 142 the sound performances are different from the standards.

In area 3 and 4 chiller may not unload to the minimum load.

In area 5 and 6 chiller may run at part load. Refer to latest CSS for specific working conditions for each size.

Note: Unit selected with opt.08 either opt.142 needs to be ordered with such options.
