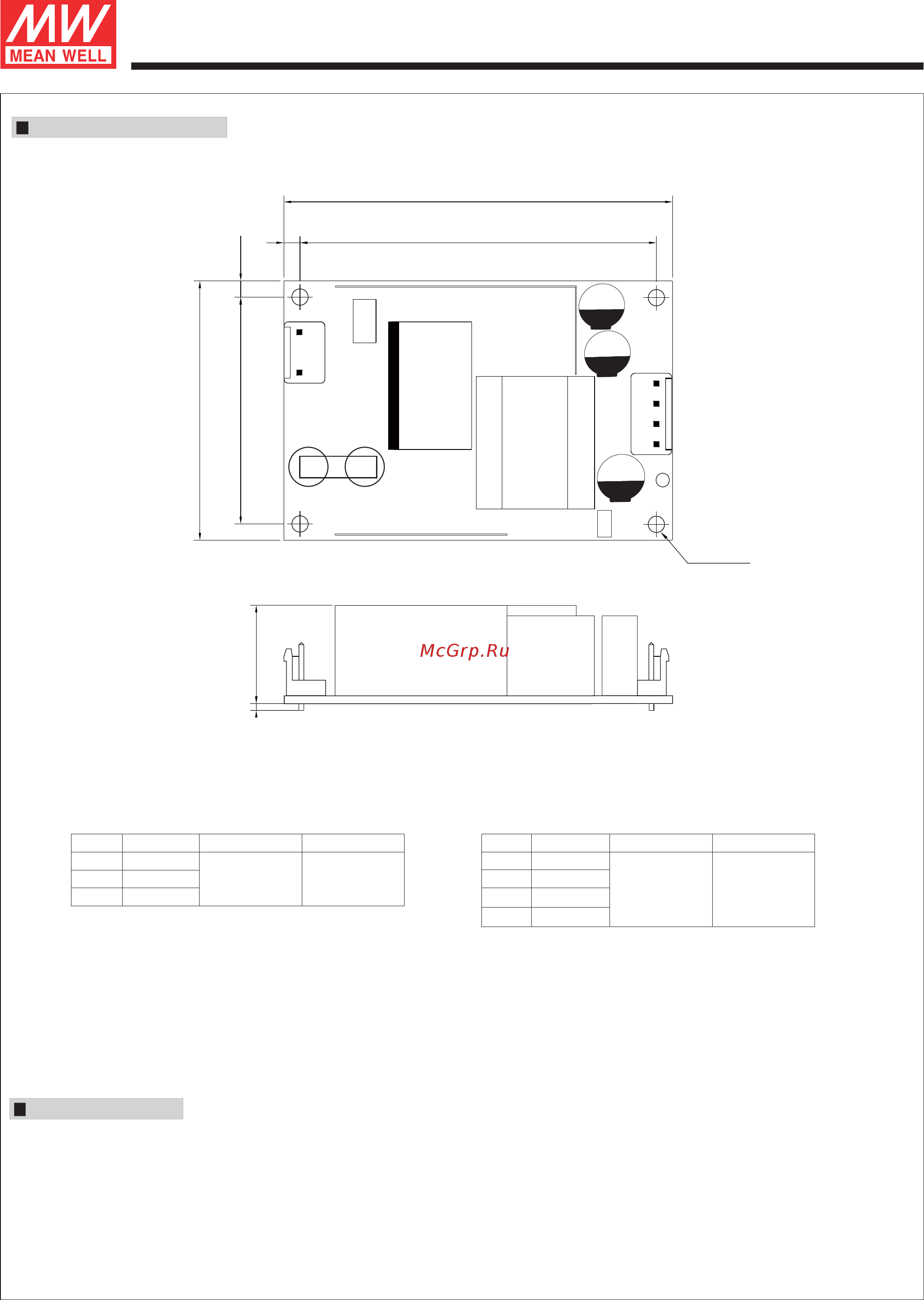

Mechanical Specification
Case No. Unit:mm
AC Input Connector (CN1) : JST B3P-VH or equivalent
Pin No.
1
2
3
Assignment
AC/N
No Pin
AC/L
Mating Housing
JST VHR JST SVH-21T-P1.1
or equivalent or equivalent
Terminal
DC Output Connector (CN2) : JST B2P-VH or equivalent
Pin No.
1
2
Assignment
+V
+V
Mating Housing
JST VHR
or equivalent
Terminal
JST SVH-21T-P1.1
or equivalent
Installation Manual
Please refer to : http://www.meanwell.com/webnet/search/InstallationSearch.html
65W Single Output Medical Type
RPS-65 series
LED
24
3 max.
CN1
3.175
3.175
69.85
76.2
50.8
44.45
CN2
1
2
FS1
AC FUSE
T2A/250V
4- 3.2ψ
3
2
1
3
4
SVR1
HS1
HS100
3-V
4-V
File Name: -SPEC 2015-11-04RPS 65-
