![Daikin EWLD950EJYNN [53/88] Fig 11 refrigeration cycle of the ewld ejynn single circuit](/img/pdf.png)
Daikin EWLD950EJYNN [53/88] Fig 11 refrigeration cycle of the ewld ejynn single circuit
![Daikin EWLD950EJYNN [53/88] Fig 11 refrigeration cycle of the ewld ejynn single circuit](/views2/1673711/page53/bg35.png)

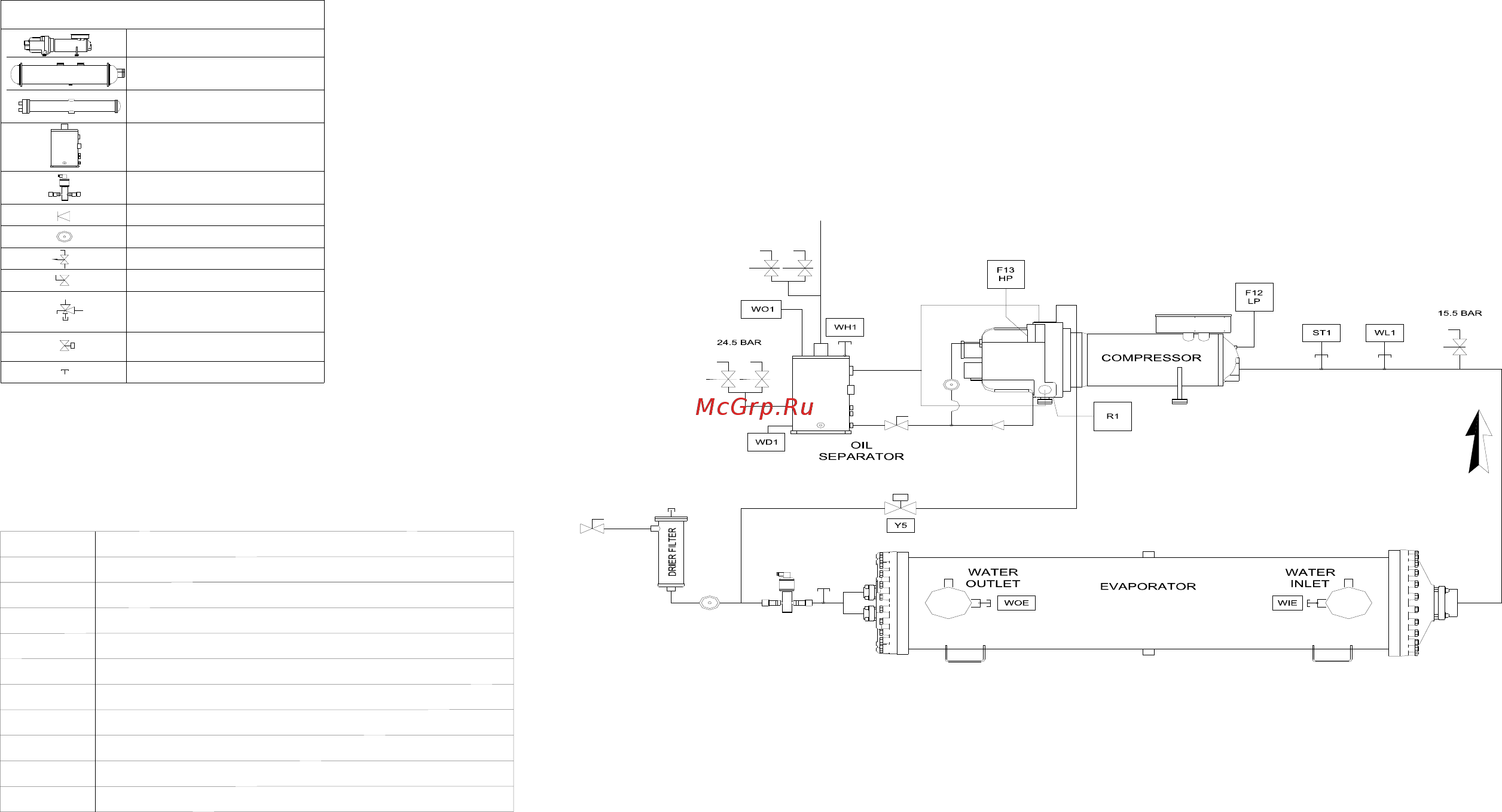

Fig. 11 - Refrigeration cycle of the EWLD - EJYNN Single Circuit
24.5 B AR
LEGEND
EVAPORATOR
CONDENSER
OIL SEPARATOR
COMPRESSOR
CHECK VALVE
SAFETY VALVE
SHUT-OFF VALVE
SOLENOID VALVE
EXPANSION VALVE
FLARE VALVE
SIGHT GLASS
2 WAY ANGLE VALVE
WITH
GAS CHARGE PORT
LOW PRESSURE SWITCH
HIGH PRESSURE SWITCH
F12 LP
F13 HP
LOW PRESSURE TRANSDUCER (-0.5 ÷ 7 bar)
HIGH PRESSURE TRANSDUCER (0 ÷ 30 bar)
LEAVING W ATER TEMPERATURE
ENTERING WATER TEMPERATURE
WH1
WOE
WL1
WIE
OIL TEMPERATUREWD1
ST1 SUCTION TEMPERATURE
LIQUID INJECTION SOL. VALVEY5
OIL PRESSURE TRANDUCERWO1
COMPRESSOR CRANKCASE HEATERR1
DISHARGE
LINE
CONNECTION
LIQUID
LINE
CONNECTION
