D – KIMWC00412-09EN -60/88

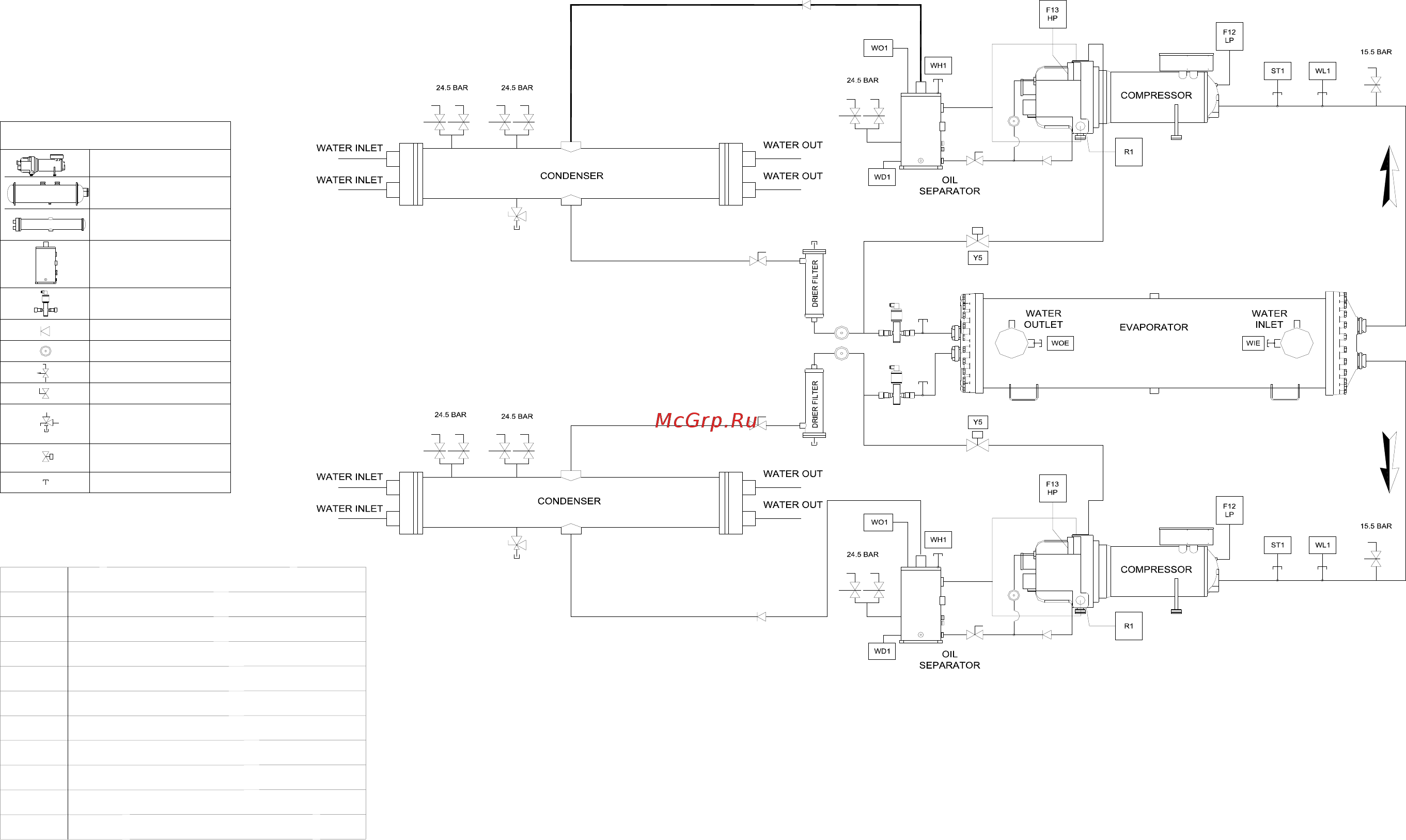

Fig. 18 - Refrigeration cycle of the EWWD Double Circuits – Total heat recovery
LEGEND
EVAPORATOR
CONDENSER
OIL SEPARATOR
COMPRESSOR
CHECK VALVE
SAFETY VALVE
SHUT-OFF VALVE
SOLENOID VALVE
EXPANSION VALVE
FLARE VALVE
SIGHT GLASS
2 WAY ANGLE VALVE
WITH
GAS CHARGE PORT
LOW PRESSURE SWITCH
HIGH PRESSURE SWITCH
F12 LP
F13 HP
LOW PRESSURE TRANSDUCER (-0.5 ÷ 7 bar)
HIGH PRESSURE TRANSDUCER (0 ÷ 30 bar)
LEAVING WATER TEMPERATURE
ENTERING WATER TEMPERATURE
WH1
WOE
WL1
WIE
OIL TEMPERATUREWD1
ST1 SUCTION TEMPERATURE
LIQUID INJECTION SOL. VALVEY5
OIL PRESSURE TRANDUCERWO1
COMPRESSOR CRANKCASE HEATERR1
