D – KIMWC00412-09EN -58/88

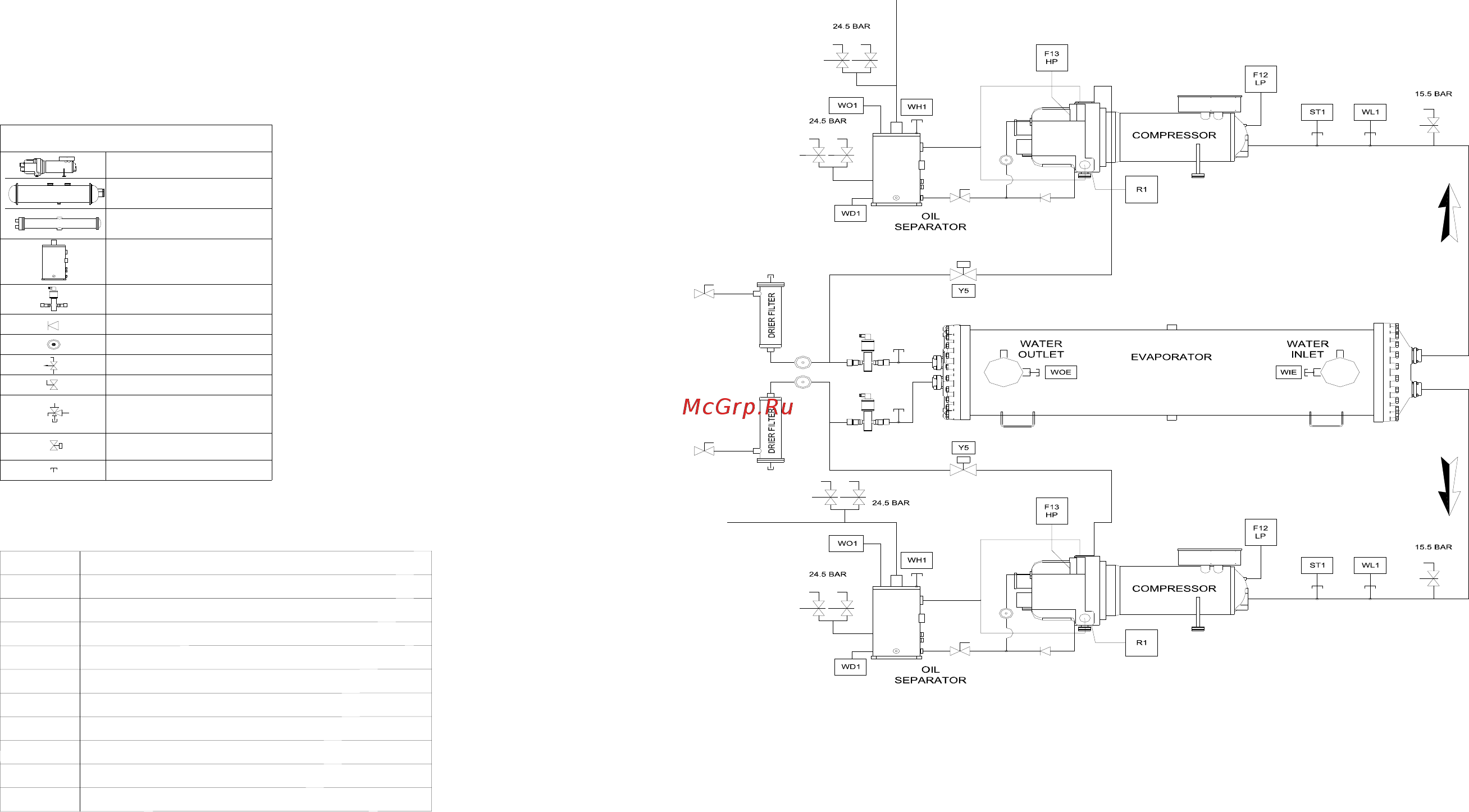

Fig. 16 - Refrigeration cycle of the EWLD - EJYNN Double Circuits
LEGEND
EVAPORATOR
CONDENSER
OIL SEPARATOR
COMPRESSOR
CHECK VALVE
SAFETY VALVE
SHUT-OFF VALVE
SOLENOID VALVE
EXPANSION VALVE
FLARE VALVE
SIGHT GLASS
2 WAY ANGLE VALVE
WITH
GAS CHARGE PORT
LOW PRESSURE SWITCH
HIGH PRESSURE SWITCH
F12 LP
F13 HP
LOW PRESSURE TRANSDUCER (-0.5 ÷ 7 bar)
HIGH PRESSURE TRANSDUCER (0 ÷ 30 bar)
LEAVING WATER TEMPERATURE
ENTERING WATER TEMPERATURE
WH1
WOE
WL1
WIE
OIL TEMPERATUREWD1
ST1 SUCTION TEMPERATURE
LIQUID INJECTION SOL. VALVEY5
OIL PRESSURE TRANDUCERWO1
COMPRESSOR CRANKCASE HEATERR1
DISHARGE
LINE
CONNECTION
LIQUID
LINE
CONNECTION
DISHARGE
LINE
CONNECTION
LIQUID
LINE
CONNECTION
