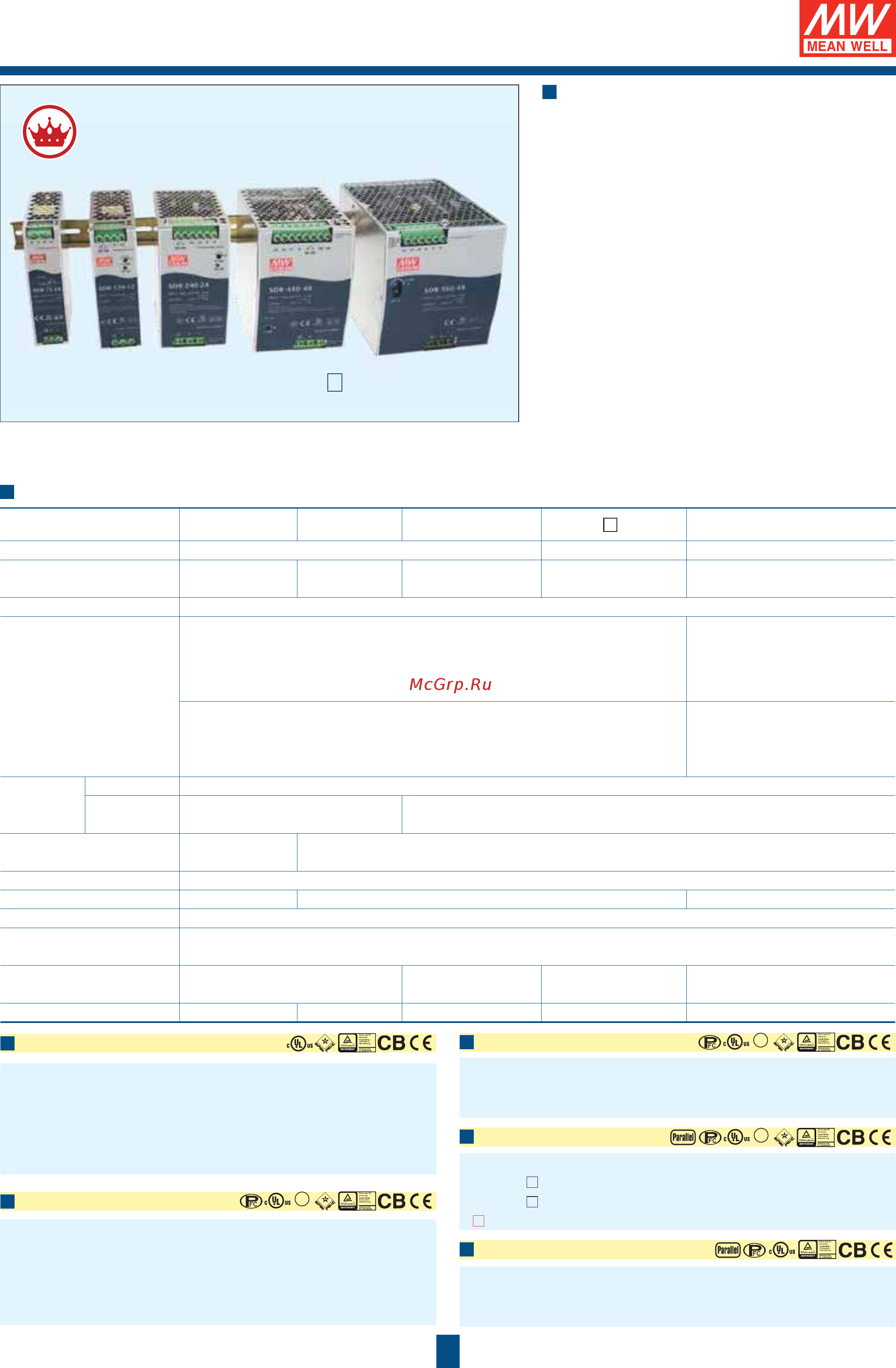

DIN Series

75~960W Slim and High Efficiency

Features

• High efficiency up to 94%

• Universal AC input / Full range (SDR-75/120/240/480);

AC input 180~264VAC only (SDR-960)

• Built-in active PFC function (SDR-120/240/480/960)

• Protections: Short circuit / Overload /

Over voltage / Over temperature

• Cooling by free air convection

• DC output voltage adjustable

• Can be installed on DIN rail TS-35 / 7.5 or 15

• UL508(industrial control equipment) approved

• EN61000-6-2(EN50082-2) industrial immunity level

• Built-in DC OK relay contact (except for SDR-75)

• 150% peak load capability (SDR-75/120/240/480)

130% peak load capability (SDR-960)

• Current sharing up to 3840W (7+1) for SDR-480P

Current sharing up to 3840W (3+1) for SDR-960

• Comply with GL (SDR-120/240/480)

Comply with SEMI F47 (SDR-75/120/240/480)

• 3 years warranty

SDR-240SDR-120SDR-75

SDR-480 P

SDR-960

General Specification (Please refer to www.meanwell.com for detail spec.)

Model No. SDR-75 SDR-120 SDR-240 SDR-480 SDR-960

AC input voltage range 88~264VAC; 124~370VDC 90~264VAC; 127~370VDC 180~264VAC; 254~370VDC

AC inrush current (max.)

Cold start,

50A at 230VAC

Cold start,

70A at 230VAC

Cold start,

55A at 230VAC

Cold start,

80A at 230VAC

Cold start,

50A at 230VAC

DC adjustment range 12V: 12~14V (only for SDR-75/120), 24V: 24~28V, 48V: 48~55V

Overload protection

Normally works within 110%~150% rated output power for 3 seconds and then

shut down output voltage with auto-recovery (re-power on to recover for SDR-75)

Normally works within 105%~130%

rated output power for 3 seconds

and then shut down o/p voltage with

auto-recovery after 30 seconds if the

peak load condition is removed

>150% rated power or short circuit, constant current limiting with auto-recovery

within 2 seconds and may cause to shut down if over 2 seconds

Constant current limiting within

130%~150% rated output power for

more than 3 seconds and then shut

down o/p voltage, re-power on to

recover

Over voltage

protection

Range 14~17V for 12V model(SDR-75/120), 29~33V for 24V model, 56~65V for 48V model

Type

Shut down o/p voltage,

re-power on to recover

Shut down o/p voltage with auto-recovery, or re-power on to recover

Over temperature protection

Re-power on to

recover

Recovers automatically after temperature goes down

Withstand voltage I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC (except for SDR-75)

Working temperature -30~+70°C -25~+70°C (refer to output derating curve) -30~+70°C

Safety standards UL508, TUV EN60950-1, GL (SDR-120/240/480) approved

EMC standards

EN55011(SDR-120/240/480), EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,

EN61000-6-2 (EN50082-2), EN61204-3; SEMI (SDR-75/120/240/480), GL (SDR-120/240/480)

Connection

(screw DIN terminal)

I/P: 3 poles, O/P: 4 poles I/P: 3 poles, O/P: 6 poles I/P: 3 poles, O/P: 8 poles I/P:3 poles, O/P: 6 poles

Dimension (WxHxD)(mm) 32x125.2x102 40x125.2x113.5 63x125.2x113.5 85.5x125.2x128.5 110x125.2x150

SDR-120 Series

SDR-75 Series

SDR-480 Series

SDR-240 Series

SDR-960 Series
