AC/L
+V
-V
AC INPUT
AC/N
DC OUTPUT
T2A/250V
(A)
(B)
(H)
(G)(F)
(I)
(D)
(E)
(C)
0.177"(4.5mm)
0.138'(3.5mm)
0.07"(1.8mm)
0.041" (1.05mm)
To Chassis Grounding
4-0.12"(3.0mm)
Dia Mounting Hole s
3
4
2
1
CN2
T2A/250V
FGFG
T2A/250V
2
3
1
CN1
0.15"
(3.8mm)
0.15"(3.8mm)
1.7"(43.2mm)
0.76"(19.3mm)
2"(50.8mm)
3.2"(81.3mm)
3.5"(88.9mm)
38

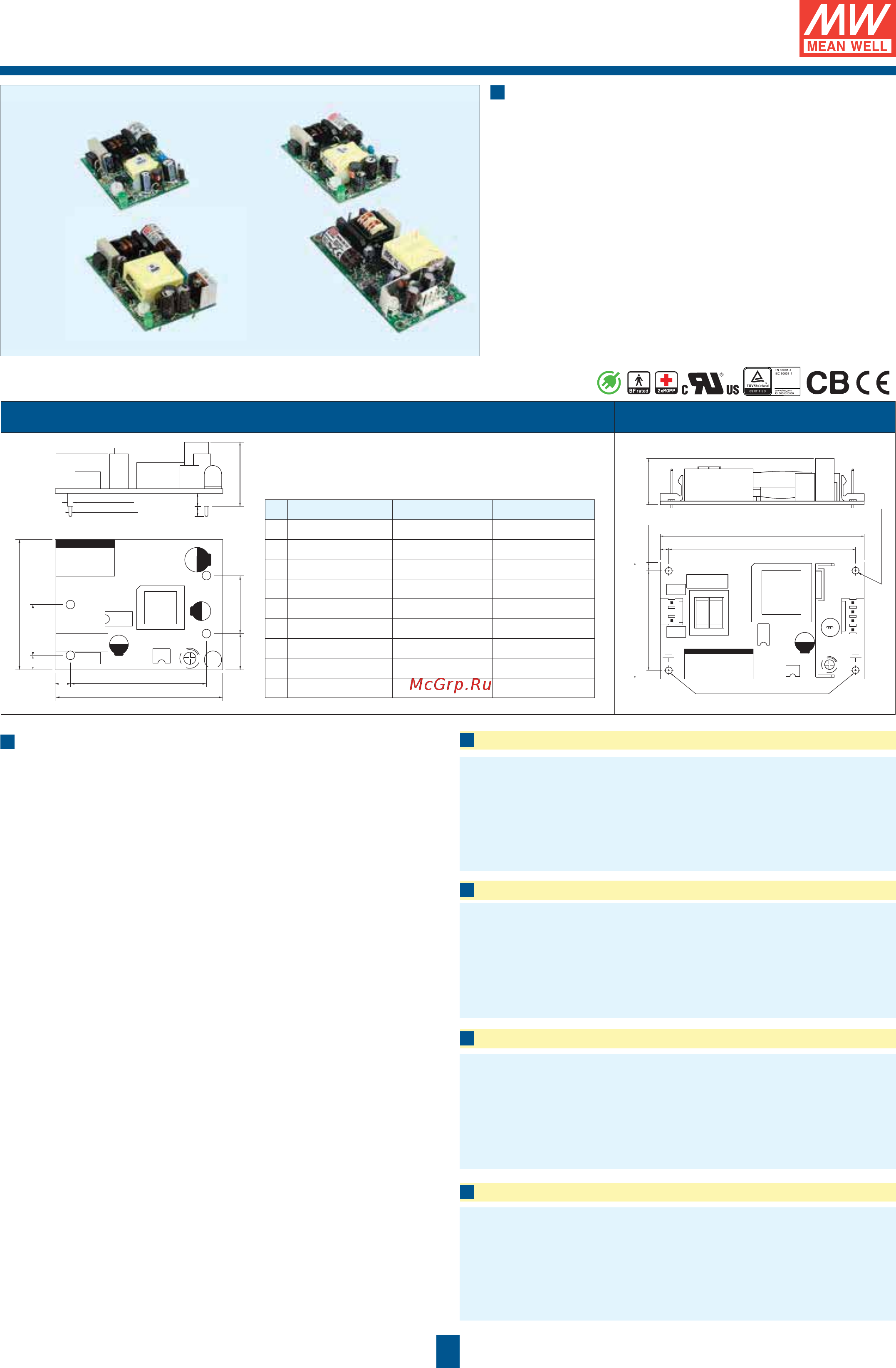

Green Open Frame
5~20W Medical On Board Type
38
5W 10W 15W
A 1.77" (45mm) 1.77" (45mm) 1.89" (48mm)
B 0.689" (17.5mm) 0.689" (17.5mm) 0.788" (20mm)
C 0.21" (5.33mm) 0.22" (5.5mm) 0.157" (4mm)
D 1.85" (47mm) 2.13" (54mm) 2.441" (62mm)
E 2.28" (57.9mm) 2.56" (65mm) 2.75" (69.85mm)
F 0.491" (12.47mm) 0.491" (12.47mm) 0.492" (12.5mm)
G 0.789" (20.04mm) 0.789" (20.04mm) 0.906" (23.01mm)
H 0.196" (5mm) 0.196" (5mm) 0.157" (4mm)
I
0.75" (19.1mm) 0.87" (22mm) 0.87" (22mm)
Features
• Universal AC input / Full range
• Medical safety approved (2xMOPP)
• Suitable for BF application with appropriate system
consideration
• Protections:
Short circuit / Overload / Over voltage / Over temperature
• /RZOHDNDJHFXUUHQWȝ$:
• No load power consumption <0.5W (<0.75W for 20W models)
• Isolation class II (5~15W), class I (20W)
• On-board type version available for 20W (optional)
• Cooling by free air convection
• Meet industrial, IT safety requirements
• 3 years warranty
5W
57.9x 45x 19.1 mm
General Specification
5W NFM-05
Model No. Output Tol. R&N Effi.
NFM-05-3.3 3.3V, 0~1.25A ±2% 80mV 67%
NFM-05-5 5V, 0~1.00A ±2% 80mV 71%
NFM-05-12 12V, 0~0.42A ±1% 150mV 73%
NFM-05-15 15V, 0~0.33A ±1% 150mV 74%
NFM-05-24 24V, 0~0.23A ±1% 240mV 76%
10W NFM-10
15W NFM-15
10W
65x 45x 22 mm
15W
69.85x 48x 22 mm
20W
88.9x 50.8x 19.3 mm
AC input voltage range ..........
Frequency range ...................
AC inrush current (max.) .......
DC adjustment range ............
Overload protection ..............
Over voltage protection .........
Over temp. protection ...........
Setup, rise, hold up time .......
Withstand voltage .................
Working temperature .............
Safety standards ..................
EMC standards .....................
Connection ...........................
Packing ...............................
85~264VAC; 120~370VDC
47-440Hz
Cold start, 25A at 115VAC, 45A at 230VAC
( NFM-15: 30A at 115VAC, 50A at 230VAC )
( NFM-20: 30A at 115VAC, 65A at 230VAC )
±10% rated output voltage
>105% hiccup mode, auto recovery
115%~135% rated output voltage, shut off,
AC recycle to re-start
Shutdown o/p voltage, recovers automatically
after temperature goes down
1)0PVPVPV#9$&
1)0PVPVPV#9$&
1)0PVPVPV#9$&
I/P-O/P: 4kVAC, 1 minute
NFM-5/10/15: -20~+70°C
NFM-20: -20~+60°C
ANSI/AAMI ES60601-1, TUV EN60601-1,
UL60950-1 (NFM-15) approved
EN55011, EN55032 class B, EN61000-3-2,3
EN61000-4-2,3,4,5,6,8,11, EN55024,
EN60601-1-2, EN61204-3 Medical level,
criteria A
4 industrial pins for 5~15W
3P/4P/3.96mm pitch, Molex 41791-03/04 for 20W
0.03kg ; 120pcs / 4.6kg / 0.97CUFT(NFM-05)
0.045kg ; 120pcs / 6.4kg / 0.97CUFT(NFM-10)
0.065kg ; 120pcs / 8.8kg / 0.97CUFT(NFM-15)
0.09kg ; 105pcs / 10.5kg / 0.97CUFT(NFM-20)
NFM-05 / 10 / 15 Series NFM-20 Series
Model No. Output Tol. R&N Effi.
NFM-10-3.3 3.3V, 0~2.50A ±2% 150mV 66%
NFM-10-5 5V, 0~2.00A ±2% 150mV 74%
NFM-10-12 12V, 0~0.85A ±1% 150mV 78%
NFM-10-15 15V, 0~0.67A ±1% 150mV 79%
NFM-10-24 24V, 0~0.42A ±1% 240mV 79%
Model No. Output Tol. R&N Effi.
NFM-15-3.3 3.3V, 0~3.50A ±2% 80mV 73%
NFM-15-5 5V, 0~3.00A ±2% 80mV 76%
NFM-15-12 12V, 0~1.25A ±1% 150mV 78%
NFM-15-15 15V, 0~1.00A ±1% 150mV 79%
NFM-15-24 24V, 0~0.63A ±1% 240mV 81%
20W NFM-20
Model No. Output Tol. R&N Effi.
NFM-20-3.3 3.3V, 0~4.50A ±2% 80mV 71%
NFM-20-5 5V, 0~4.40A ±2% 80mV 75%
NFM-20-12 12V, 0~1.80A ±1% 150mV 81%
NFM-20-15 15V, 0~1.40A ±1% 150mV 83%
NFM-20-24 24V, 0~0.92A ±1% 240mV 84%
