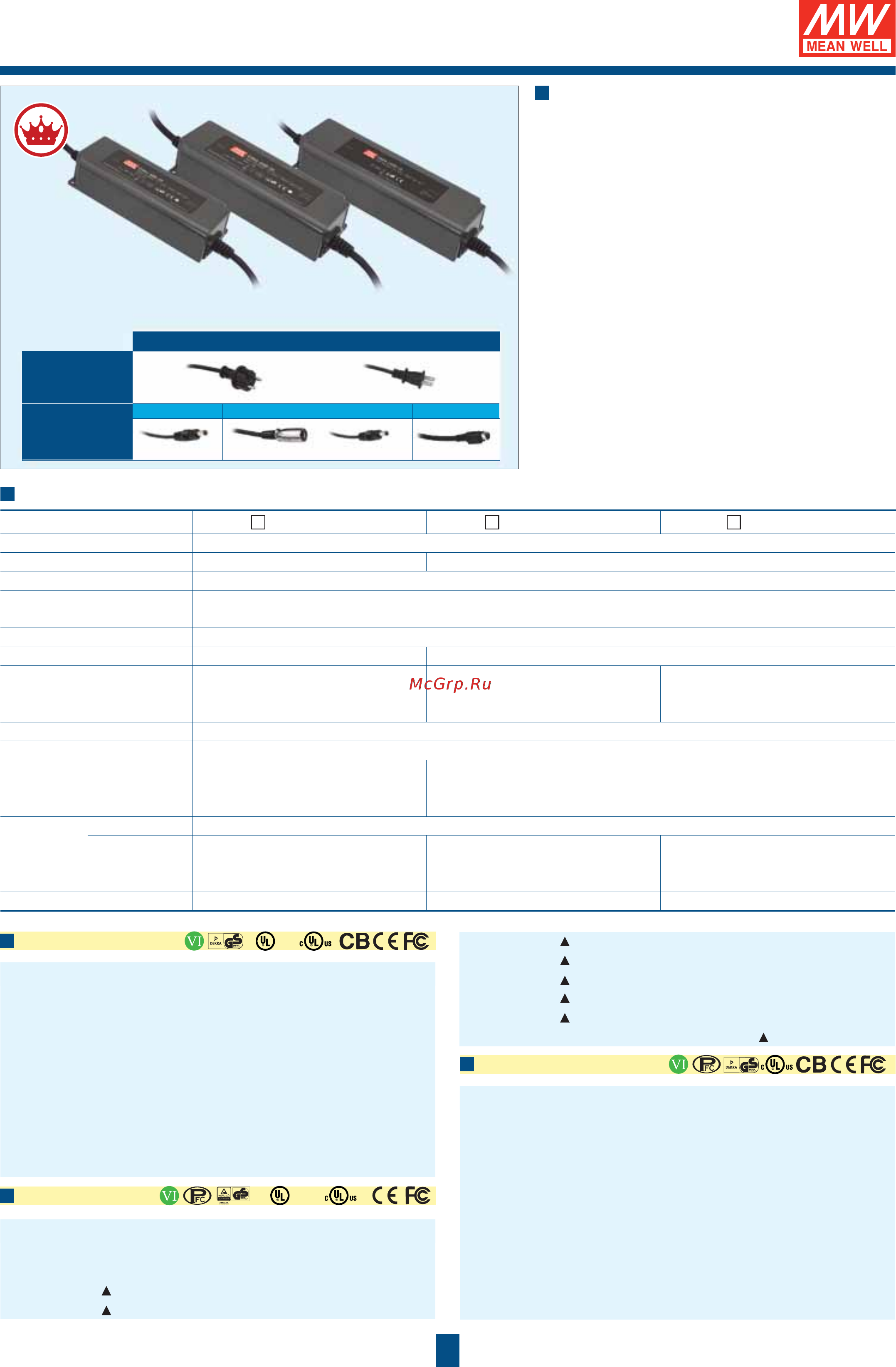

Moistureproof Adaptor

60~120W Single Output

E-Type

U-Type

AC Input Plug

DC Output Plug

Model No. Output Tol. R&N Effi.

OWA-90 -12 12V, 0~7.5A ±4.0% 150mV 89%

OWA-90 -15 15V, 0~6A ±4.0% 150mV 90%

OWA-90 -20- 20V, 0~4.5A ±4.0% 150mV 90%

OWA-90 -24- 24V, 0~3.75A ±3.0% 150mV 90%

OWA-90 -30- 30V, 0~3A ±3.0% 200mV 90%

OWA-90 -36- 36V, 0~2.5A ±2.0% 200mV 91%

OWA-90 -42- 42V, 0~2.15A ±1.0% 250mV 91%

OWA-90 -48- 48V, 0~1.88A ±1.0% 250mV 91%

OWA-90 -54- 54V, 0~1.67A ±1.0% 350mV 91%

= E / U ; E: European 2P, U: American 2P ; =Blank(R7B)/P1M

Model No. Output Tol. R&N Effi.

OWA-60 -12 12V, 0~5A ±4.0% 150mV 88%

OWA-60 -15 15V, 0~4A ±4.0% 150mV 89%

OWA-60 -20 20V, 0~3A ±4.0% 150mV 89%

OWA-60 -24 24V, 0~2.5A ±3.0% 150mV 90%

OWA-60 -30 30V, 0~2A ±3.0% 200mV 90%

OWA-60 -36 36V, 0~1.67A ±2.0% 200mV 90%

OWA-60 -42 42V, 0~1.5A ±1.0% 250mV 90%

OWA-60 -48 48V, 0~1.25A ±1.0% 250mV 91%

OWA-60 -54 54V, 0~1.12A ±1.0% 350mV 91%

= E / U ; E: European 2P, U: American 2P

Model No. Output Tol. R&N Effi.

OWA-120E-12 12V, 0~9.6A ±4.0% 150mV 87.5%

OWA-120U-12 12V, 0~10A ±4.0% 150mV 87.5%

OWA-120 -15 15V, 0~8A ±4.0% 150mV 89.0%

OWA-120 -20 20V, 0~6A ±4.0% 150mV 90.0%

OWA-120 -24 24V, 0~5A ±4.0% 150mV 90.5%

OWA-120 -30 30V, 0~4A ±3.0% 200mV 90.0%

OWA-120 -36 36V, 0~3.4A ±2.0% 200mV 90.0%

OWA-120 -42 42V, 0~2.9A ±1.0% 250mV 90.5%

OWA-120 -48 48V, 0~2.5A ±1.0% 250mV 90.5%

OWA-120 -54 54V, 0~2.3A ±1.0% 350mV 90.5%

= E / U ; E: European 2P, U: American 2P

Features

General Specification (Please refer to www.meanwell.com for detail spec.)

Model No. OWA-60 OWA-90 OWA-120

AC input voltage range 90~264VAC; 127~370VDC (180~264VAC ; 254~370VDC for OWA-120E)

AC inrush current (max.) Cold start, 65A at 230VAC Cold start, 60A at 230VAC

Overload protection E-Type: 105~115% hiccup mode, auto-recovery; U-Type: 95~108% constant current limiting, auto-recovery

Over voltage protection 110%~140% rated output voltage, re-power on to recover

Over temperature protection Shut down output voltage, re-power on to recover

Withstand voltage I/P-O/P: 3.75KVAC

Working temperature

-35~+70°C -40~+70°C (refer to output derating curve)

Safety standards

E-Type:

DEKRA EN60335-1(except for

48~54V), EN61558-1, EN61558-2-16

approved; U-Type: UL8750 listed approved

E-Type:

TUV EN60335-1(except for

42~54V), EN61558-1, EN61558-2-16

approved; U-Type: UL8750 listed approved

E-Type:

DEKRA EN60335-1(except for

48~54V), EN61558-1, EN61558-2-16

approved; U-Type: UL8750 listed approved

EMC standards E-Type: EN55032 class B, EN55014, EN61000-3-2,-3; U-Type: FCC Part 15

Standard

plug

Input E-Type: CEE 7/7 EU plug; U-Type: NEMA 1-15P plug

Output 2.1øx5.5øx11mm / C+, tuning fork type

E-Type: XLR 4P, male type;

U-Type: P1M, 2.5øx5.5øx11mm / C+, tuning fork type (OWA-90U 20~54V only) or

R7B, Power DIN 4P with lock type

Length of

cable

Input E-Type: 150cm of H05RN-F 1.0mm

x2C; U-Type: 150cm of SVT 18AWGx2C

Output

E-Type: 30cm of H05RN-F 1.0mm

x2C

U-Type: 30cm of UL1185 16AWG x2C

E-Type: 30cm of H05RN-F 1.0mm

x2C

U-Type: 30cm of UL2464 18AWG x4C for R7B;

30cm of UL2464 16AWGx2C for P1M

E-Type: 30cm of H07RN-F 1.5mm

x2C

U-Type: 30cm of UL2464 18AWG x4C

Dimension (LxWxH)(mm) 130x 53x 35 171x 63x 37.5 191x 63x 37.5

• IP67 design for power body

• Universal AC input / Full range (except for OWA-120E)

AC input 180~264VAC only (OWA-120E)

• No load power consumption <0.15W

• Energy efficiency Level VI

• E-Type: meet CoC Version 5 (OWA-60E/90E);

comply with EU ErP

U-Type: Comply with EISA 2007/DoE and NRCan

• Built-in active PFC function (OWA-90/120)

• Class II power (without earth pin)

• High efficiency up to 91%

• Fanless design, cooling by free air convection

• Fully enclosed plastic case

• Protections: Short circuit / Over current /

Over voltage / Over temperature

• Suitable for household appliances or the electronic

applications at highly dusty or damp environment

• 5 years warranty

OWA-90 Series

OWA-60 Series

OWA-120 Series

(E-Type)

OWA-90E / U

OWA-120E / U

OWA-60E / U

OWA-90U/120UOWA-90E/120E OWA-60UOWA-60E

(U-Type)

(E-Type)
