58

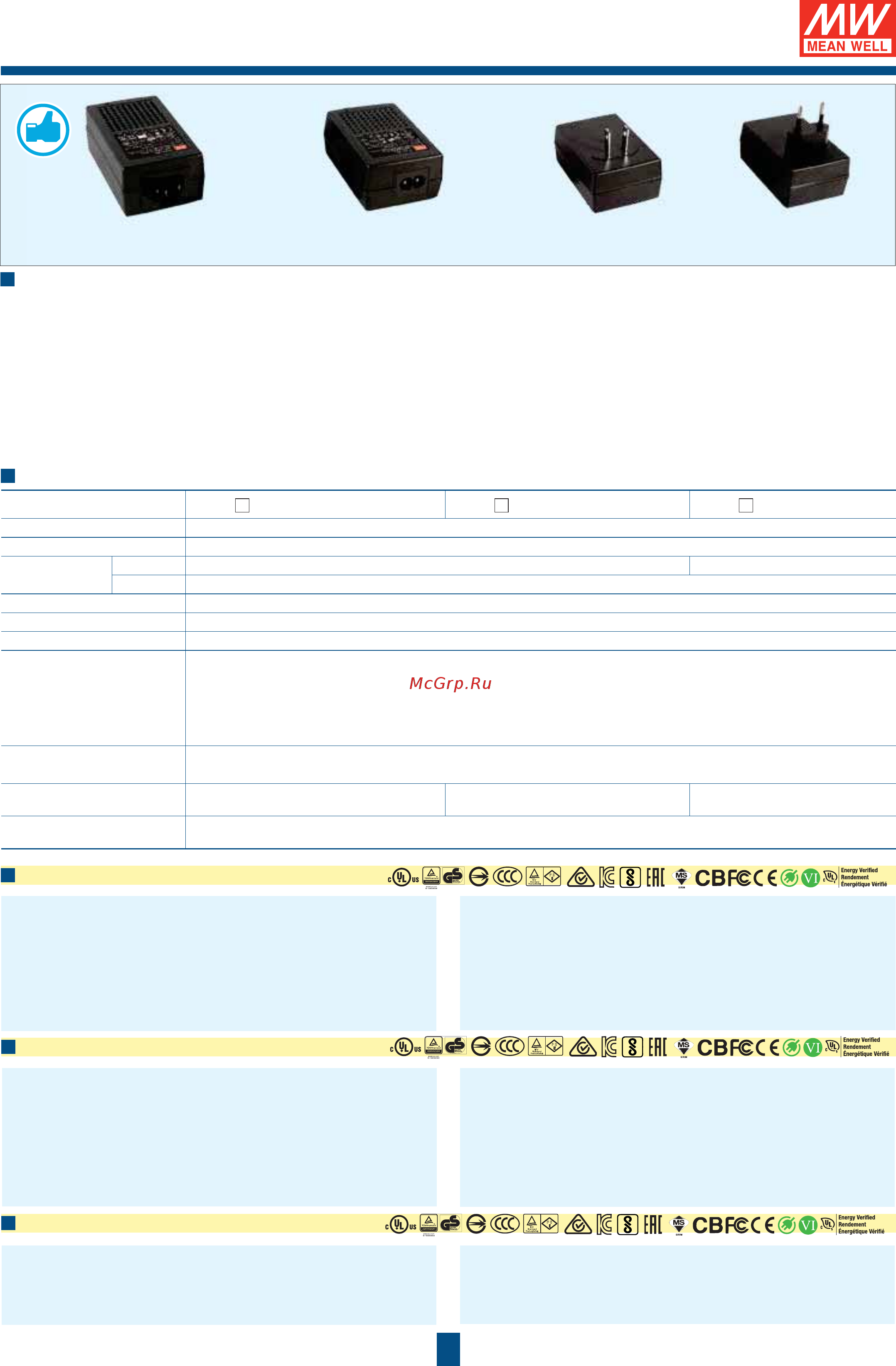

Industrial Adaptor
18~36W Desktop & Wall-mounted Type
Features
• Global certificates
• Universal AC input / Full range
• No load power consumption < 0.075W
• Energy efficiency Level VI
• Comply with EISA 2007 / DoE, NRCan, AU/NZ
MEPS, Korea K-MEPS, EU ErP and CoC Version 5
• -30~+70
o
C wide range working temperature
• Class
II power (without earth pin) for B/U/E type
Class I power (with earth pin) only for A type
GST18/25A
93x 54x 36 mm
General Specification (Please refer to www.meanwell.com for detail spec.)
Order No. GST18 GST25 GST36
AC input voltage range 85~264VAC
AC inrush current (max.) Cold start, 70A at 230VAC
Overload
protection
Range 110%~150% rated output power 110%~250% rated output power
Type Hiccup mode, auto-recovery
Over voltage protection 110%~140% rated output voltage, clamp by zener diode
Withstand voltage I/P-O/P: 4242VDC, 1 minute
Working temperature
-30~+70°C (refer to output derating curve)
Safety standards
A-Type: UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS60950.1,
KC K60950-1, BIS IS13252, EAC TP TC004; SIRIM MS IEC60950-1(optional)
approved
B-Type: UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS60950.1,
KC K60950-1, BIS IS13252, EAC TP TC004; SIRIM MS IEC60950-1(optional) approved
U-Type: UL60950-1, CSA22.2, BSMI CNS14336, EAC TP TC004 approved
E-Type: TUV EN60950-1, EAC TP TC004; SIRIM MS IEC60950-1(optional) approved
EMC standards
EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11(A/B/E type); FCC part 15 class B,
CNS13438 class B(A/B/U type); GB9254(A/B type)
Length of output cable
120cm of UL1185, 16AWG for 5~12V ;
180cm of UL1185, 18AWG for 15~48V
100cm of UL2468, 16AWG for 5~12V;
180cm of UL1185, 18AWG for 15~48V
100cm of UL2468, 16AWG
Standard DC plug
(refer to page 62 for DC plug list)
P1J: 2.1øx5.5øx11mm / C+, tuning fork type
Desktop / Wall-mounted — 18W
Order No. Output Tol. R&N Effi.
GST18
Ƒ05-P1J
5V, 0~3.00A ±5% 80mV 81.0%
GST18
Ƒ07-P1J
7.5V, 0~2.00A ±5% 80mV 85.0%
GST18
Ƒ09-P1J
9V, 0~2.00A ±5% 80mV 85.0%
GST18
Ƒ12-P1J
12V, 0~1.50A ±3% 80mV 86.0%
GST18
Ƒ15-P1J
15V, 0~1.20A ±3% 100mV 87.0%
GST18
Ƒ18-P1J
18V, 0~1.00A ±3% 150mV 88.0%
Order No. Output Tol. R&N Effi.
GST18
Ƒ24-P1J
24V, 0~0.75A ±2% 150mV 88.0%
GST18
Ƒ28-P1J
28V, 0~0.64A ±2% 150mV 88.5%
GST18
Ƒ48-P1J
48V, 0~0.375A ±2% 150mV 89.0%
Ƒ= A / B / U / E
Class I — A: IEC320-C14
Class II — B: IEC320-C8, U: American 2P, E: European 2P
GST18/25/36B
79x 54x 33 mm
GST18/25/36U
79x 54x 33 mm
GST18/25/36E
79x 54x 33 mm
• Protections: Short circuit / Overload / Over voltage
• Fully enclosed plastic case
• LED indicator for power on
• Pass LPS
• Approvals:
A type: UL/CUL/TUV/BSMI/CCC/PSE/RCM/KC/BIS/EAC/SIRIM/CB/FCC/CE
B type: UL/CUL/TUV/BSMI/CCC/PSE/RCM/KC/BIS/EAC/SIRIM/CB/FCC/CE
U type: UL/CUL/BSMI/EAC/CB/FCC
E type: TUV/EAC/SIRIM/CB/CE
• 3 years warranty
Desktop / Wall-mounted — 25W
Order No. Output Tol. R&N Effi.
GST25
Ƒ05-P1J
5V, 0~4.00A ±5% 80mV 81.5%
GST25
Ƒ07-P1J
7.5V, 0~2.93A ±5% 80mV 84.5%
GST25
Ƒ09-P1J
9V, 0~2.55A ±5% 80mV 85.0%
GST25
Ƒ12-P1J
12V, 0~2.08A ±3% 80mV 86.5%
GST25
Ƒ15-P1J
15V, 0~1.66A ±3% 100mV 87.0%
GST25
Ƒ18-P1J
18V, 0~1.38A ±3% 100mV 87.0%
Order No. Output Tol. R&N Effi.
GST25
Ƒ24-P1J
24V, 0~1.04A ±2% 150mV 88.0%
GST25
Ƒ28-P1J
28V, 0~0.89A ±2% 150mV 88.0%
GST25
Ƒ48-P1J
48V, 0~0.52A ±2% 150mV 89.0%
Ƒ= A / B / U / E
Class I — A: IEC320-C14
Class II — B: IEC320-C8, U: American 2P, E: European 2P
Order No. Output Tol. R&N Effi.
GST36
Ƒ24-P1J
24V, 0~1.50A ±2% 150mV 88.5%
GST36
Ƒ48-P1J
48V, 0~0.75A ±2% 200mV 90.0%
Ƒ=B / U / E ; B: IEC320-C8; U: American 2P, E: European 2P
Order No. Output Tol. R&N Effi.
GST36
Ƒ05-P1J
5V, 0~4.30A ±5% 90mV 82.0%
GST36
Ƒ09-P1J
9V, 0~3.11A ±5% 90mV 86.0%
GST36
Ƒ12-P1J
12V, 0~3.00A ±3% 100mV 87.5%
TUV
Rhei nland
Prod uct Safe ty
P S
E
TUV
Rhei nland
Prod uct Safe ty
P S
E
TUV
Rhei nland
Prod uct Safe ty
P S
E
Wall-mounted — 36W
(optional)
(optional)
(optional)
