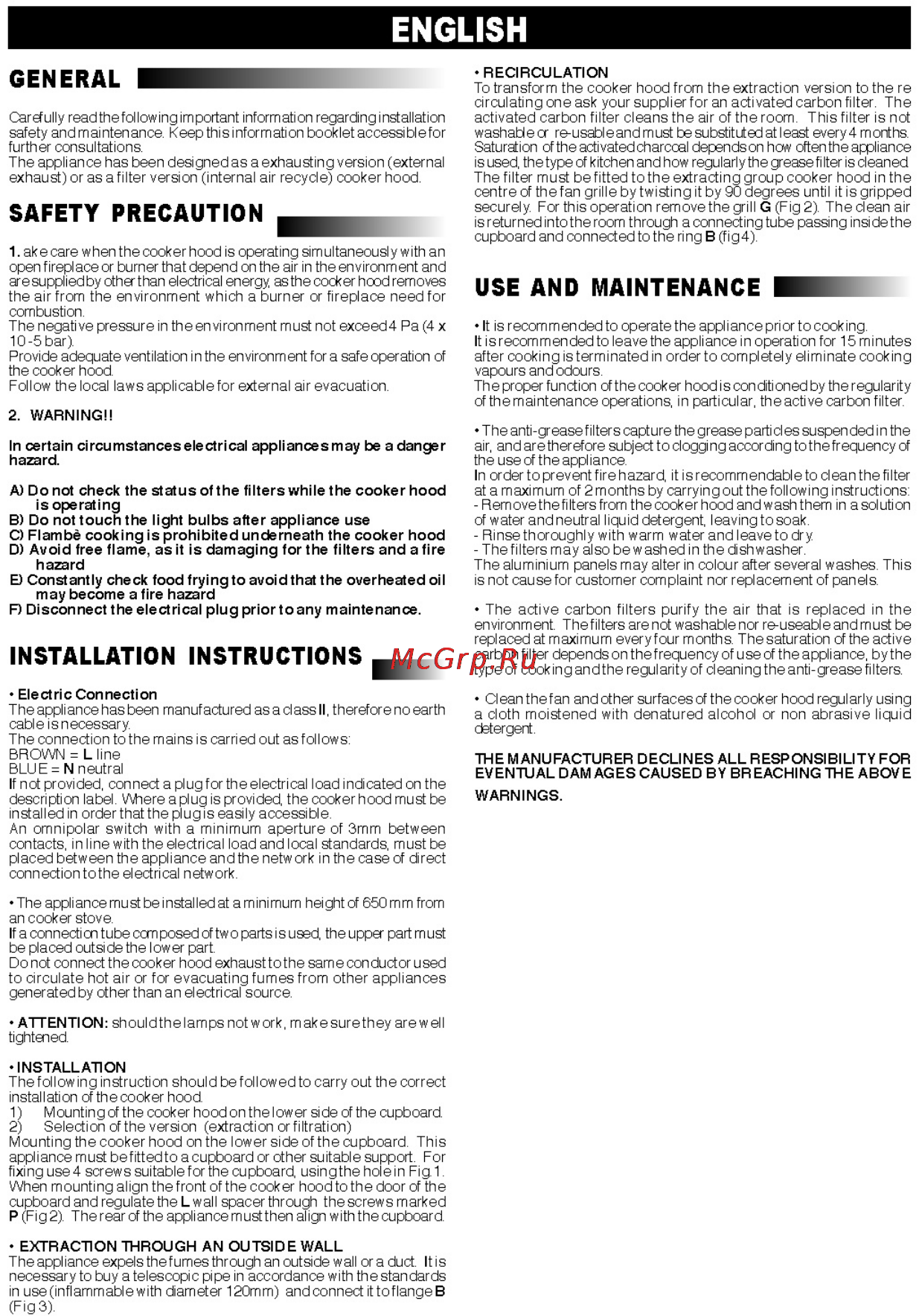

ENGLISH GENERAL Carefully read the fol lowing important information regarding installation safety and maintenance Keep this information booklet access blefor further consultations The appliance has been designed as a exhausting version external exhaust or as a filter version internal air recycle cooker hood SAFETY PRECAUTION RECIRCULATION To transform the cooker hood from the extraction version to the re circulating one ask your supplier for an activated carbon filter The activated carbon filter cleans the air of the room This filter is not washable cr re usableand must be substituted at least every 4 months Saturation of the activated charccal depends on hew often the appliance is used the type of kitchen and how regularly the grease filter is cleaned The filter must be fitted to the extracting group cooker hood in the centre of the fan grille by twisting it by 90 degrees until it is gripped securely For this operation remove the grill G Fig 2 The clean air is returned into the room through a connecting tube passing inside the cupboard and connected to the ring B fig4 1 ake care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and aresuppliedby other than electrical energy as the cocker hood removes the air from the environment which a burner or fireplace need for combustion The negative pressure in the environment must not exceed4 Pa 4 x 10 5 bar Provide adequate ventilation in the environment for a safe operation of the cooker hood Follow the local laws applicable for external air evacuation USE AND MAINTENANCE It is recommended to operate the appliance prior to cooking It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours The proper function of the cooker hood is conditioned by the regularity of the maintenance operations in particular the active carbon filter 2 WARNING In certain circumstances electrical appliances may be a danger hazard A Do not check the status of the filters while the cooker hood is operating B Do not touch the light bulbs after appliance use C Flambe cooking is prohibited underneath the cooker hood D Avoid free flame as it is damaging for the filters and a fire hazard E Constantly check food frying to avoid that the overheated oil may become a fire hazard F Disconnect the electrical plug prior to any maintenance INSTALLATION INSTRUCTIONS _ Electric Connection The appliance has been manufactured as a class II therefore no earth cable is necessary The connection to the mains is carried out as follows BROWN L line BLUE N neutral If not provided connect a plug for the electrical load indicated on the description label Where a plug is provided the cooker hood must be in st al I ed in order that the pl u g i s easi ly access bl e An ornnipolar switch with a rninirnurn aperture of 3rnrn between contacts in line with the electrical load and local standards must be placed between the appliance and the network in the case of direct connection to the electrical network The appliance must be installed at a minimum height of 650 mrn from an cooker stove If a connecti cn tube ccrn posed of tw o parts i s used the upper part m ust be placed outside the I ower part Do not connect the cooker hood exhausttothe same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source ATTENTI ON sh oul d th e I arn ps not w or k m ak e sure th ey are w el I tightened INSTALLATION The following instruction should be followed to carry out the correct installation of the cooker hood 1 Mounting of the cooker hood on the lower side of the cupboard 2 Selection of the version extraction or filtration Mounting the cooker hood on the lower side of the cupboard This appliance must befittedto acupboard or other suitable support For fixi ng use 4 screw s suitable for the cu pboard usingtheholeinFig 1 When mounting align the front of the cooker hood to the door of the cupboard and regulate the L wall spacer through the screws marked P Fig 2 The rear of the appliance must then align with the cupboard EXTRACTION THROUGH AN OUTSIDE WALL The appliance expels thefumes through an outside wall or a duct It is necessary to buy a telescopic pipe in accordance with the standards in use inflammable with diameter 120mrn and connect it to flange B Fig3 The anti greasefilters capture the grease particles suspended in the air and are therefore subject to clogging according to the frequency of the use of the appliance In order to prevent fire hazard it is recommendable to clean the filter at a rnaxirnurn of 2 months by carrying out the following instructions Remove thefiIters from the cooker hood and wash them in a solution of water and neutral liquid detergent leaving to soak Rinse thoroughly with warm water and leave to dry The filters rnay also be washed in the dishwasher The aluminium panels rnay alter in colour after several washes This is not cause for customer complaint nor replacement of panels The active carbon filters purify the air that is replaced in the environment Thefilters are not washable nor re useable and must be replaced at maximum every four months The saturation of the active carbon filter depends on thefrequency of use of the appliance by the type of cookingandthe regularity of cleaning the anti grease filters Clean thefan and other surfaces of the cooker hood regularly using a cloth moistened with denatured alcohol or non abrasive liquid detergent THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EV ENTU AL D AM AG ES CAUSED B Y BR E ACHI NG TH E ABOV E WARNINGS
