D-EOMWC01405-18EN
28/47
EWWD_DZ – EWWH_DZ
5.2.2.1 BMS Enable
The last enable signal is coming through the high level interface, that is from a Building Management System. The unit can
be enabled/disabled from a BMS connected to the UC using a communication protocol. In order to control the unit over
the network, the Control Source setpoint must be turned in “Network” (default is Local) and Network En Sp must be
“Enable”(4.2.2). If disabled, check with your BAS company how the chiller is operated.

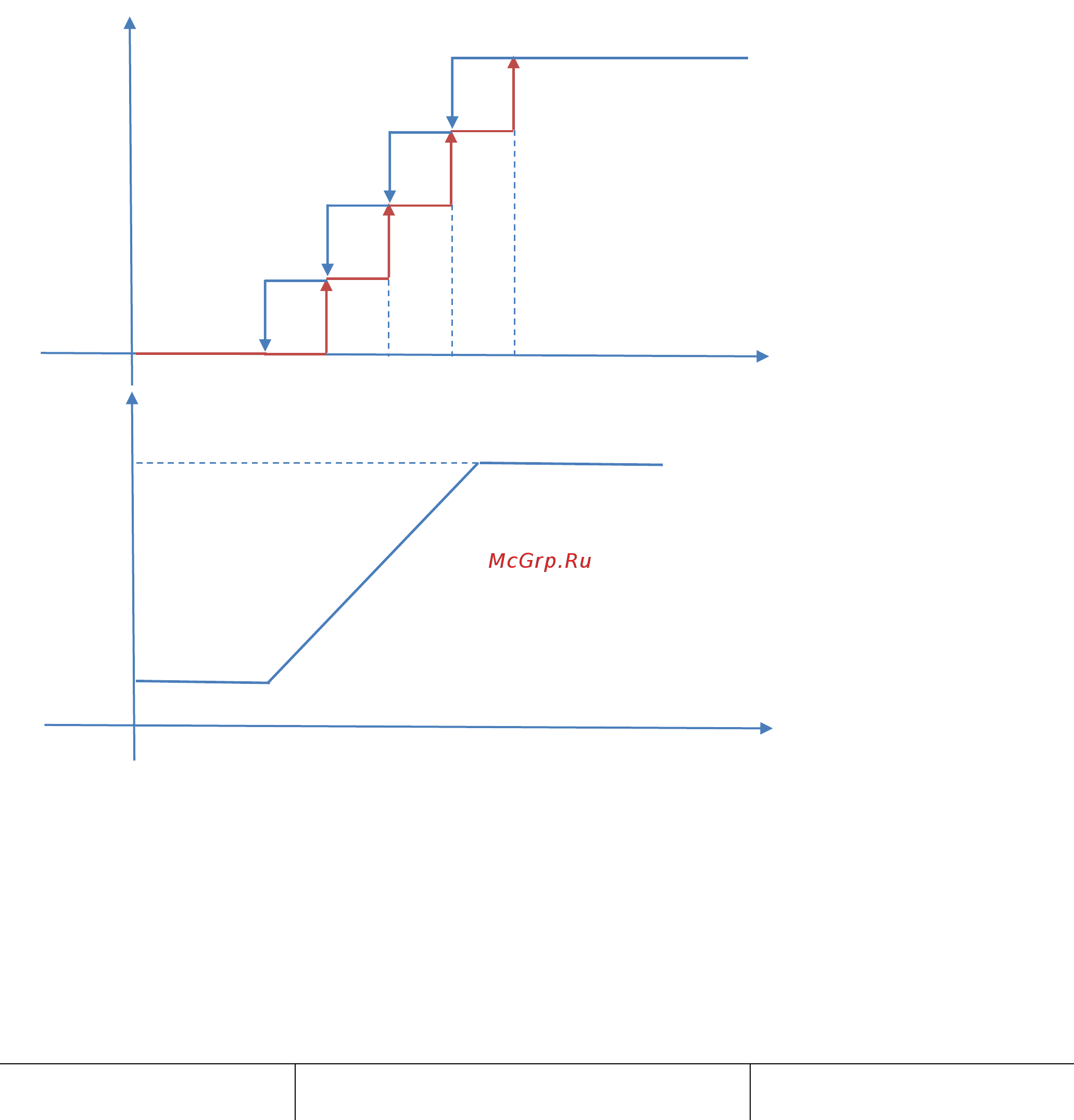

5.3 Condensation Control (W/C units only)
Condenser Entering Water Temperature is controlled in order to achieve best chiller efficiency within compressor envelope
limits. To do this, application manages the outputs for the control of the following condensation devices:
Tower fan #1…4 by mean of 4 on/off signals. Tower fan # state is on when Cond EWT is greater than the Cond
EWT setpoint. Tower fan # state is off when Cond EWT is lower than Setpoint – Diff. The picture below represents
an example of activation and deactivation sequence based on Cond EWT present value relation with set points
and differentials listed in 4.2.4.
1 Vfd by mean of a modulating 0-10V signal generated through a PID controller. The following graph is an example
of the modulating signal behavior in case of a PID control supposed to be purely proportional.
T
Cond
T
Cond
V
Fan
Stage
VFD Min Speed
VFD Max Speed
