MEAN WELL MSP-1000-12 Data sheet онлайн
■ Model Encoding / Order Information
Output voltage
Output wattage
Series name
■ Description

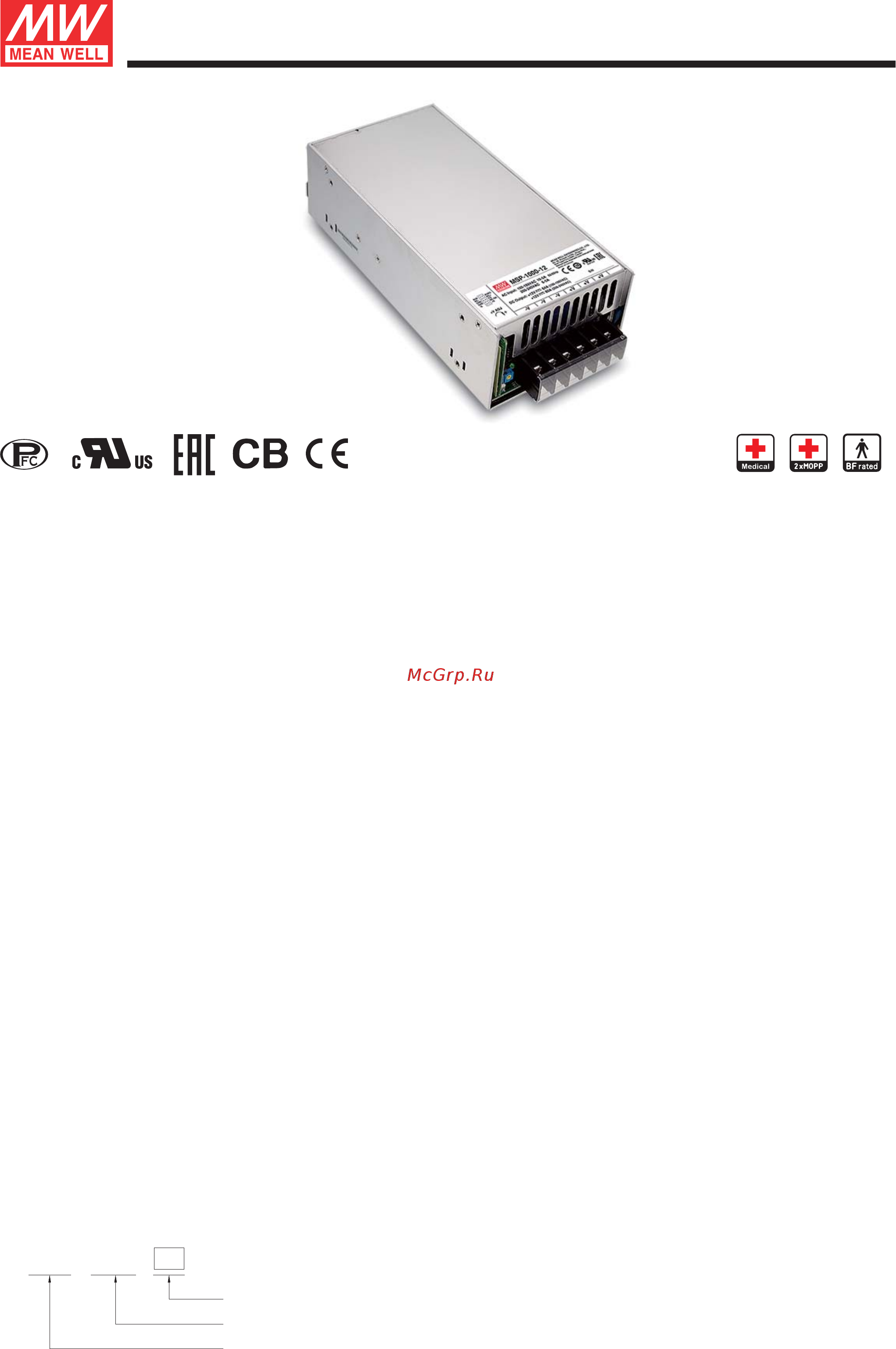

MSP-1000 is a single output enclosed type AC/DC power supply delivering 1000 W output power for a
wide range of medical applications. The entire series operates for 90~264 VAC input voltage and supplies
different output voltages between 12 V and 48 V that can satisfy the demands for all kinds of medical
equipments. Meanwhile, the circuitry design meets the international medical standards, 2x MOPP,
suitable for medical electrical devices. MSP-1000 is equipped with various built-in functions such as
auxiliary power, remote sense and remote on-off control, offering vast design flexibility for the purpose
of using control solutions.
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 94%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage /
Over temperature
Medical safety approved (2 MOPP)×
Suitable for BF application with appropriate system
consideration
Built-in cooling fan ON-OFF control
Current sharing up to 4000W (3+1)
Built-in DC OK signal
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.75W (Note.6)
5 years warranty
■ Features
MSP --1000 12
1000W Single Output Medical Type
MSP-1000 series
File Name:MSP-1000-SPEC 2018-09-21
MRI scanne
CT and PET scanner
Medical bed
Surgery table
Medical measurement device
■ Applications
Safety: ANSI/AAMI ES60601-1
IEC60601-1
EMC: EN55032
■ Certificates
IEC60601-1
ANSI/AAMI ES60601-1
