1000W Single Output Medical Type
File Name:MSP-1000-SPEC 2018-09-21
MSP-1000 series
1
2
9
10

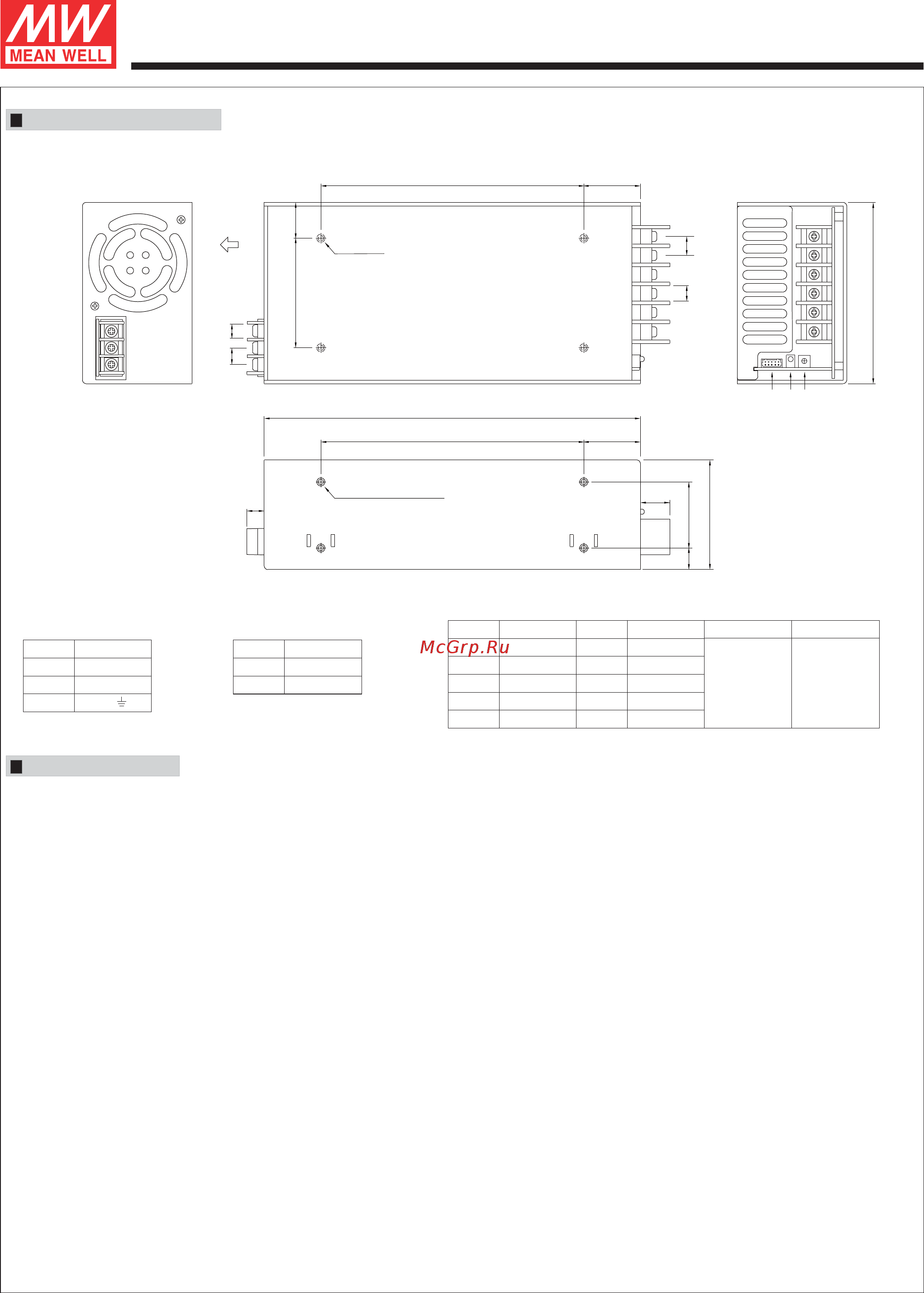

Mechanical SpecificationMechanical Specification
Case No. 977 Unit:mm
AC Input Terminal Pin No.
Assignment
DC Output Terminal Pin No.
Assignment
Pin No. Pin No.
1 1~3
3
2 4~6
Assignment Assignment
AC/N -V
AC/L +V
FG
CN100
LED
(VoADJ.)SVR1
Pin No. Pin No.
7
6,8
5
3
2
1
9
4
10
Assignment
-S
+S
DC-OK
GND
CS
Assignment
RC-
RC+
AUX
AUXG
Mating Housing Terminal
or equivalent or equivalent
Connector Pin No.Assignment(CN100) : HRS DF11-10DP-2DS or equivalent
HRS DF11-10DS
HRS DF11-**SC
105
18max.
119.2
O/P
1
2
3
4
5
6
63.5
3
2
1
I/P
4-M4 L=6
12max.
8.2
63.5
20.75
10
218
32.8152.4
8-M4 L=4 (Both Sides)
32.8
38.312.5
152.4
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
Air flow
direction
