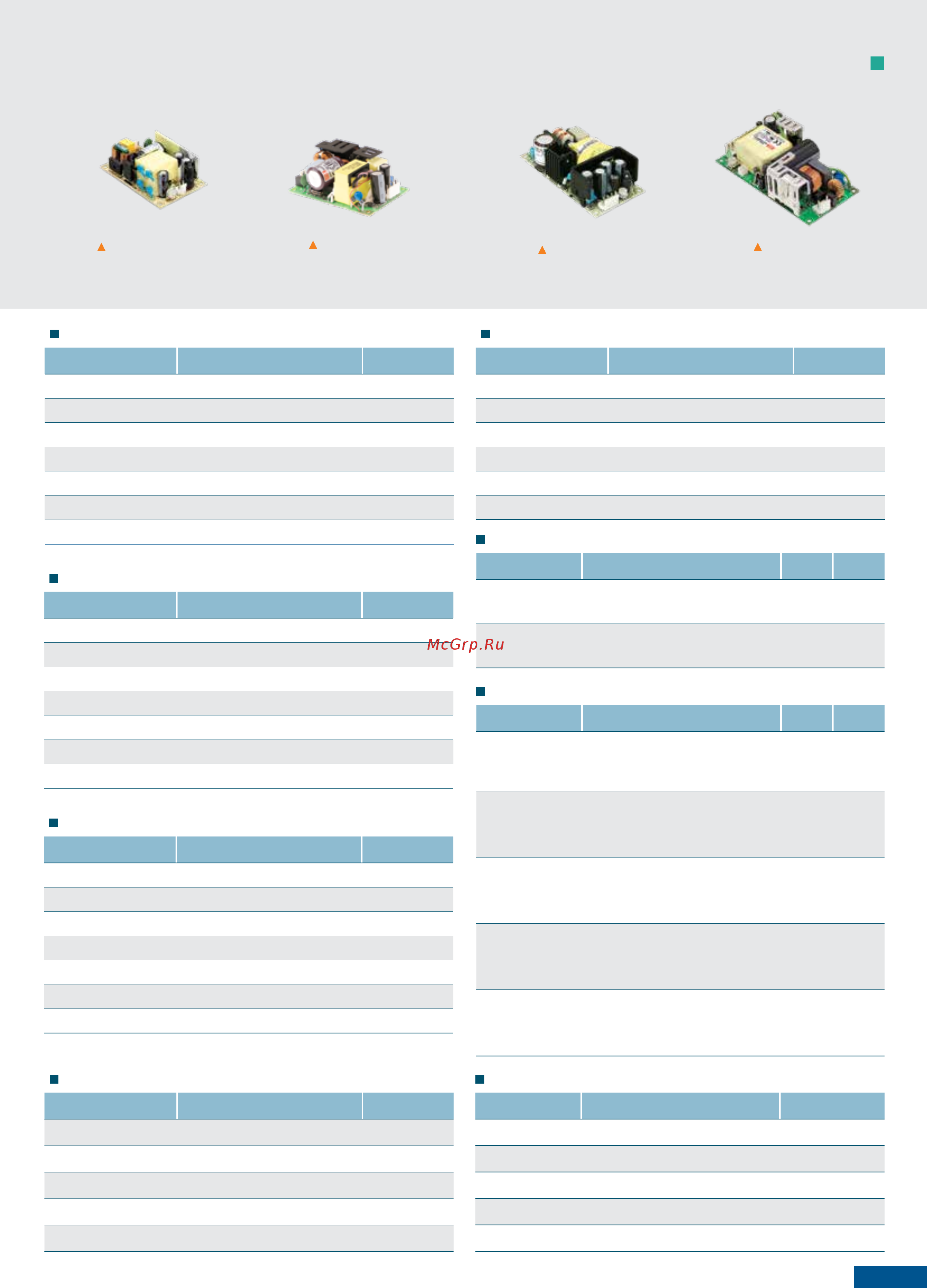

RPS-30/45/65
76.2x 50.8x 24mm
(3”x2”)
RPS-120S
76.2x 50.8x 28mm
(3”x2”)
RPS-120
101.6x 50.8x 29mm
(4”x2”)
RPS/D/T
□
-60
101.6x 50.8x 29mm
(4”x2”)
30W: Single Output ─ Class II
Model No. Output (Rated/Peak) Effi.
RPS-30-3.3 3.3V, 6A / 6.60A 80.0%
RPS-30-5 5V, 6A / 6.60A 82.0%
RPS-30-7.5 7.5V, 4A / 4.40A 84.0%
RPS-30-12 12V, 2.5A / 2.75A 88.0%
RPS-30-15 15V, 2A / 2.20A 89.0%
RPS-30-24 24V, 1.25A / 1.375A 89.5%
RPS-30-48 48V, 0.625A / 0.687A 92.0%
65W: Single Output ─ Class II
Model No. Output (Rated/Peak) Effi.
RPS-65-3.3
3.3V, 10A / 11A
80.0%
RPS-65-5 5V, 10A / 11A 84.0%
RPS-65-7.5 7.5V, 8A / 8.80A 85.0%
RPS-65-12 12V, 5.42A / 5.96A 88.0%
RPS-65-15 15V, 4.34A / 4.77A 89.0%
RPS-65-24 24V, 2.71A / 2.98A 90.0%
RPS-65-48
48V, 1.36A / 1.49A
91.0%
120W: Single Output ─ Class I or II
Model No. Output (Rated/Peak) Effi.
RPS-120S-12 12V, 9.5A / 11.8A 91.0%
RPS-120S-15 15V, 7.6A / 9.5A 92.0%
RPS-120S-24 24V, 5A / 6.25A 93.0%
RPS-120S-27 27V, 4.44A / 5.55A 94.0%
RPS-120S-48
48V, 2.5A / 3.125A
93.5%
45W: Single Output ─ Class II
Model No. Output (Rated/Peak) Effi.
RPS-45-3.3 3.3V, 8A / 8.80A 80.5%
RPS-45-5 5V, 8A / 8.80A 83.0%
RPS-45-7.5 7.5V, 5.4A / 5.95A 85.0%
RPS-45-12 12V, 3.8A / 4.18A 88.0%
RPS-45-15 15V, 3A / 3.30A 89.0%
RPS-45-24 24V, 1.9A / 2.10A 90.0%
RPS-45-48 48V, 0.94A / 1.03A 91.0%
60W: Single Output ─ Class I
Model No. Output (Rated/Peak) Effi.
RPS-60-3.3 3.3V, 10A / 11A 74.0%
RPS-60-5 5V, 10A / 11A 79.0%
RPS-60-12 12V, 5A / 5.5A 83.0%
RPS-60-15 15V, 4A / 4.4A 84.0%
RPS-60-24 24V, 2.5A / 2.75A 85.0%
RPS-60-48 48V, 1.25A / 1.375A 86.0%
120W: Single Output ─ Class I or II
Model No. Output (Convection/10CFM) Effi.
RPS-120-12 12V, 7A / 10A 89.0%
RPS-120-15 15V, 5.6A / 8A 89.0%
RPS-120-24 24V, 3.5A / 5A 90.0%
RPS-120-27 27V, 3.15A / 4.5A 90.0%
RPS-120-48 48V, 1.75A / 2.5A 91.0%
60W: Dual Output ─ Class I
Model No. Output Effi. Max.
RPD-60A 5V, 0.5~5.5A 78% 54W
12V, 0.1~2.2A
RPD-60B 5V, 0.5~3.85A 82% 59W
24V, 0.1~1.65A
60W: Triple Output ─ Class I
Model No. Output Effi. Max.
RPT-60A 5V, 0.5~4.4A 77% 51W
12V, 0.1~2.2A
-5V, 0.1~0.55A
RPT-60B 5V, 0.5~4.4A 78% 55W
12V, 0.1~2.2A
-12V, 0.1~0.55A
RPT-60C 5V, 0.5~4.4A 79% 55W
15V, 0.1~1.65A
-15V, 0.1~0.55A
RPT-60D 5V, 0.5~3.85A 79% 52W
24V, 0.1~1.1A
12V, 0.1~0.55A
RPT-6003 3.3V, 0.5~5.5A 75% 44W
5V, 0.3~3.3A
12V, 0.1~0.77A
AC/DC Open Frame Type 30~500W
