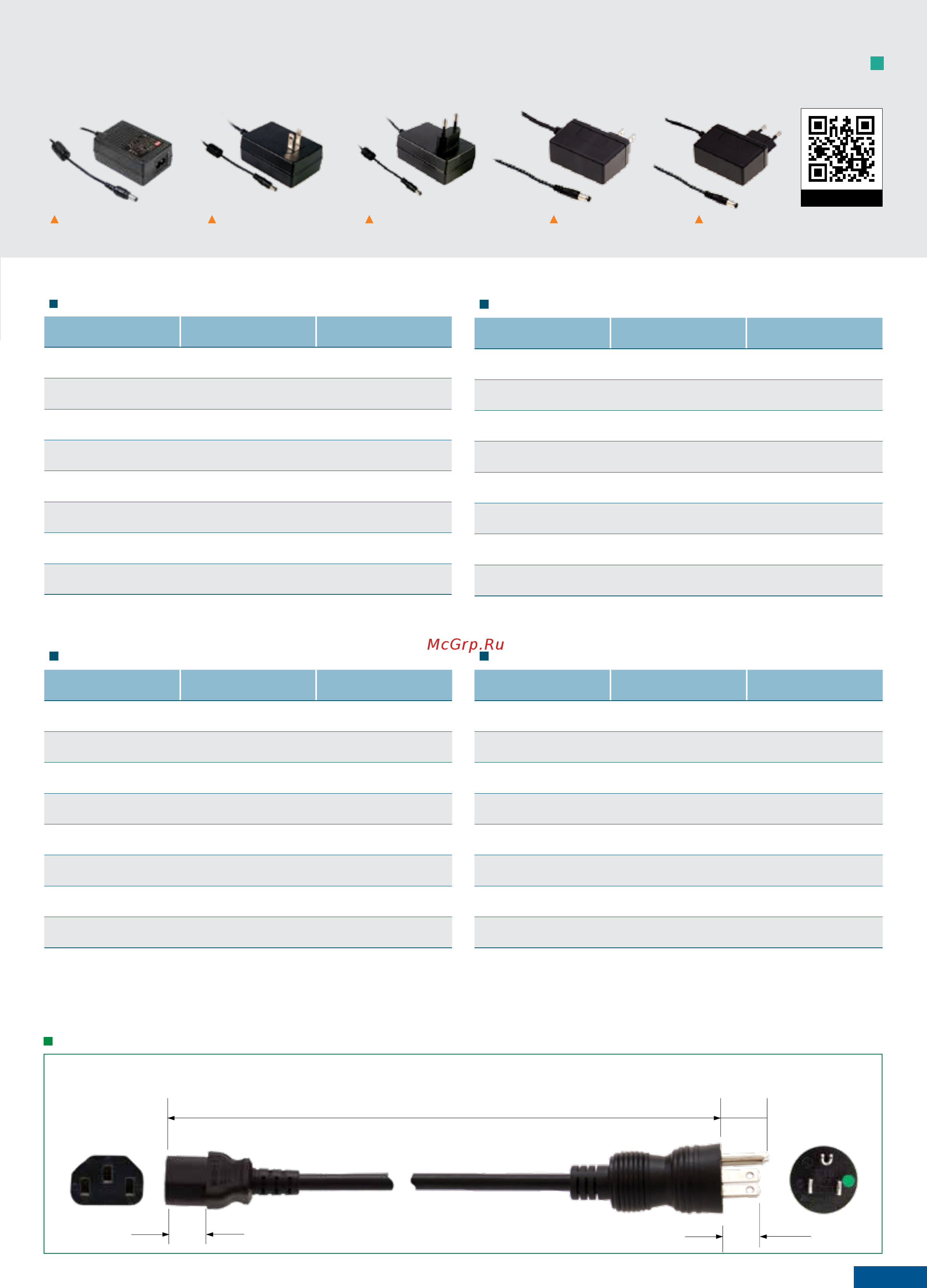

![MEAN WELL RS-25-24 [11/32] A c d c e x t e r n a l a d a p t o r 6 2 2 0 w](/views2/1677224/page11/bgb.png)
~
~
1830±20mm
21.4mm
max.
15.8mm
min.
18mm
Wall-mounted (Class II) ─ 60W
Order No. Output Effi.
GSM60
□05-P1J
5V, 6.00A 80.0%
GSM60
□07-P1J
7.5V, 6.00A 85.0%
GSM60
□09-P1J
9V, 5.50A 87.0%
GSM60
□12-P1J
12V, 4.50A 88.0%
GSM60
□15-P1J
15V, 4.00A 88.0%
GSM60
□18-P1J
18V, 3.33A 88.0%
GSM60
□24-P1J
24V, 2.50A 88.0%
GSM60
□48-P1J
48V, 1.25A 90.0%
□=U/E ; U: American 2P, E: European 2P
Order No.: YP18+YC12
Medical / Hospital Grade AC Power Cord
Desktop/Wall-mounted (Class II) ─ 36W
Order No. Output Effi.
GSM36
□05-P1J
5V, 4.50A 80%
GSM36
□07-P1J
7.5V, 4.32A 83%
GSM36
□09-P1J
9V, 4.00A 84%
GSM36
□12-P1J
12V, 3.00A 86%
GSM36
□15-P1J
15V, 2.40A 87%
GSM36
□18-P1J
18V, 2.00A 87%
GSM36
□24-P1J
24V, 1.50A 87%
GSM36
□48-P1J
48V, 0.75A 88%
□=B/U/E ; B: IEC320-C8, U: American 2P, E: European 2P
Desktop/Wall-mounted (Class II) ─ 25W
Order No. Output Effi.
GSM25
□05-P1J
5V, 4.00A 80%
GSM25
□07-P1J
7.5V, 2.93A 83%
GSM25
□09-P1J
9V, 2.77A 84%
GSM25
□12-P1J
12V, 2.08A 86%
GSM25
□15-P1J
15V, 1.66A 86%
GSM25
□18-P1J
18V, 1.38A 86%
GSM25
□24-P1J
24V, 1.04A 87%
GSM25
□48-P1J
48V, 0.52A 88%
□=B/U/E ; B: IEC320-C8, U: American 2P, E: European 2P
Desktop/Wall-mounted (Class II) ─ 18W
Order No. Output Effi.
GSM18□05-P1J
5V, 3.00A 80%
GSM18□07-P1J
7.5V, 2.00A 83%
GSM18□09-P1J
9V, 2.00A 84%
GSM18□12-P1J
12V, 1.50A 85%
GSM18□15-P1J
15V, 1.20A 85.5%
GSM18□18-P1J
18V, 1.00A
86%
GSM18□24-P1J
24V, 0.75A
87%
GSM18□48-P1J
48V, 0.375A
88%
□=B/U/E ; B: IEC320-C8, U: American 2P, E: European 2P
AC/DC External Adaptor 6~220W
GSM60U
75.5x 32x 47.5mm
GSM60E
75.5x 32x 47.5mm
GSM18E/25E/36E
79x 54x 33mm
GSM18B/25B/36B
79x 54x 33mm
GSM18U/25U/36U
79x 54x 33mm
GSM Introduction
