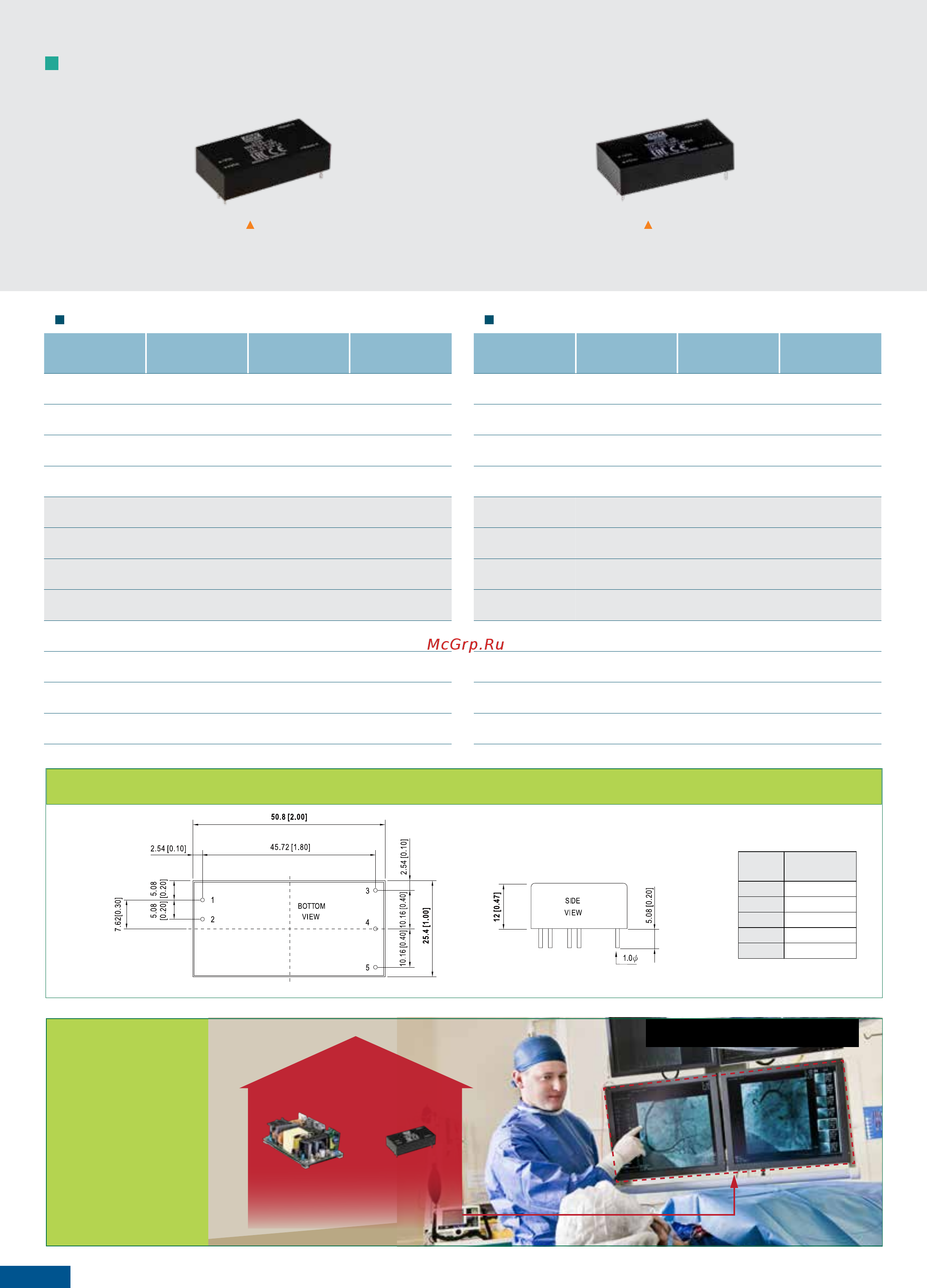

MDS15
50.8x 25.4x12mm
(2”x 1”x 0.47”)
MDS20
50.8x 25.4x12mm
(2”x 1”x 0.47”)
DC/DC Converter 1~20W
MDS15/20
Unit: mm(inch)
Pin No. Pin-Out
1 +Vin
2 -Vin
3 +Vout
4 No Pin
5 - Vout
MDS15: 15W Single Output
Model No. Vin Output Effi.
MDS15A-05 12V (9~18V) 5V, 3000mA 85%
MDS15A-12 12V (9~18V) 12V, 1250mA 88%
MDS15A-15 12V (9~18V) 15V, 1000mA 87%
MDS15A-24 12V (9~18V) 24V, 625mA 85%
MDS15B-05 24V (18~36V) 5V, 3000mA 87%
MDS15B-12 24V (18~36V) 12V, 1250mA 87%
MDS15B-15 24V (18~36V) 15V, 1000mA 86%
MDS15B-24 24V (18~36V) 24V, 625mA 87%
MDS15C-05 48V (36~75V) 5V, 3000mA 86%
MDS15C-12 48V (36~75V) 12V, 1250mA 87%
MDS15C-15 48V (36~75V) 15V, 1000mA 89%
MDS15C-24 48V (36~75V) 24V, 625mA 88%
MDS20: 20W Single Output
Model No. Vin Output Effi.
MDS20A-05 12V (9~18V) 5V, 4000mA 86%
MDS20A-12 12V (9~18V) 12V, 1670mA 89%
MDS20A-15 12V (9~18V) 15V, 1333mA 88%
MDS20A-24 12V (9~18V) 24V, 833mA 88%
MDS20B-05 24V (18~36V) 5V, 4000mA 86%
MDS20B-12 24V (18~36V) 12V, 1670mA 88%
MDS20B-15 24V (18~36V) 15V, 1333mA 88%
MDS20B-24 24V (18~36V) 24V, 833mA 89%
MDS20C-05 48V (36~75V) 5V, 4000mA 86%
MDS20C-12 48V (36~75V) 12V, 1670mA 89%
MDS20C-15 48V (36~75V) 15V, 1333mA 88%
MDS20C-24 48V (36~75V) 24V, 833mA 90%
Application
Upgrade System Safety
+
AC/DC PSU
at most 100μA
DC/DC CONVERTER
5μA max.
Medical Grade Monitor
27
