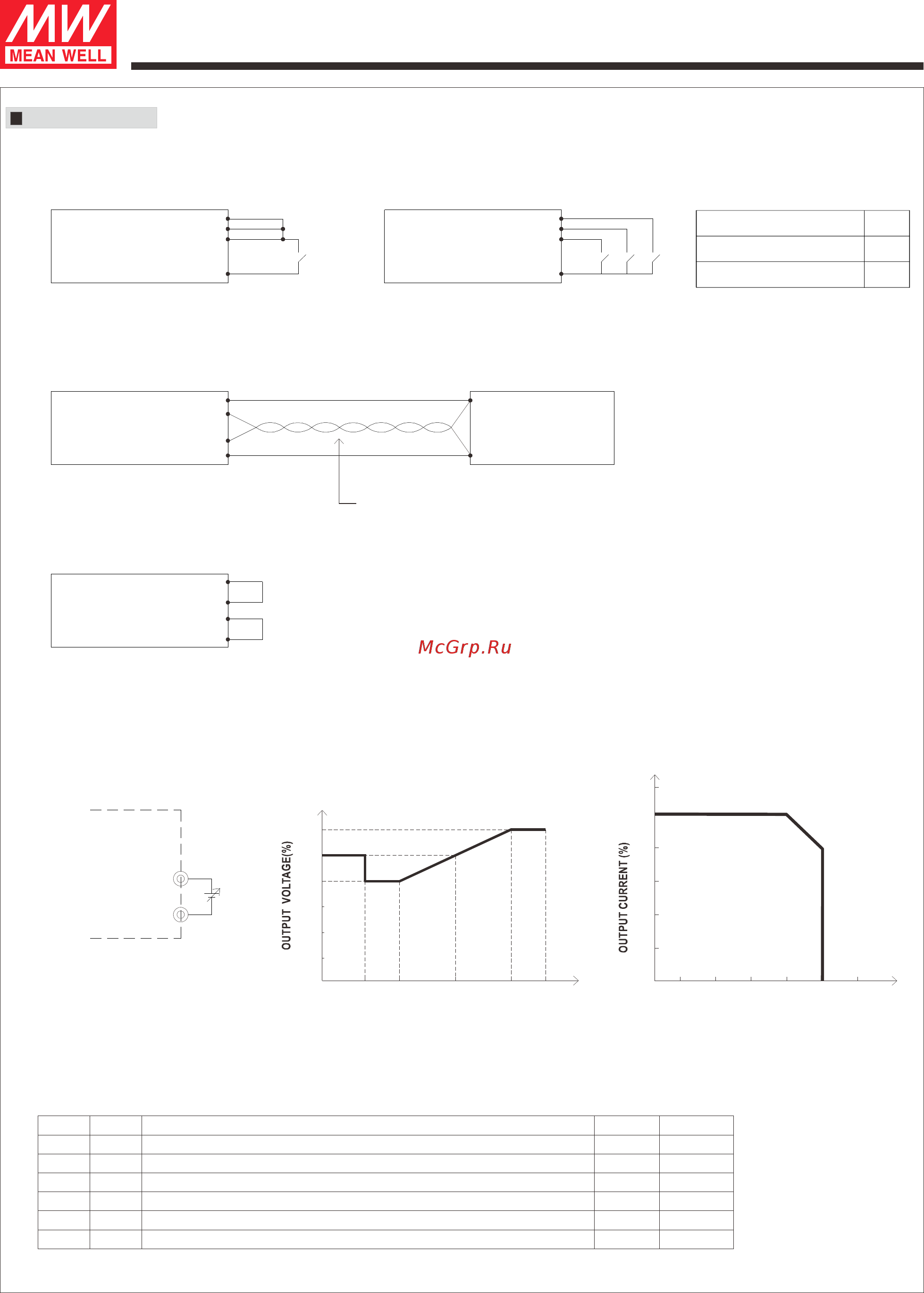

Function Manual
1. Remote ON/OFF Control
The PSU can be turned ON/OFF together or separately by using the "Remote ON/OFF" function.
2.1 Remote Sense
The remote sense compensates voltage drop on the load wiring up to 0.5V.
2.2 Local Sense
Notice : The +S,-S have to be connected to the +V,-V terminals locally in order to get the correct output voltage if the remote sensing is not used.
Between ON/OFF and +5V-AUX
SW Open
SW Short
Output
OFF
ON
+5V-AUX +5V-AUX
ON/OFF A
+V
-V
ON/OFF A
ON/OFF B ON/OFF B
ON/OFF C
+S
-S
ON/OFF C
RKP-1U
RKP-1U
RKP-1U
1
24
25
1
7 7
16
22
23
16
13 13
2. Voltage Drop Compensation
-V
+V
RKP-1U
+S
-S
LOAD
-V
+V
3. Output Voltage TRIM
22
23
Sense lines should be twisted in pairs
(1)Connecting an external DC source between PV(4,10,19) and -V(25) on CN500 that is shown in Fig. 3.1.
(2)Adjustment of output voltage is possible between 90~110%(Typ.) of the rated output which is shown in Fig. 3.2. Reducing output current is required when the
output voltage is trimmed up.
Fig. 3.1 Add on 0~5V external voltage
Fig. 3.2 Output voltage trimming
908070 100 110
V
100
90
80
70
60
OUTPUT VOLTAGE (%)
PV
4,10,19
25
0~5V
-V
60
70
80
EXTERNAL VOLTAGE(DC)
90
100
110
Vout
0.50 1.5 3 4.5 5
V
File Name:RKP -1U RACK SYSTEM-SPEC
2015-02-11
2000~6000W Front End Power System
RKP-1U Ra ck Sys te m
Function
AC-OK
AC-NG
DC-OK
DC-NG
T-OK
T-ALARM
LED
GREEN
RED
GREEN
RED
GREEN
RED
Description
When input voltage 87V ≧
When input voltage 75V≦
When output voltage 80% 5% of Vo rated.≧ ±
When output voltage 80% 5% of Vo rated.≦ ±
When the internal temperature (TSW1 & TSW2 short) is within safe limit
When the internal temperature (TSW1 or TSW2 open) exceeds the limit of temperature alarm
4. Front Panel Indicators & Corresponding Signal at Function Pins
Signal
0 ~ 0.5V
4.5 ~ 5.5V
0 ~ 0.5V
4.5 ~ 5.5V
0 ~ 0.5V
4.5 ~ 5.5V
PSU Output
ON
OFF
ON
ON
ON
OFF
*
*Signal between function pin and "GND-AUX".
