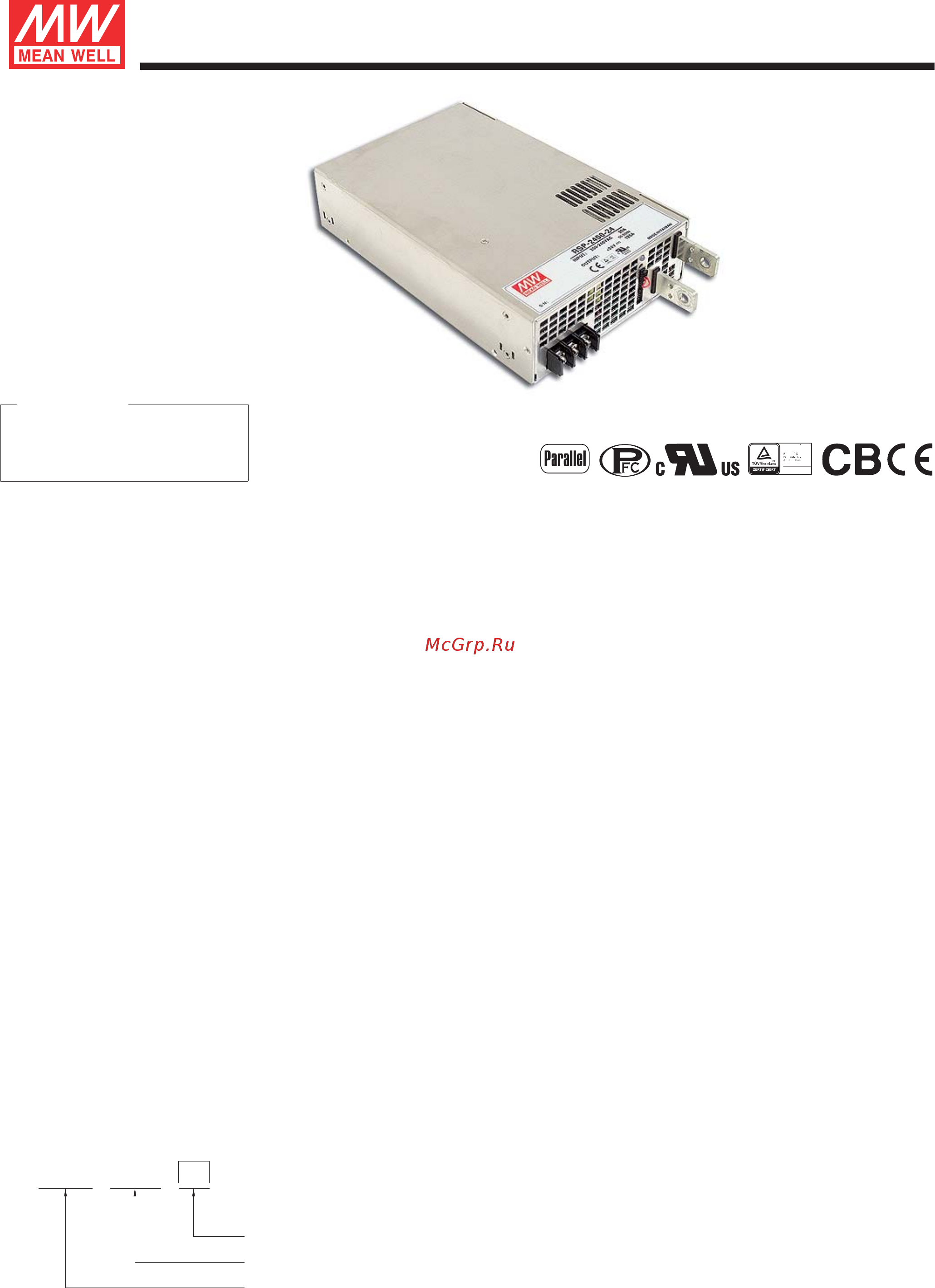

2400W Power Supply with Single Output
RSP-2400 series
■ Model Encoding / Order Information
■ Description
RSP-2400 is a 2.4KW single output enclosed type AC/DC power supply. This series operates for 180~264VAC
input voltage and offers the models with the DC output mostly demanded from the industry. Each model is
cooled by the built-in fan with fan speed control, working for the temperature up to 70 . Moreover, RSP-2400 ℃,
provides vast design flexibility by equipping various built-in functions such as the output programming,
active current sharing, remote ON-OFF control, auxiliary power, etc.
24RSP - -2400
Series name
Output wattage
Output voltage (12V/24V/48V)
AC input 180~264VAC
Built-in active PFC function
High efficiency up to 91.5%
Forced air cooling by built-in DC fan
Output voltage programmable
Active current sharing up to 7200W (2+1)
Built-in remote ON-OFF control / remote sense /
auxiliary power power OK signal
/
Protections: Short circuit / Overload / Over voltage
/ Over temperature
Optional conformal coating
5 years warranty
Bauar
Sicherheit
egel gema
t gepru ft
od
be
www.
ID 2000000000
tuv.com
wac g
os
7
Dimension
L
278
10.9
W
177.8
H
63.5(2U)
(2U)
mm
inch2.5
*
*
*
*
*
*
