System Appearance - 18 -
2-3 Front Panel LED and Buttons
No. Name Color Status Description
1.
System
Status LED
Green On System is operating normally.
Amber
On
Critical condition, may indicates:
System fan failure
System temperature
Blink
Non-critical condition, may indicates:
Redundant power module failure
Temperature and voltage issue
N/A Off
Non-critical condition, may indicates:
Redundant power module failure
Temperature and voltage issue
2.
Reset Button -- -- Press this button to reset the system.
3.
Power button
with LED
Green On System is powered on
Green Blink System is in ACPI S1 state (sleep mode)
N/A Off
• System is not powered on or in ACPI S5 state (power
off)
• System is in ACPI S4 state (hibernate mode)
4.
ID Button
with LED
Blue On System identication is active.
N/A Off System identication is disabled.
5.
Enclosure CMC
Reset Button
-- -- Press this button to reset the CMC.

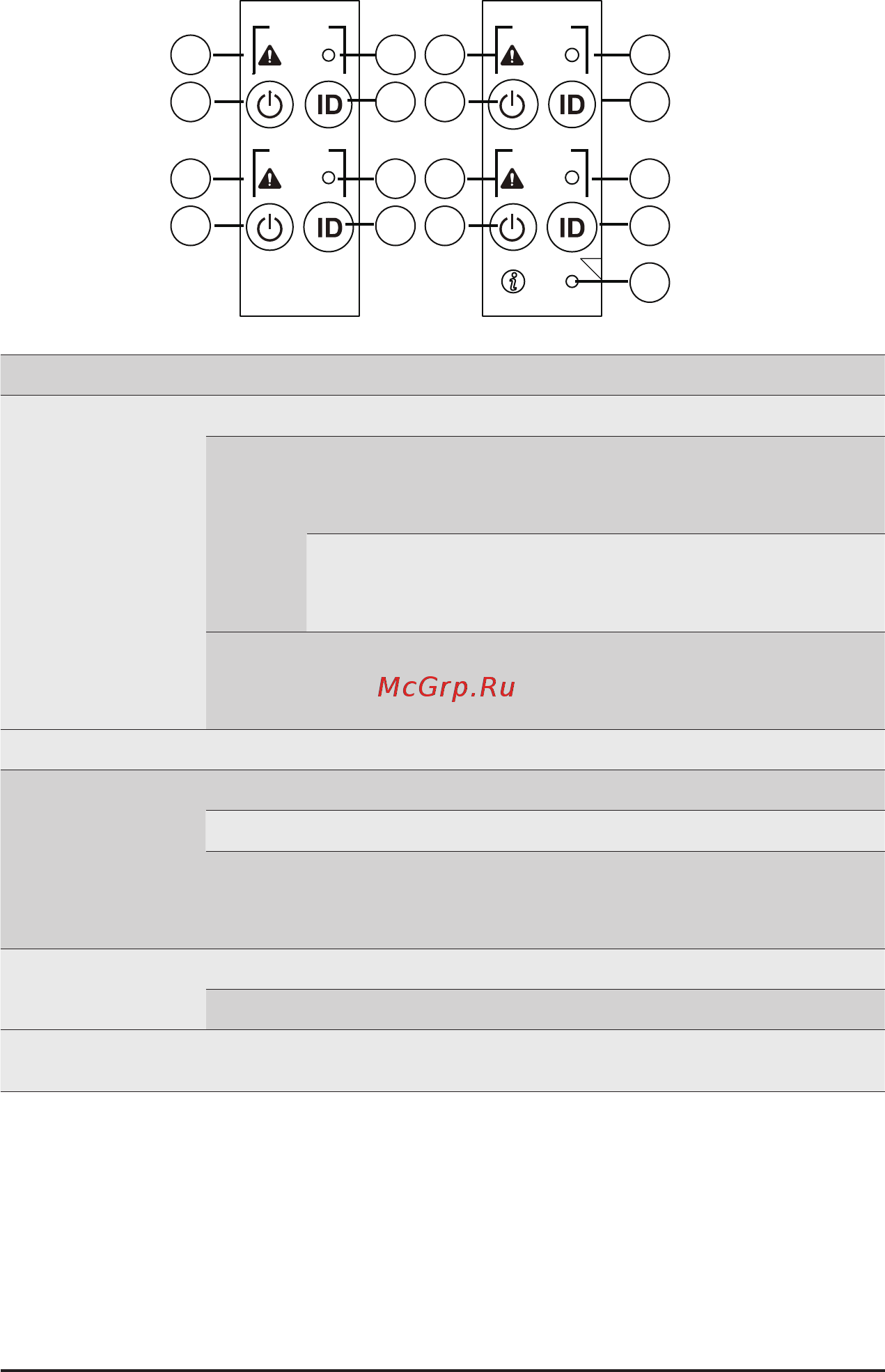

NODE1
RST
NODE2
RST
NODE3
RST
NODE4
RST
RST
C
1
4
2
3
1
4
2
3
1
4
2
3
1
4
5
2
3
