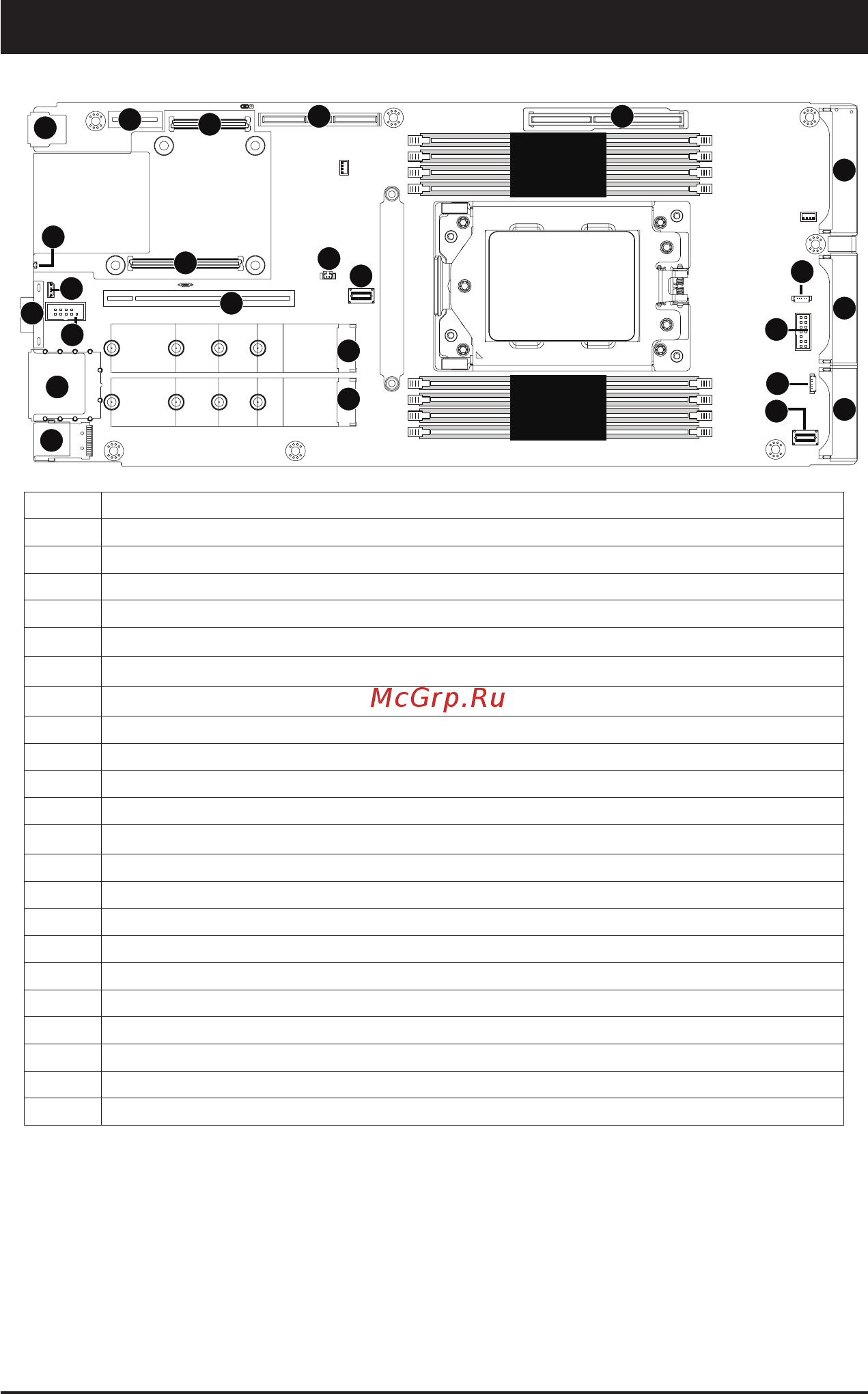

- 43 - Motherboard Components
Chapter 4 Motherboard Components
4-1 Motherboard Components
Item Description
1 USB 3.0 Port x 2
2 ID LED
3 IPMB Connector
4 VGA Port
5 Serial Port Cable Connector
6 GbE LAN Port x 2
7 Server Management LAN Port
8 M.2 Connector (PCIe3 x4, Supports NGFF-22110)
9 M.2 Connector (PCIe3 x4, Supports NGFF-22110)
10 SlimLine SAS Connector (SL_SATA1/SATA)
11 SGPIO Connector
12 Power & PCIe/SATA Connector
13 Power & PCIe/SATA Connector
14 TPM Module Connector (SPI Interface)
15 SGPIO Connector
16 Power & PCIe/SATA Connector
17 Proprietary PCIe x16 Slot (Gen3 x16)
18 Riser Slot #1
19 OCP Mezzanine Connector (OCP 2.0/Gen3 x16)
20 Riser Slot #2
21 System Battery Power Cable Connector
22 SlimLine SAS Connector (SL_SATA0/SATA)
21
DIMM_P0_E0
DIMM_P0_F0
DIMM_P0_G0
DIMM_P0_H0
DIMM_P0_D0
DIMM_P0_C0
DIMM_P0_B0
DIMM_P0_A0
CPU
12
1
3
2
5
6
7
9
8
10
11
13
14
16
15
1718
19
18
20
21
22
19
4
