Gigabyte H252-Z10 (rev. 100) [21/131] 6 power supply unit psu led

System Appearance - 21 -

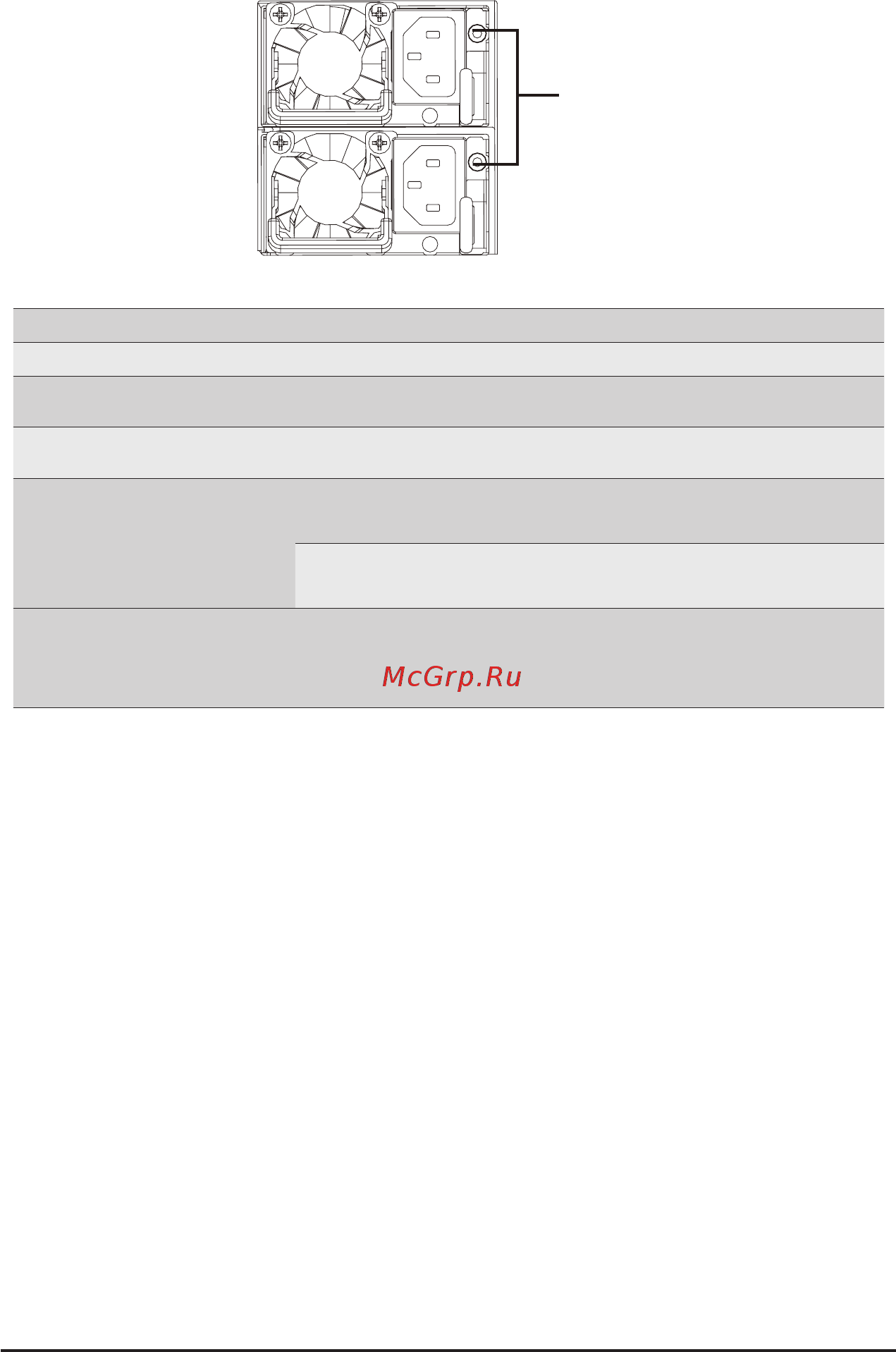

2-6 Power Supply Unit (PSU) LED

State Description

OFF Indicates no AC power to all power supplies

1Hz Blink GREEN Indicates AC present/ only standby on/ Cold redundant mode

2Hz Blink GREEN Indicates power supply rmware in updating mode

Amber

Indicates AC cord unplugged or AC power lost; with a

second power supply in parallel still with AC input power

Indicates power supply critical event causing shut down:

failure, OCP, OVP, Fan Fail, UVP

1Hz Blink Amber

Indicates power supply warning events where

the power supply continues to operate:

high temp, high power, high current, slow fan

PSU LED
