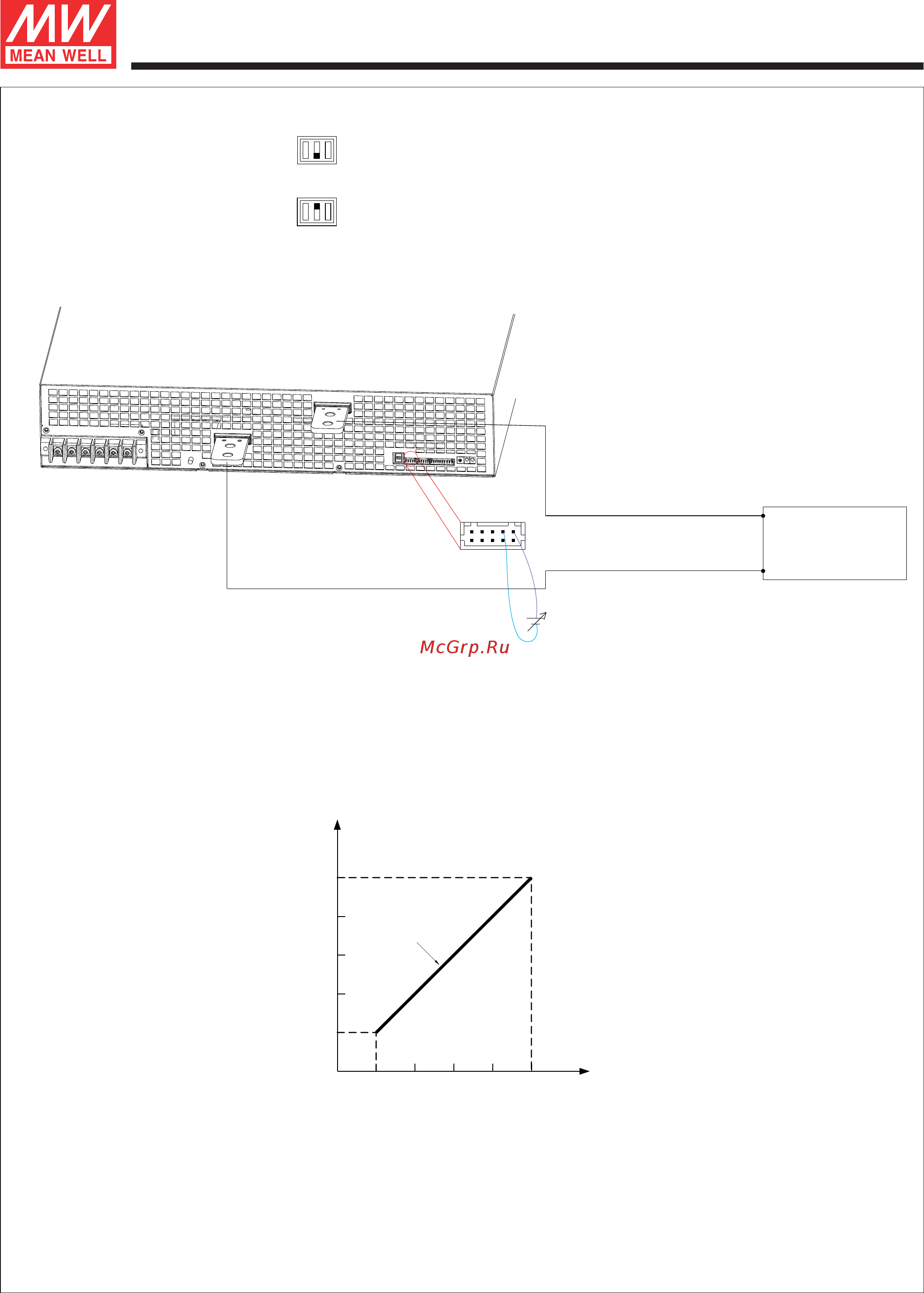

10000W Power Supply with Single Output
RST-10000 series
File Name:RST-10000-SPEC 2019-07-16
Fig 3.2
Rated Current
V
12345
20
40
60
80
100
EXTERNAL VOLTAGE (VDC)
CONSTANT CURRENT LEVEL (%)
Non-Linear
3.Current Adjustment
(a)Have the DIP switch position-2 set as
(b)Output current is set default value.
(1)Default Overload Protection(OLP) value
(2)by Constant Current Level Programming**
(a)Have the DIP switch position-2 set as
ON
OFF
123
ON
OFF
123
(b)The constant current level can be trimmed to 20~100% of the rated current by applying EXTERNAL VOLTAGE between and on CN992 or CN993.PC+ PC-
**: or, PC/remote current programming / dynamic current trim.
PIN9 PC+PIN7 PC-
EXTERNAL VOLTAGE (DC)
Fig 3.1
LOAD
-V
+V
DIP
SW
CN993
CN992
CN991
+V
-V
CN993
SVR
+S and +V, as well as -S and -V, need to be connected as factory default setting◎
