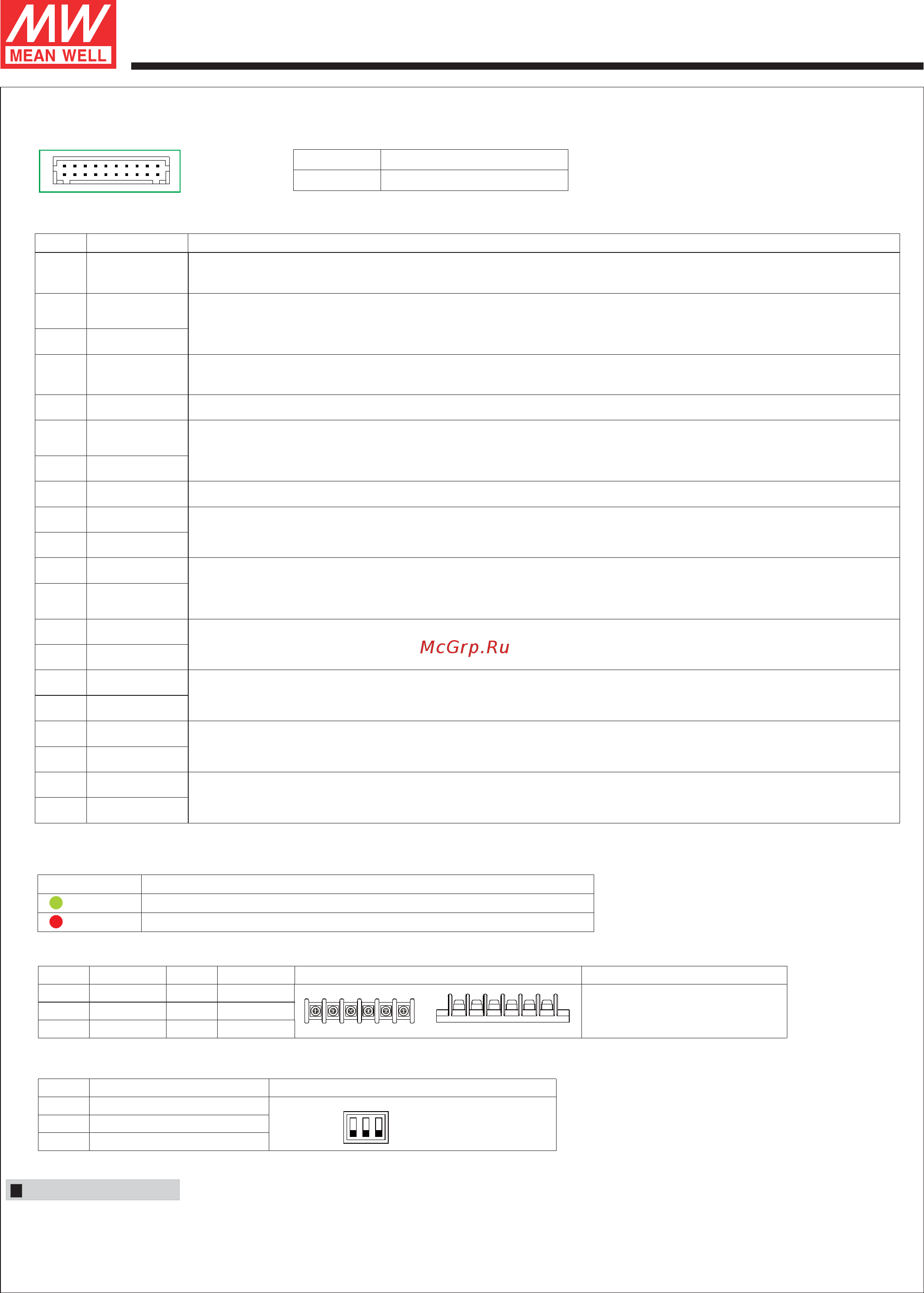

5000W Single Output Power Supply
RST-5000 series
File Name:RST-5000-SPEC 2019-07-29
LED
Green
(LED1)
Red(LED2)
LED on when output voltage is OK
Description
LED on when any protection occurs
LED Status Indicators※
※AC Input Terminal Pin No. Assignment (TB1)
※DIP Switch Position Assignment(DIP-SW): Please refer to the Function Manual.
Pin No. Pin No.
14
36
25
Assignment Assignment Diagram Mxa imum mounting torque
18Kgf-cm
AC/N1 AC/L3
AC/L1 AC/N2
AC/L2 AC/N3
20 2
119
※ Control Pin No.Assignment : HRS DF11-20DP-2DS or equivalent()CN315
Mating Housing
Terminal
HRS DF11-20DS or equivalent
HRS DF11-**SC or equivalent
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
Pin No. Function
12V-AUX
DC-OK2-GND
DC-OK2
GND-AUX
Description
1
3
6
2
14
17
18
11
15
12
4
16
19
20
5
7
+V(signal)
AC-FAIL2
AC-FAIL2-GND
-V(signal)
OTP2
OTP2-GND
FAN-FAIL2
FAN-FAIL2-GND
Auxiliary voltage output, 11.4~12.6V, referenced to pin 3(GND-AUX).
The maximum load current is 0.1A. This output is not controlled by the "Remote ON/OFF" function.
Auxiliary voltage output GND.
The signal return is isolated from the output terminals (+V & -V).
Positive output voltage. For local sense only ; it cannot be connected directly to the load.
Negative output voltage. For local sense only ; it cannot be connected directly to the load.
Alarm signal of AC fail.
Open collector signal. Low when the PSU input voltage is too low. The maximum sink current is 10mAand the maximum external
voltage is 20V.
Alarm signal of DC-OK.
Open collector signal. Low when the PSU turns on. The maximum sink current is 10mA and the maximum external voltage is 20V.
Alarm signal of DC-OK.
Normally open contact. "Short" when the PSU turns on. Relay contact rating(maximum) is 30V/1A resistive.
Alarm signal of AC-fail.
Normally open contact. "Short" when the PSU input voltage is too low. Relay contact rating(maximum) is 30V/1A resistive.
Alarm signal of fan fail.
Normally open contact. "Short" when the internal fan fails. Relay contact rating(maximum) is 30V/1A resistive.
Alarm signal of OTP.
Open collector signal. Low when the PSU over temperature protection occurs. The maximum sink current is 10mA and the maximum
external voltage is 20V.
Alarm signal of OTP.
Normally open contact. "Short" when the PSU over temperature protection occurs. Relay contact rating(maximum) is 30V/1A
resistive.
Alarm signal of fan fail.
Open collector signal. Low when the internal fan fails. The maximum sink current is 10mA and the maximum external voltage is 20V.
9
13
10
OTP1
OTP1-GND
DC-OK1
DC-OK1-GND
AC-FAIL1-GND
AC-FAIL1
FAN-FAIL1
FAN-FAIL1-GND
8
Pin No.
1
3
2
Assignment Diagram
Output Current Programming (PC)
Output Voltage Programming (PV)
Overload Protection (OLP)
ON
OFF
123
DIP-SW PIN2:PC
DIP-SW PIN3:PV
