MEAN WELL RST-5000-24 [6/10] Rst 500
![MEAN WELL RST-5000-24 [6/10] Rst 500](/views2/1681428/page6/bg6.png)

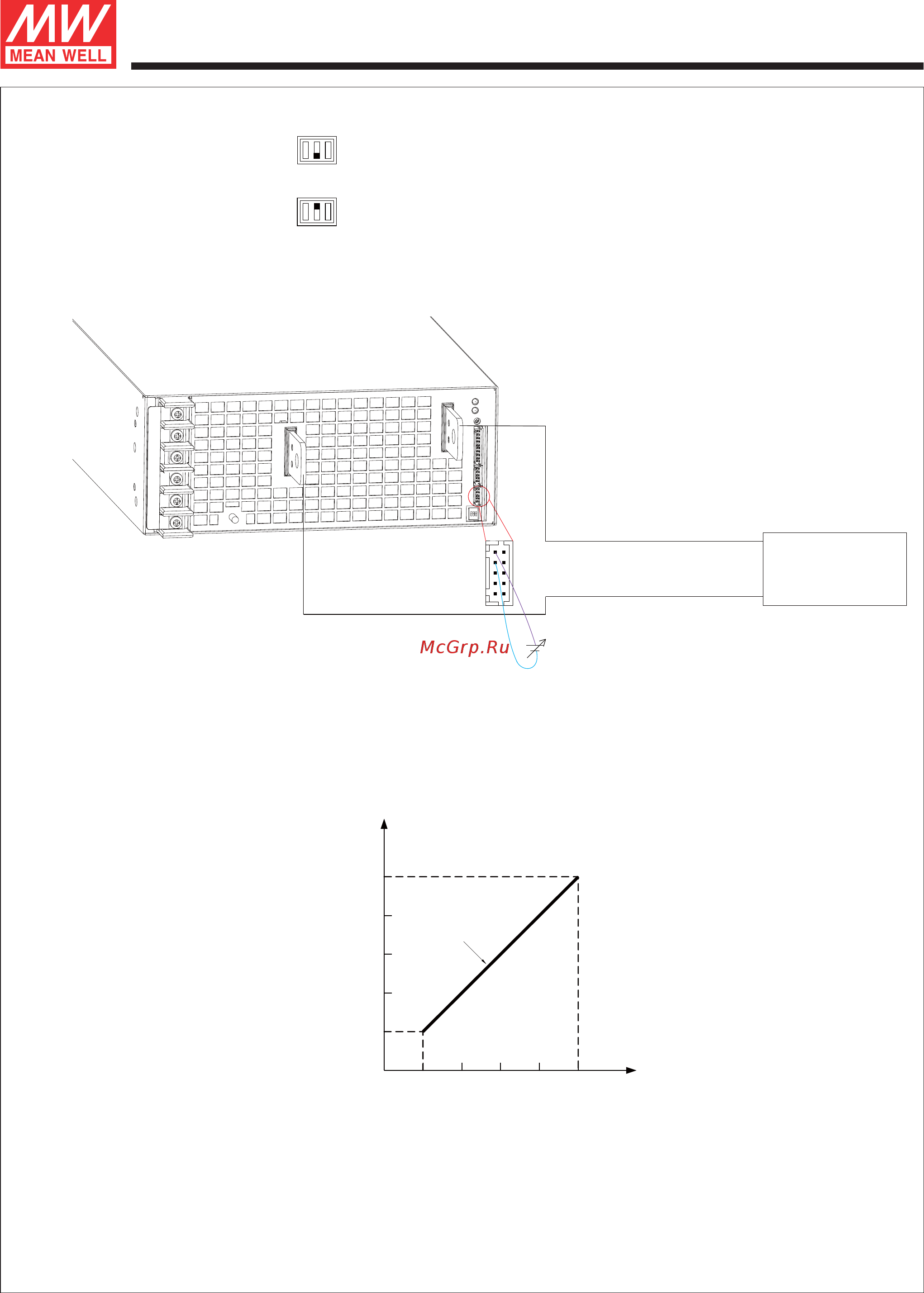

Fig 3.2
5000W Single Output Power Supply
RST-5000 series
File Name:RST-5000-SPEC 2019-07-29
Fig 3.1
LOAD
-V
+V
+V
CN313
CN314
CN315
-V
DIP SW
PIN9 PC+
PIN7 PC-
EXTERNAL VOLTAGE (DC)
3.Current Adjustment
(a)Have the DIP switch position-2 set as
(b)Output current is set default value.
(1)Default Overload Protection(OLP) value
(2)by Constant Current Level Programming**
(a)Have the DIP switch position-2 set as
ON
OFF
123
ON
OFF
123
(b)The constant current level can be trimmed to 20~100% of the rated current by applying EXTERNAL VOLTAGE between and on CN313 or CN314.PC+ PC-
Rated Current
V
12345
20
40
60
80
100
EXTERNAL VOLTAGE (VDC)
CONSTANT CURRENT LEVEL (%)
Non-Linear
CN313
**: or, PC/remote current programming / dynamic current trim.
+S and +V, as well as -S and -V, need to be connected as factory default setting◎
