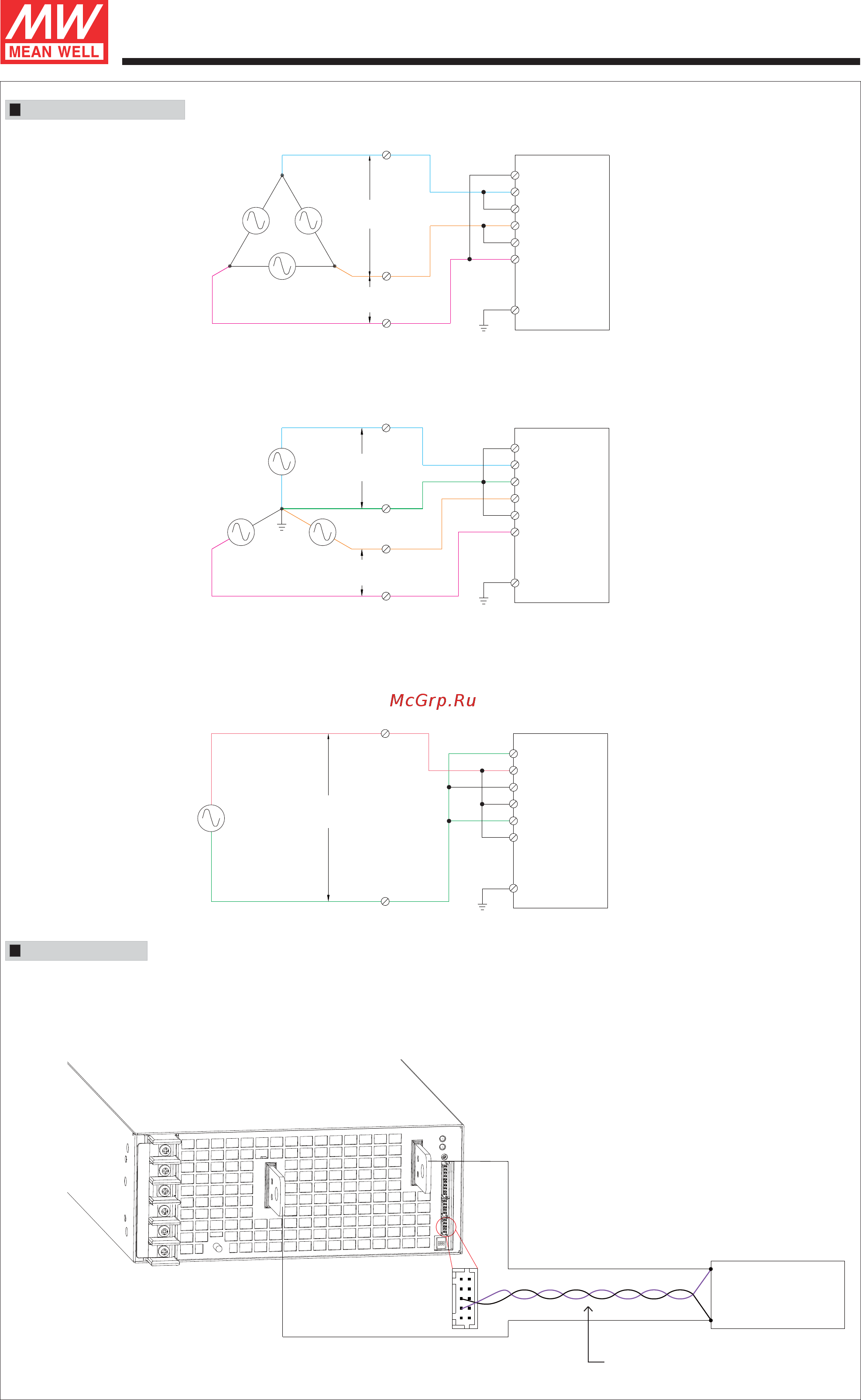

5000W Single Output Power Supply
RST-5000 series
File Name:RST-5000-SPEC 2019-07-29
Fig 1.1
AC Power Connection
Fig 1.2
◎ψ3 3-wire / 230VAC△
230V
230V
T
RST-5000
S
R
FG
L1
N1
L2
N2
L3
N3
◎ψ3 4-wire / Y 400VAC
T
N
S
R
RST-5000
FG
L1
N1
L2
N2
L3
N3
230V
400V
Function Manual
Fig 1.1
1.Remote Sense
※ The remote sense function compensates the voltage drop on the cable, between the power supply and the load, up to 0.3V.
※ If the remote sense function is not required,+S and +V of the output terminal, as well as -S and -V, need to be connected to be free from noise and
interference. (+S and +V of the output terminal, -S and -V are connected as factory default setting)
LOAD
-V
+V
Sense lines should be twisted in pairs to minimize
noise pick-up.
+V
CN313
CN314
CN315
-V
PIN5 -S
PIN3 +S
DIP SW
■Note : RST-5000 can also be operated by 1 2 wire 196~305VAC input. Please refer to the connection diagram below.ψ -
Operating with 1 2 wire may lead to certain characteristics different from the specification, such as the larger Ripple and Noise. Should there be anyψ -
issues, please contact MEAN WELL.
230V
L
RST-5000
N
FG
L1
N1
L2
N2
L3
N3
Fig 1.3
