English
22

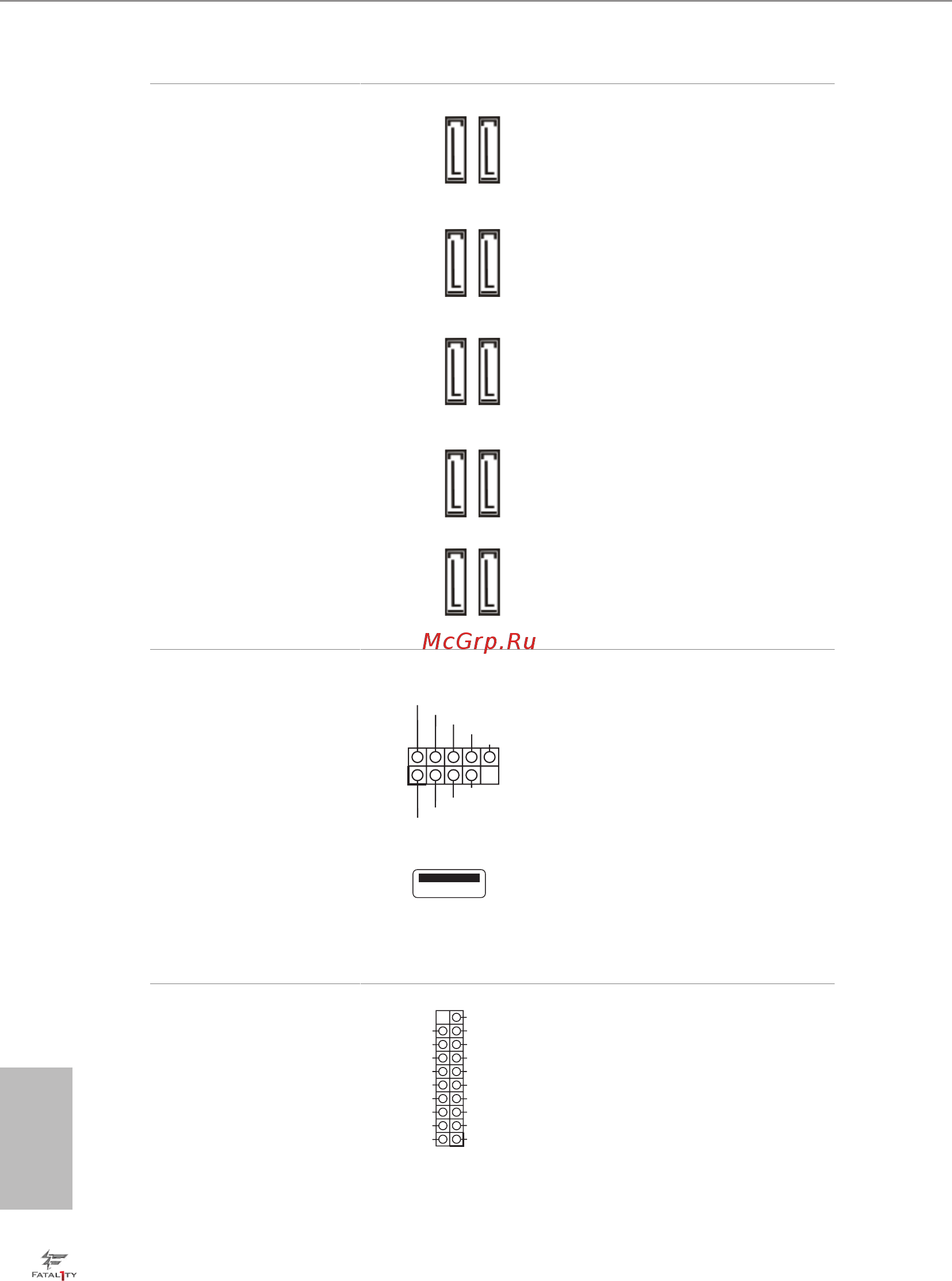

Serial ATA3 Connectors
(SSATA3_0_1:
see p.6, No. 13)
(SSATA3_2_3:
see p.6, No. 14)
(SATA3_0_3:
see p.6, No. 15)
(SATA3_1_4:
see p.6, No. 16)
(SATA3_2_5:
see p.6, No. 17)
ese ten SATA3
connectors support SATA
data cables for internal
storage devices with up
to 6.0 Gb/s data transfer
rate. If the eSATA port
on the rear I/O has been
connected, the internal
SSATA3_3 will not
function. If the Ultra M.2
Socket has been occupied,
the internal SSATA3_2
will not function.
* RAID is supported on
SATA3_0 ~ SATA3_5
ports only.
USB 2.0 Headers
(9-pin USB3_4)
(see p.6, No. 26)
(9-pin USB5_6)
(see p.6, No. 27)
(USB7)
(see p.6, No. 8)
Besides two USB 2.0 ports
on the I/O panel, there
are two headers and one
port on this motherboard.
Each USB 2.0 header can
support two ports.
USB 3.0 Headers
(19-pin USB3_5_6)
(see p.6, No. 11)
(19-pin USB3_7_8)
(see p.6, No. 10)
Besides six USB 3.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
3.0 header can support
two ports.
SATA3_0
SATA3_3
SATA3_2
SATA3_5
SATA3_1
SATA3_4
SSATA3_0
SSATA3_1
SSATA3_2
SSATA3_3
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
