Dehumidier CPU Fan Setting
Congure the speed of the CPU fan while Dehumidier is enabled. e higher the
value, the faster the fan speed.
Max: 255
Min: 1
HDD Saver
By connecting your HDDs to the onboard SATA power connector with our special
designed power cable, you can switch these HDDs on and o when needed. is design
allows you to protect your privacy, save more energy, and prolong your HDDs' life spans.
HDD Saver Technology

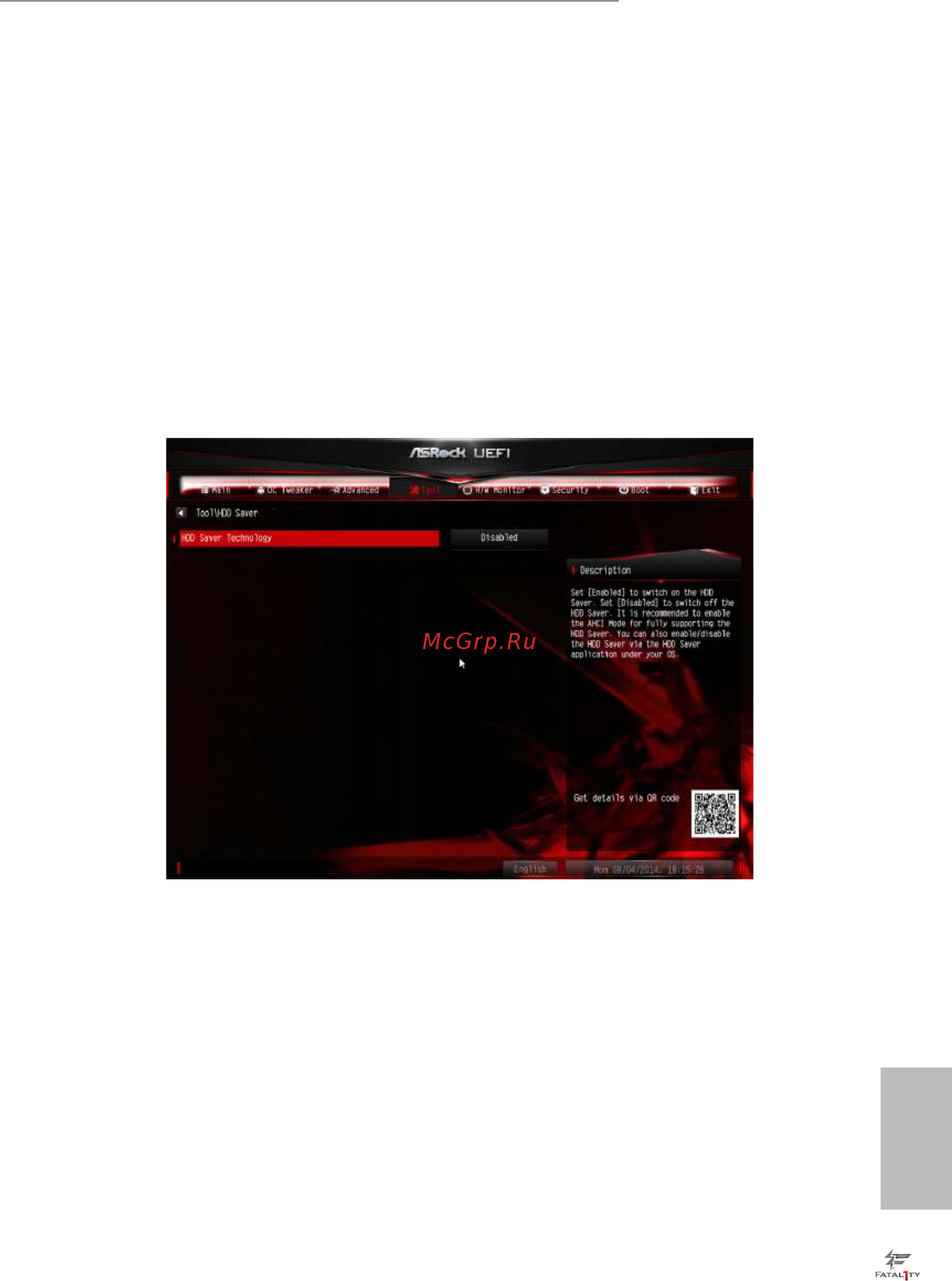

Set [Enabled] to switch on the HDD Saver. Set [Disabled] to switch o the HDD Saver.
It is recommended to enable the AHCI Mode to fully support the HDD Saver. You can also
enable/disable the HDD Saver via the HDD Saver application under your OS.
Onboard SATA Power Switch (SATA_PWR_1)
Set [Power On] to switch on the onboard SATA Power Connector. Set [Power O] to
switch o the onboard SATA Power Connector.
