English
30

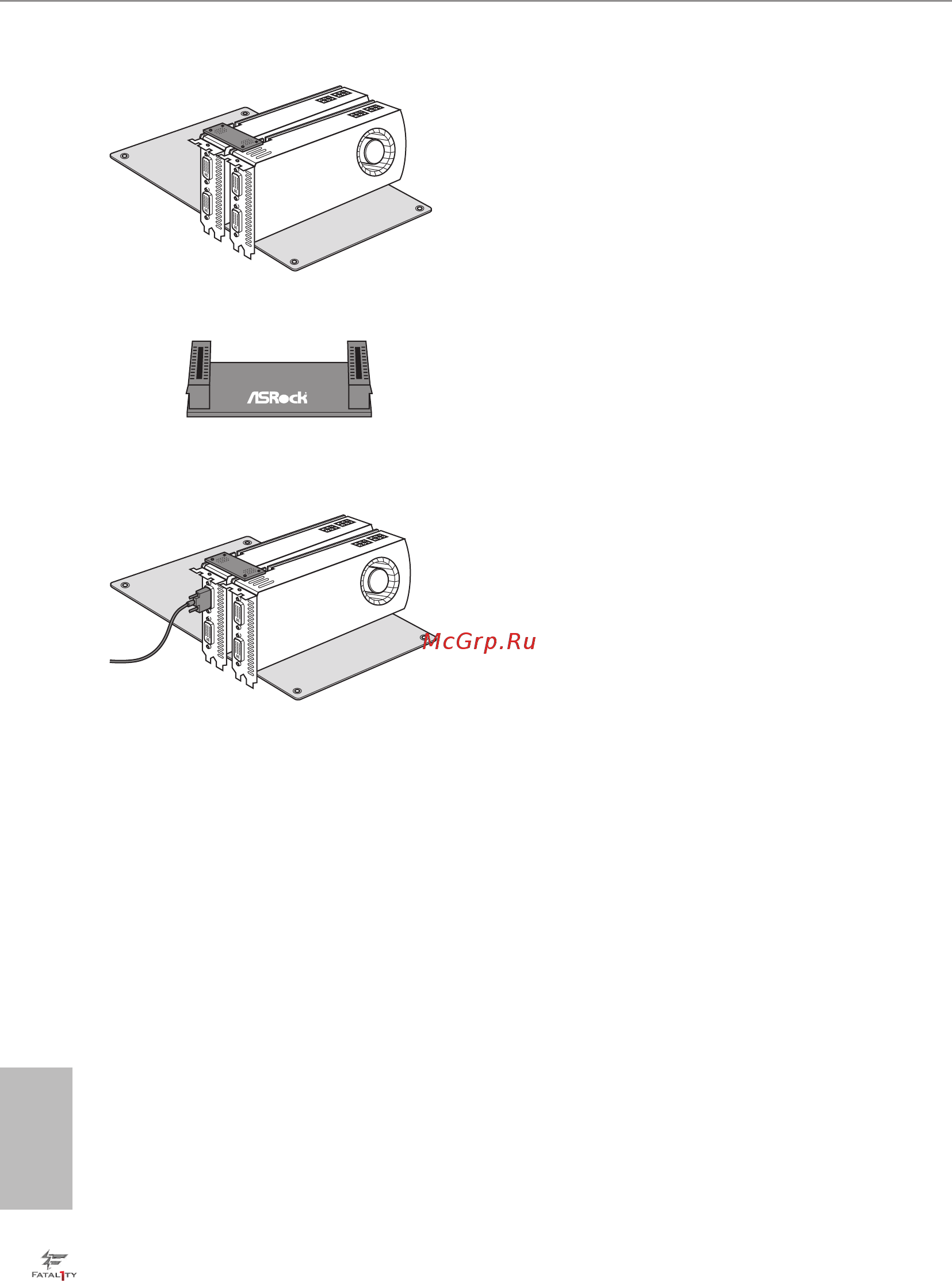

Step 3
Align and insert the ASRock SLI_
Bridge_2S Card to the goldngers on each
graphics card. Make sure the ASRock SLI_
Bridge_2S Card is rmly in place.
Step 4
Connect a VGA cable or a DVI cable to the
monitor connector or the DVI connector of
the graphics card that is inserted to PCIE1
slot.
ASRock SLI_Bridge_2S Card
SLI_Bridge_2S Card
