English

1 2

5810 9 7

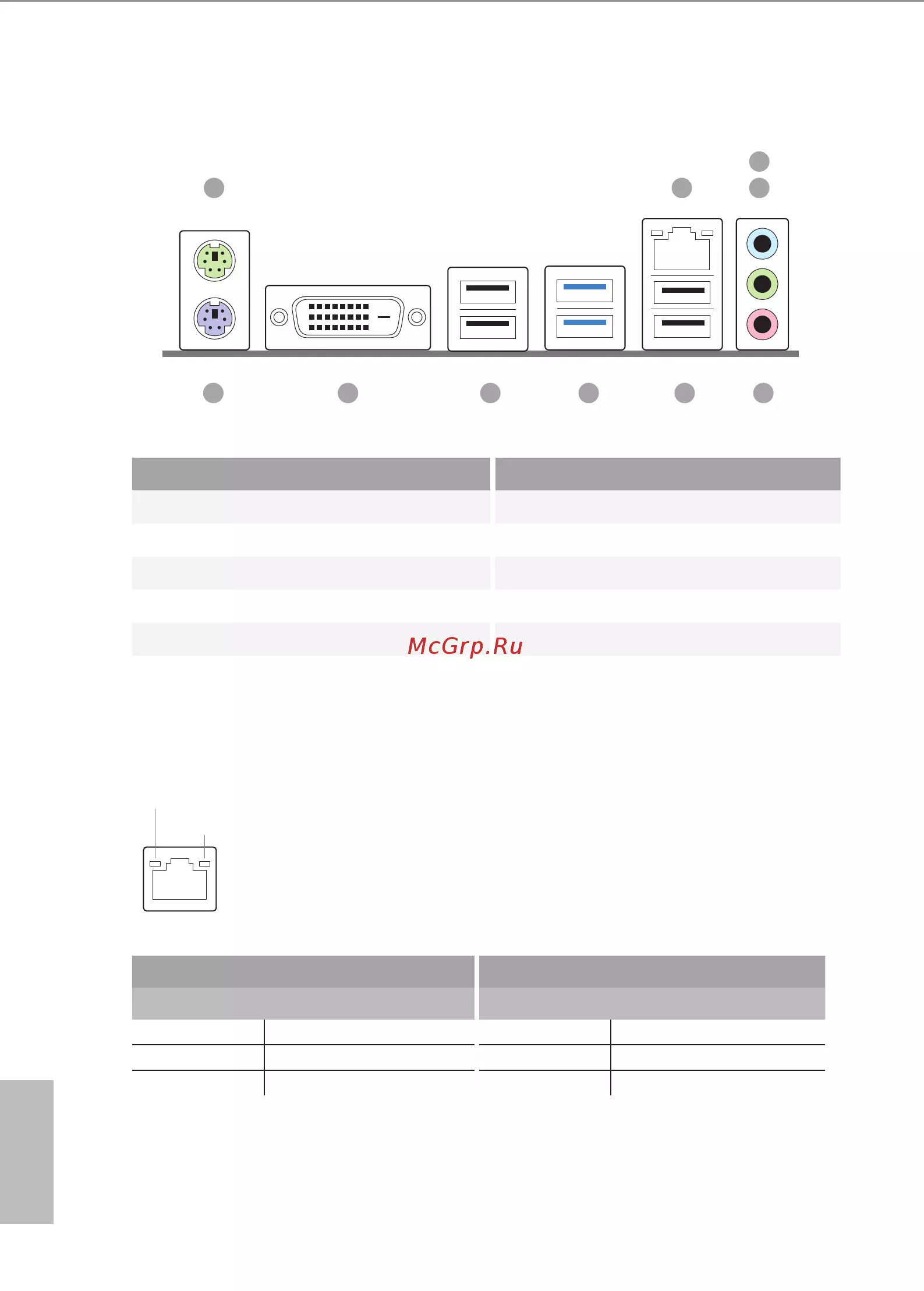

1.4 I/O Panel

No. Description No. Description

1 PS/2 Mouse Port 6 USB 2.0 Port (USB_34)

2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB3_1_2)

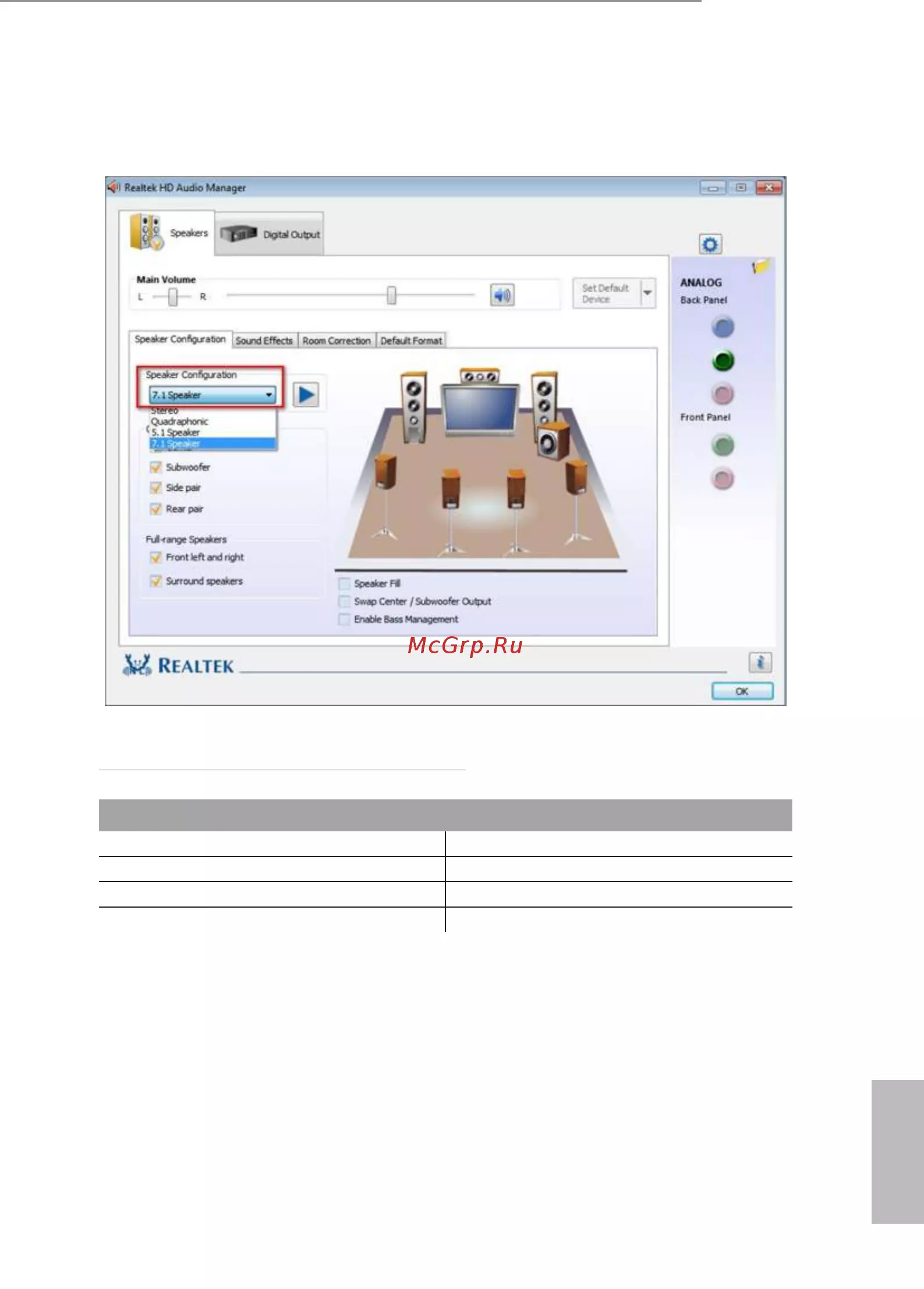

3 Line In (Light Blue)** 8 USB 2.0 Port (USB_12)

4 Front Speaker (Lime)** 9 DVI-D Port

5 Microphone (Pink)** 10 PS/2 Keyboard Port

* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port
