H110 Pro BTC+

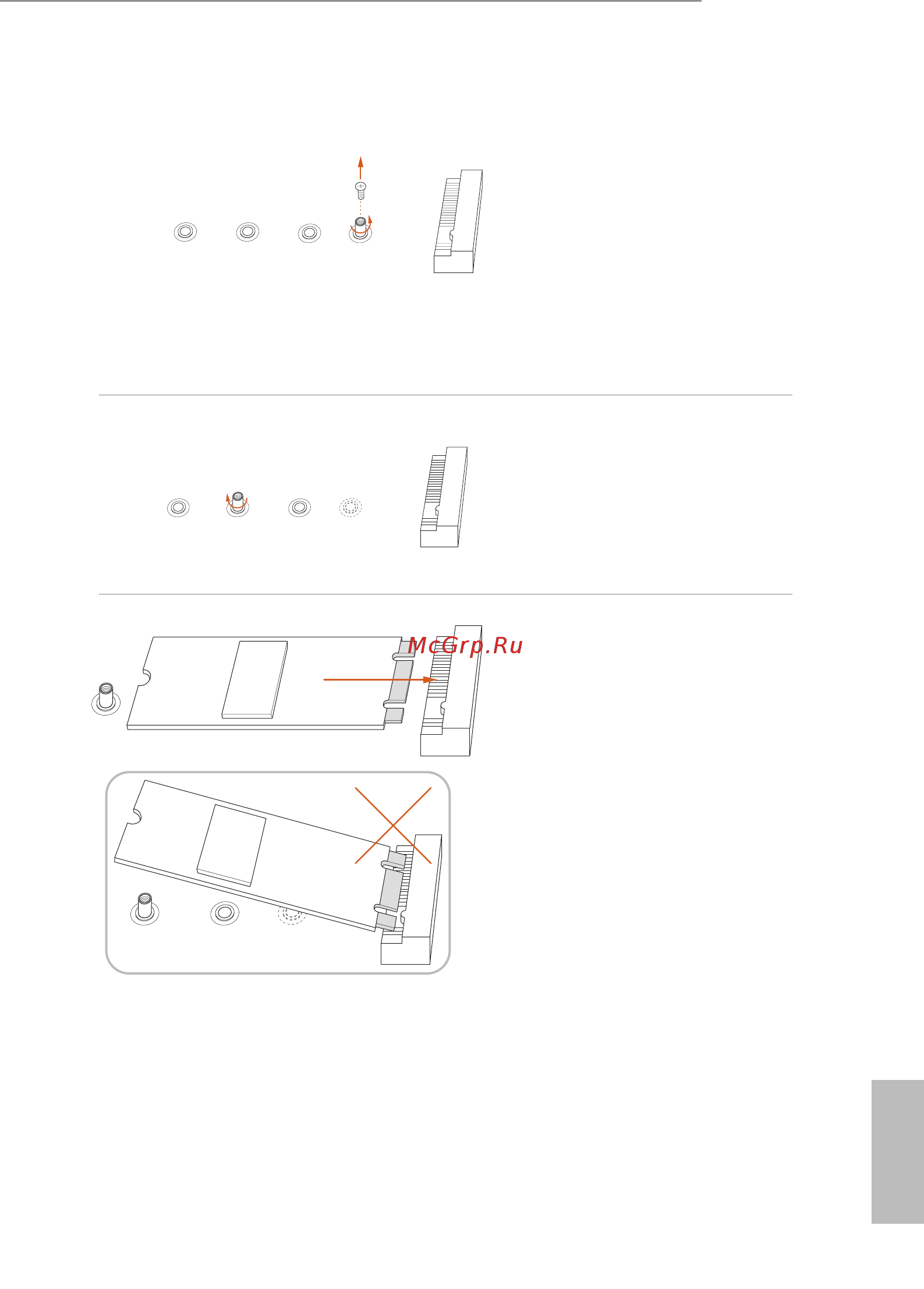

Step 3

Move the stando based on the

module type and length.

e stando is placed at the nut

location A by default. Skip Step 3

and 4 and go straight to Step 5 if you

are going to use the default nut.

Otherwise, release the stando by

hand.

BCD

Step 4

Peel o the yellow protective lm on

the nut to be used. Hand tighten the

stando into the desired nut location

on the motherboard.

Step 5

Align and gently insert the M.2

(NGFF) SSD module into the M.2

slot. Please be aware that the M.2

(NGFF) SSD module only ts in one

orientation.

ABC

BCD
