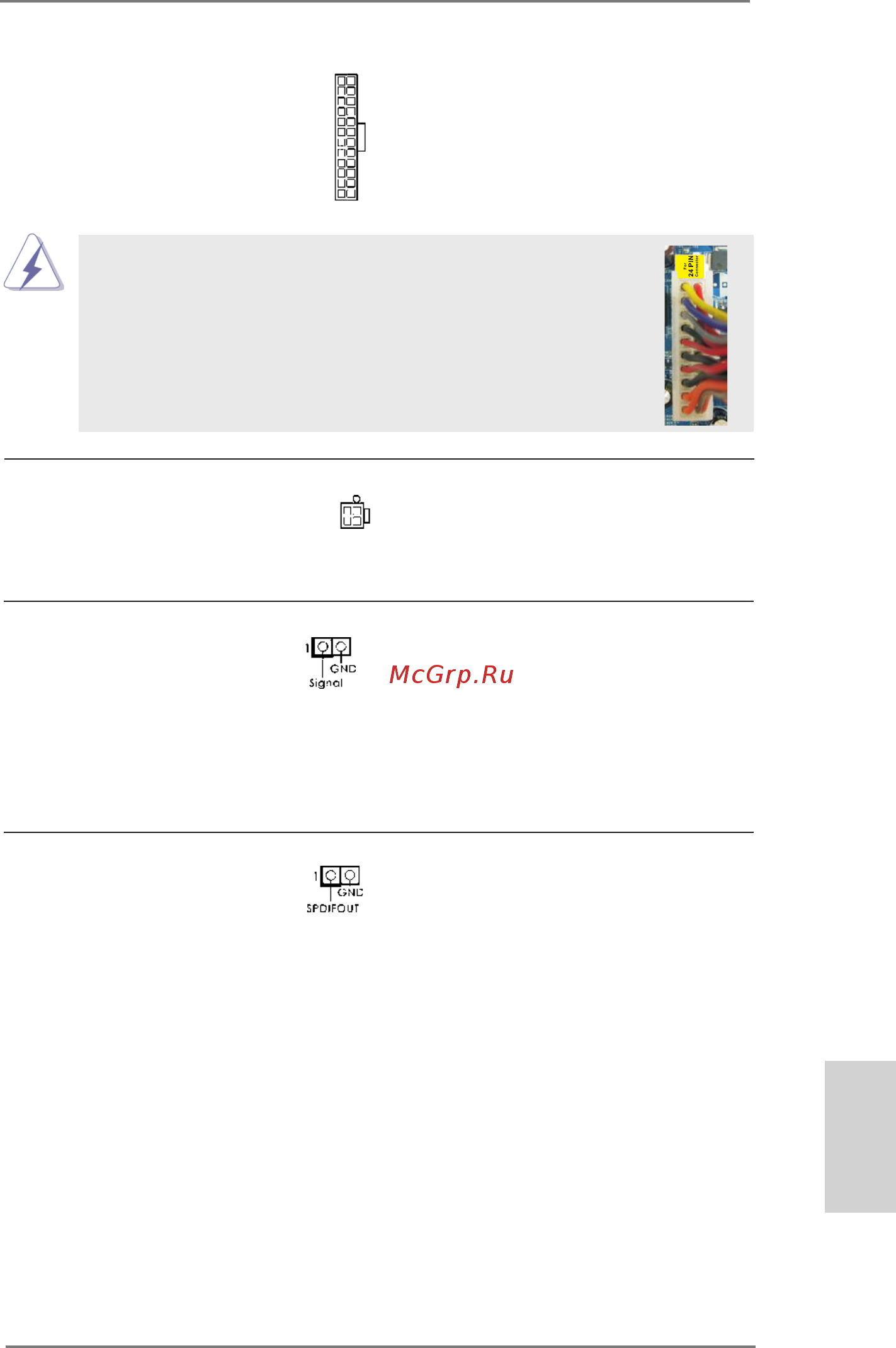

15
ASRock H61M-PS4 / H61M-HG4 / H61M-VG4 / H61M-VS4 Motherboard
English
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1)
supply to this connector.
(see p.2 No. 4)
ATX 12V Power Connector Please connect an ATX 12V
(4-pin ATX12V1)
power supply to this connector.
(see p.2 No. 1)
Chassis Intrusion Header This motherboard supports
(2-pin CI1)
CASE OPEN detection feature
(see p.2, No. 15)
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
12
1
24
13
20-Pin ATX Power Supply Installation
Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your
power supply along with Pin 1 and Pin 13.
12
1
24
13
SPDIF Out Connector Please connect the
(2-pin SPDIF_OUT1)
SPDIF_OUT connector of a
(see p.2, No. 19)
HDMI VGA card to this header
with a cable.
