ASRock X48TurboTwins-WiFi Motherboard

EnglishEnglish

English

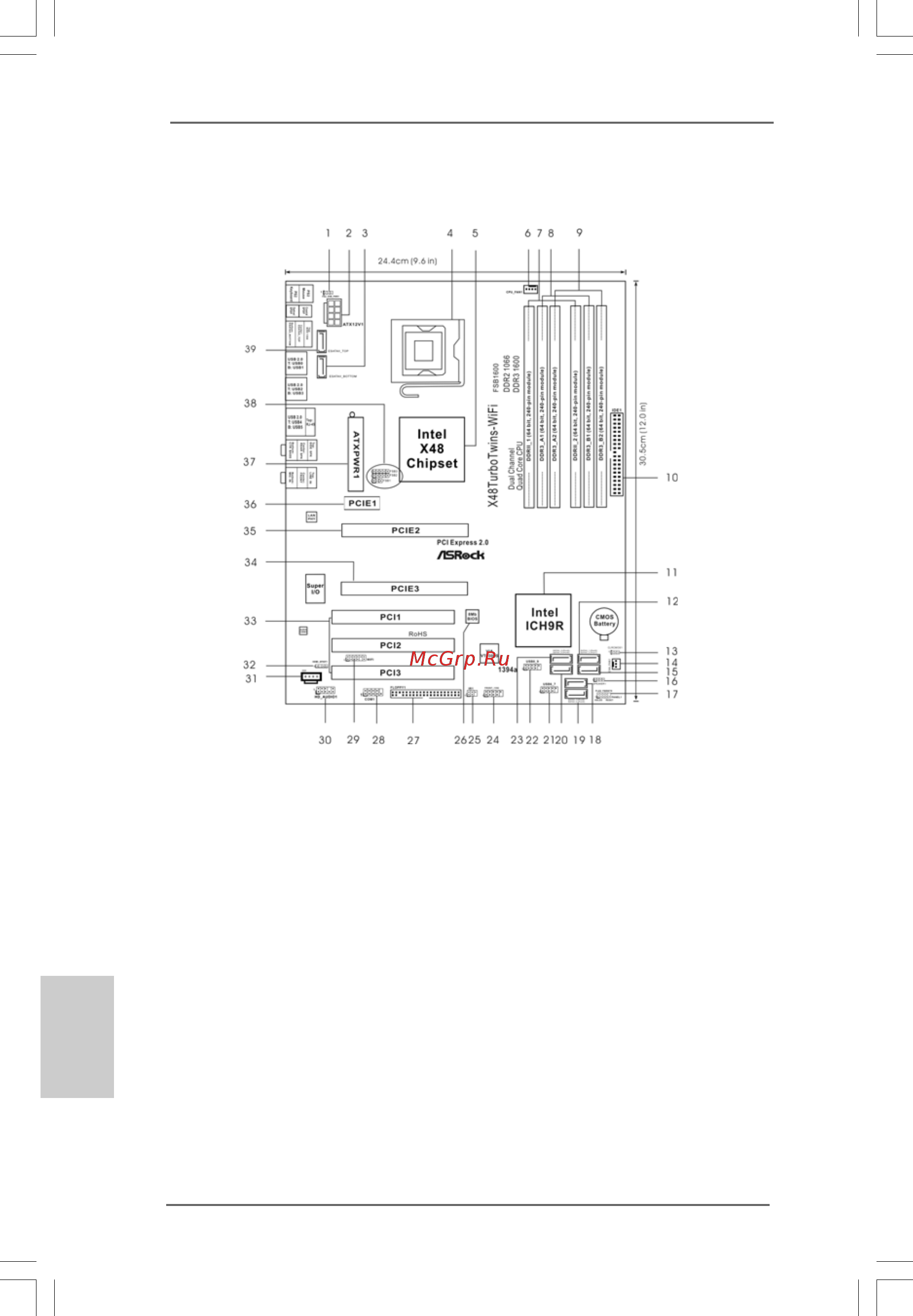

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 21 USB 2.0 Header (USB6_7, Blue)

2 ATX 12V Connector (ATX12V1) 22 USB 2.0 Header (USB8_9, Blue)

3 eSATAII Connector (eSATAII_BOTTOM) 23 SATAII Connector

4 775-Pin CPU Socket (SATAII_5 (Port4), Orange)

5 North Bridge Controller 24 Front Panel IEEE 1394 Header

6 CPU Fan Connector (CPU_FAN1) (FRONT_1394)

7 2 x 240-pin DDR2 DIMM Slots 25 DeskExpress Hot Plug Detection Header

(Dual Channel A: DDRII_1, DDRII_2; Yellow) (IR1)

8 2 x 240-pin DDR3 DIMM Slots 26 SPI BIOS Chip

(Dual Channel B: DDR3_A1, DDR3_B1; Green) 27 Floppy Connector (FLOPPY1)

9 2 x 240-pin DDR3 DIMM Slots 28 COM Port Header (COM1)

(Dual Channel C: DDR3_A2, DDR3_B2; Pink) 29 WiFi Header (WiFi)

10 IDE1 Connector (IDE1, Blue) 30 Front Panel Audio Header (HD_AUDIO1)

11 South Bridge Controller 31 Internal Audio Connector: CD1 (Black)

12 SATAII Connector (SATAII_1 (Port0), Red) 32 HDMI_SPDIF Header (HDMI_SPDIF1)

13 Clear CMOS Jumper (CLRCMOS1) 33 PCI Slots (PCI1 - 3)

14 Chassis Fan Connector (CHA_FAN1) 34 PCI Express 2.0 x16 Slot (PCIE3, Green)

15 SATAII Connector (SATAII_2 (Port1), Red) 35 PCI Express 2.0 x16 Slot (PCIE2, Green)

16 Chassis Speaker Header (SPEAKER 1) 36 PCI Express x1 Slot (PCIE1)

17 System Panel Header (PANEL1) 37 ATX Power Connector (ATXPWR1)

18 SATAII Connector (SATAII_3 (Port2), Red) 38 FSB1 / FSB2 / FSB3 Jumpers

19 SATAII Connector (SATAII_4 (Port3), Red) 39 eSATAII Connector (eSATAII_TOP)

20 SATAII Connector (SATAII_6 (Port5), Orange)
