ASRock P45XE-WiFiN / P45XE-R / P45XE Motherboard

EnglishEnglish

English

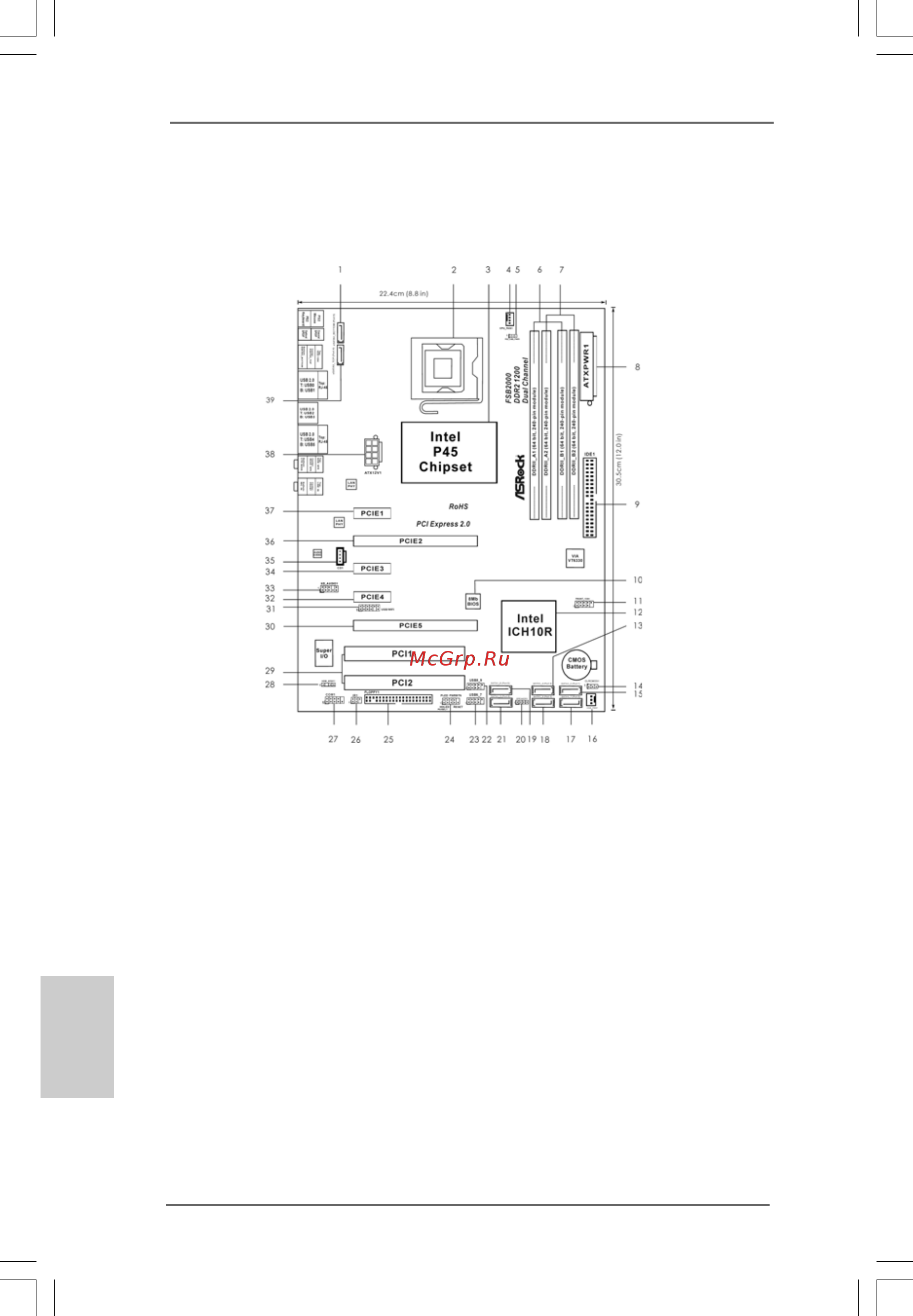

Motherboard LayoutMotherboard Layout

Motherboard Layout

(P45XE-(P45XE-

(P45XE-

iFiF

iN / P45XE-R)iN / P45XE-R)

iN / P45XE-R)

1 eSATAII Connector 21 SATAII Connector

(eSATAII_BOTTOM (Port 5), Orange) (SATAII_5 (Port4), Orange)

2 775-Pin CPU Socket 22 USB 2.0 Header (USB8_9, Blue)

3 North Bridge Controller 23 USB 2.0 Header (USB6_7, Blue)

4 CPU Fan Connector (CPU_FAN1) 24 System Panel Header (PANEL1, Orange)

5 PS2_USB_PWR1 Jumper 25 Floppy Connector (FLOPPY1)

6 2 x 240-pin DDR2 DIMM Slots 26 Infrared Module Header (IR1)

(Dual Channel A: DDRII_A1, DDRII_B1; Yellow) 27 COM Port Header (COM1)

7 2 x 240-pin DDR2 DIMM Slots 28 HDMI_SPDIF Header

(Dual Channel B: DDRII_A2, DDRII_B2; Orange) (HDMI_SPDIF1, Yellow)

8 ATX Power Connector (ATXPWR1) 29 PCI Slots (PCI1 - 2)

9 IDE1 Connector (IDE1, Blue) 30 PCI Express 2.0 x16 Slot (PCIE5, Blue)

10 SPI BIOS Chip 31 USB/WiFi Header (USB/WIFI, Yellow)

11 Front Panel IEEE 1394 Header 32 PCI Express x1 Slot (PCIE4)

(FRONT_1394, Red) 33 Front Panel Audio Header

12 South Bridge Controller (HD_AUDIO1, Lime)

13 SATAII Connector (SATAII_4 (Port3), Red) 34 PCI Express x1 Slot (PCIE3)

14 Clear CMOS Jumper (CLRCMOS1) 35 Internal Audio Connector: CD1 (Black)

15 SATAII Connector (SATAII_2 (Port1), Red) 36 PCI Express 2.0 x16 Slot (PCIE2, Green)

16 Chassis Fan Connector (CHA_FAN1) 37 PCI Express x1 Slot (PCIE1)

17 SATAII Connector (SATAII_1 (Port0), Red) 38 ATX 12V Connector (ATX12V1)

18 SATAII Connector (SATAII_3 (Port2), Red) 39 eSATAII Connector

19 SATAII Connector (SATAII_6 (Port5), Orange) (eSATAII_TOP (Port 4), Orange)

20 Chassis Speaker Header (SPEAKER 1)
