ASRock P45XE-WiFiN / P45XE-R / P45XE Motherboard

EnglishEnglish

English

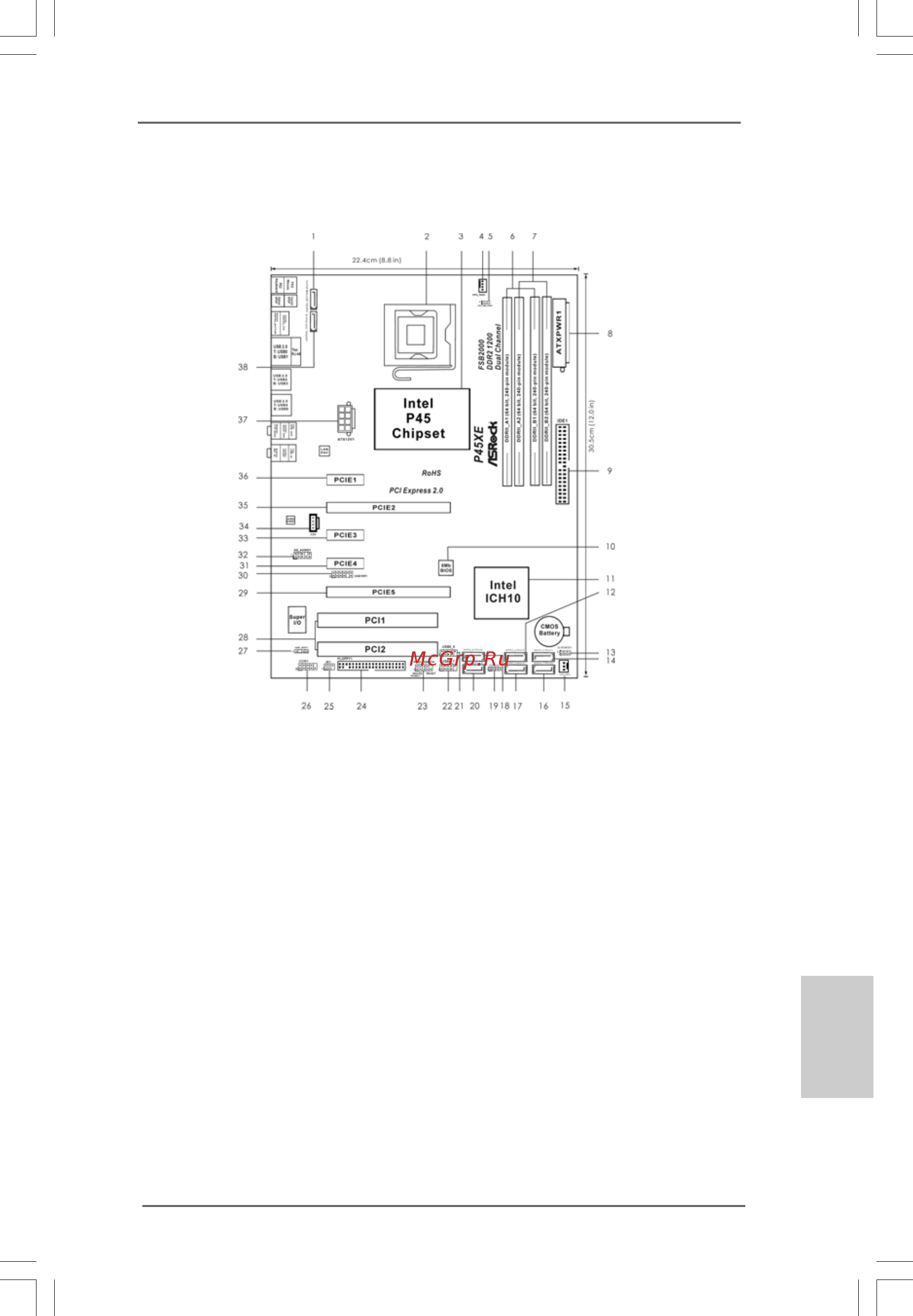

Motherboard Layout (P45XE)Motherboard Layout (P45XE)

Motherboard Layout (P45XE)

1 eSATAII Connector 21 USB 2.0 Header (USB8_9, Blue)

(eSATAII_BOTTOM (Port 5), Orange) 22 USB 2.0 Header (USB6_7, Blue)

2 775-Pin CPU Socket 23 System Panel Header (PANEL1, Orange)

3 North Bridge Controller 24 Floppy Connector (FLOPPY1)

4 CPU Fan Connector (CPU_FAN1) 25 Infrared Module Header (IR1)

5 PS2_USB_PWR1 Jumper 26 COM Port Header (COM1)

6 2 x 240-pin DDR2 DIMM Slots 27 HDMI_SPDIF Header

(Dual Channel A: DDRII_A1, DDRII_B1; Yellow) (HDMI_SPDIF1, Yellow)

7 2 x 240-pin DDR2 DIMM Slots 28 PCI Slots (PCI1 - 2)

(Dual Channel B: DDRII_A2, DDRII_B2; Orange) 29 PCI Express 2.0 x16 Slot (PCIE5, Blue)

8 ATX Power Connector (ATXPWR1) 30 USB/WiFi Header (USB/WIFI, Yellow)

9 IDE1 Connector (IDE1, Blue) 31 PCI Express x1 Slot (PCIE4)

10 SPI BIOS Chip 32 Front Panel Audio Header

11 South Bridge Controller (HD_AUDIO1, Lime)

12 SATAII Connector (SATAII_4 (Port3), Red) 33 PCI Express x1 Slot (PCIE3)

13 Clear CMOS Jumper (CLRCMOS1) 34 Internal Audio Connector: CD1 (Black)

14 SATAII Connector (SATAII_2 (Port1), Red) 35 PCI Express 2.0 x16 Slot (PCIE2, Green)

15 Chassis Fan Connector (CHA_FAN1) 36 PCI Express x1 Slot (PCIE1)

16 SATAII Connector (SATAII_1 (Port0), Red) 37 ATX 12V Connector (ATX12V1)

17 SATAII Connector (SATAII_3 (Port2), Red) 38 eSATAII Connector

18 SATAII Connector (SATAII_6 (Port5), Orange) (eSATAII_TOP (Port 4), Orange)

19 Chassis Speaker Header (SPEAKER 1)

20 SATAII Connector (SATAII_5 (Port4), Orange)
