-1394 / P43D1600T-1394 / P43D1600T

-1394 / P43D1600T

wins)wins)

wins)

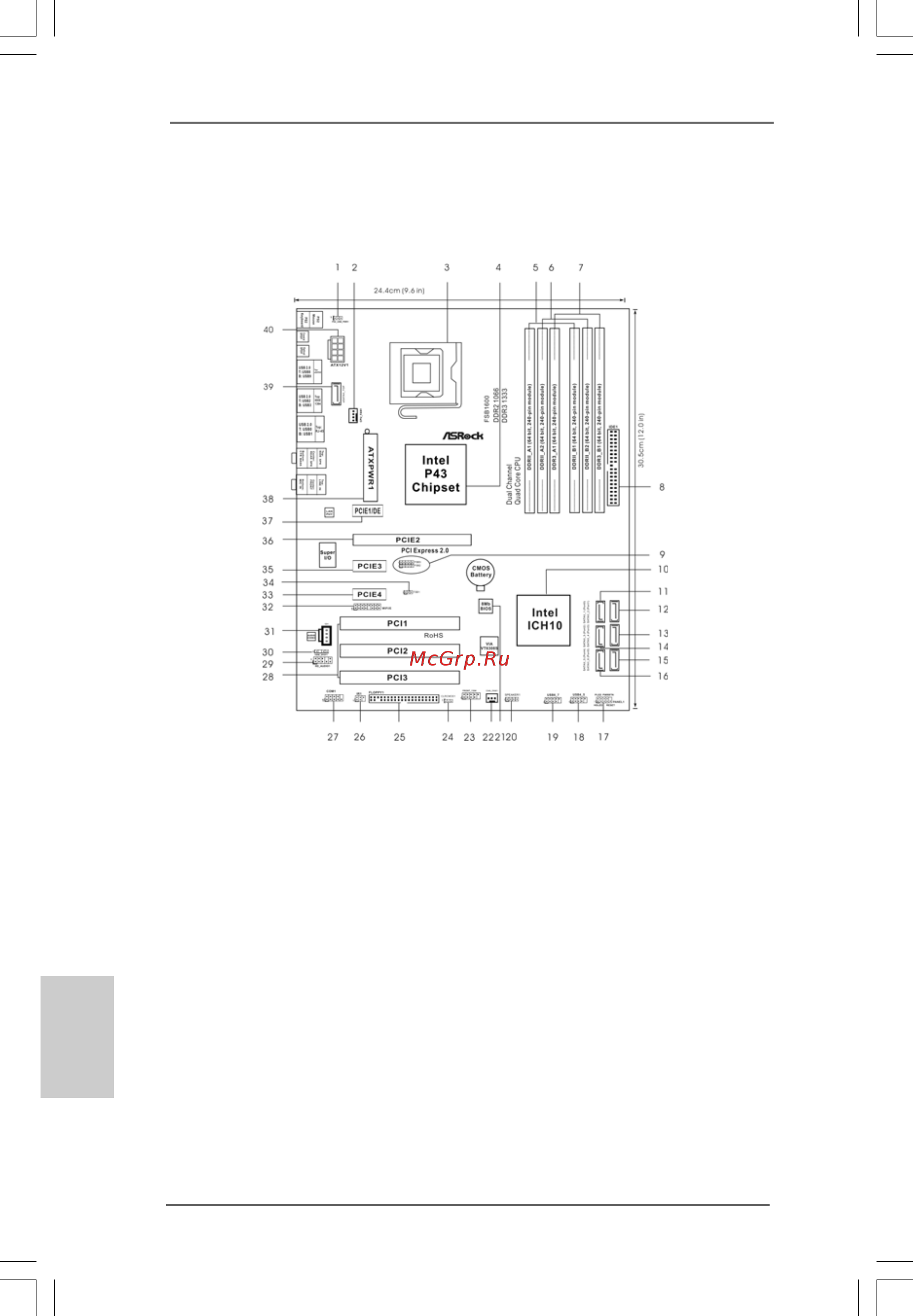

1 PS2_USB_PWR1 Jumper 21 SPI BIOS Chip

2 CPU Fan Connector (CPU_FAN1) 22 Chassis Fan Connector (CHA_FAN1)

3 775-Pin CPU Socket 23 Front Panel IEEE 1394 Header

4 North Bridge Controller (FRONT_1394)

5 2 x 240-pin DDR2 DIMM Slots 24 Clear CMOS Jumper (CLRCMOS1)

(Dual Channel A: DDRII_A1, DDRII_B1; Yellow) 25 Floppy Connector (FLOPPY1)

6 2 x 240-pin DDR2 DIMM Slots 26 DeskExpress Hot Plug Detection Header

(Dual Channel B: DDRII_A2, DDRII_B2; Orange) (IR1)

7 2 x 240-pin DDR3 DIMM Slots 27 COM Port Header (COM1)

(Dual Channel C: DDR3_A1, DDR3_B1; Green) 28 PCI Slots (PCI1 - 3)

8 IDE1 Connector (IDE1, Blue) 29 Front Panel Audio Header (HD_AUDIO1)

9 FSB2 / FSB3 Jumpers 30 HDMI_SPDIF Header (HDMI_SPDIF1)

10 South Bridge Controller 31 Internal Audio Connector: CD1 (Black)

11 SATAII Connector (SATAII_1 (Port0), Red) 32 WiFi/E Header (WIFI/E)

12 SATAII Connector (SATAII_2 (Port1), Red) 33 PCI Express x1 Slot (PCIE4)

13 SATAII Connector (SATAII_4 (Port3), Red) 34 FSB1 Jumper

14 SATAII Connector (SATAII_3 (Port2), Red) 35 PCI Express x1 Slot (PCIE3)

15 SATAII Connector (SATAII_6 (Port5), Orange) 36 PCI Express 2.0 x16 Slot (PCIE2, Green)

16 SATAII Connector (SATAII_5 (Port4), Red) 37 PCI Express x1 Slot (PCIE1/DE)

17 System Panel Header (PANEL1) 38 ATX Power Connector (ATXPWR1)

18 USB 2.0 Header (USB4_5, Blue) 39 eSATAII Connector (eSATAII_TOP)

19 USB 2.0 Header (USB6_7, Blue) 40 ATX 12V Connector (ATX12V1)

20 Chassis Speaker Header (SPEAKER 1)
