ASRock Motherboard

connect to

the power

supply

connect to the SATA

HDD power connector

EnglishEnglish

English

If you don’t plan to use WiFi+AP functin on this motherboard, this header can be

used as a 4-Pin USB 2.0 header to support one USB 2.0 port. To connect the

4-Pin USB device cable to this header, please refer to

this picture for proper installation.

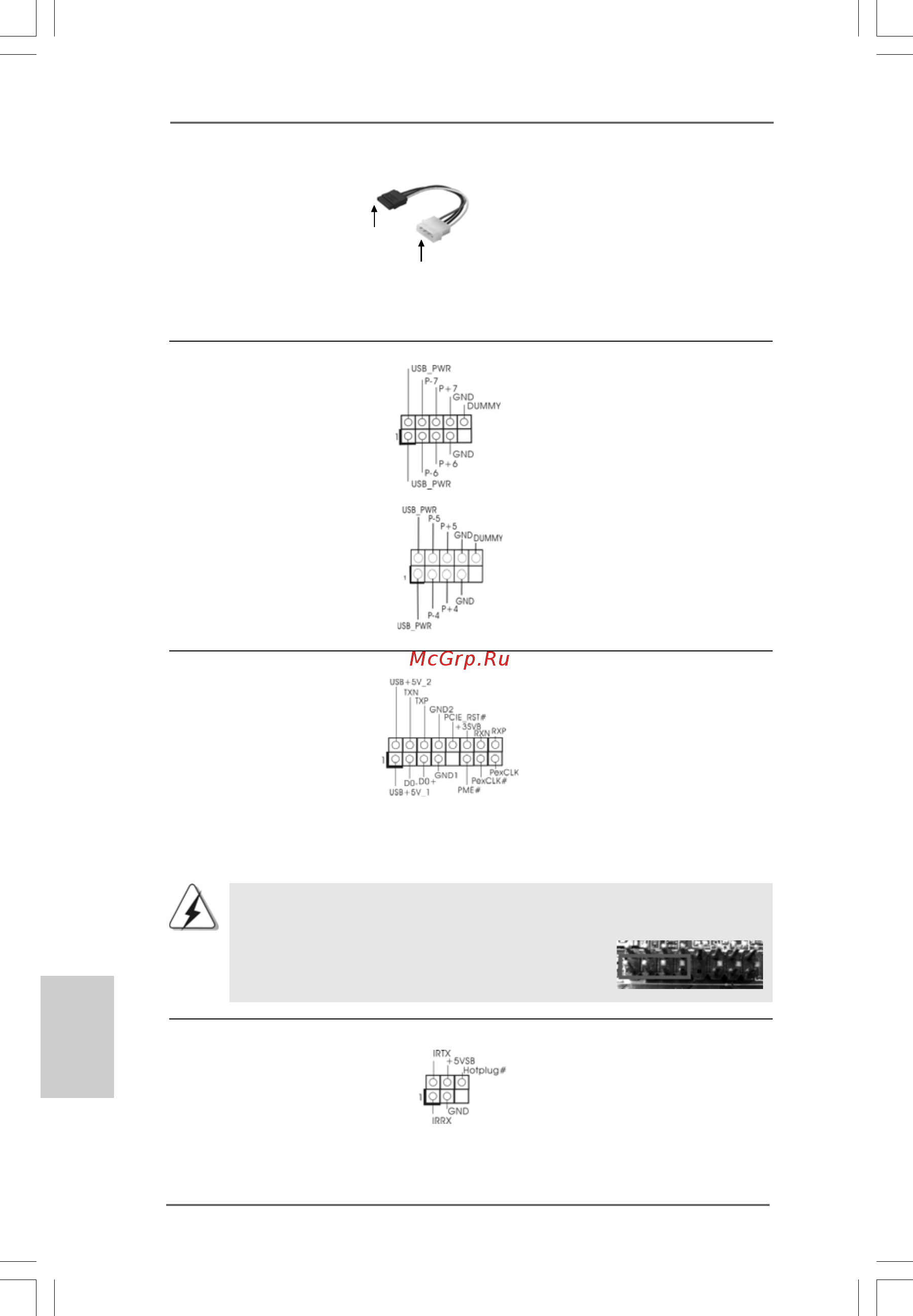

Serial ATA (SATA) Please connect the black end of

Power Cable SATA power cable to the power

(Optional) connector on each drive. Then

connect the white end of SATA

power cable to the power

connector of the power supply.

DeskExpress Hot Plug Detection This header supports the Hot

Header Plug detection function for

(5-pin IR1) ASRock DeskExpress.

(see p.2 No. 26 or p.3, No. 25)

USB 2.0 Headers Besides six default USB 2.0

(9-pin USB6_7) ports on the I/O panel, there are

(see p.2/3 No. 19) two USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB

2.0 ports.

(9-pin USB4_5)

(see p.2/3 No. 18)

WiFi/E Header This header supports WiFi+AP

(15-pin WIFI/E) function with ASRock

(see p.2 No. 32 or p.3, No. 31) WiFi-802.11g or WiFi-802.11n

module, an easy-to-use wireless

local area network (WLAN)

adapter. It allows you to create a

wireless environment and enjoy the

convenience of wireless network

connectivity.
