ASRock G41M-VGS3 / G41M-VS3 Motherboard

EnglishEnglish

English

1.3 Jumpers Setup1.3 Jumpers Setup

1.3 Jumpers Setup

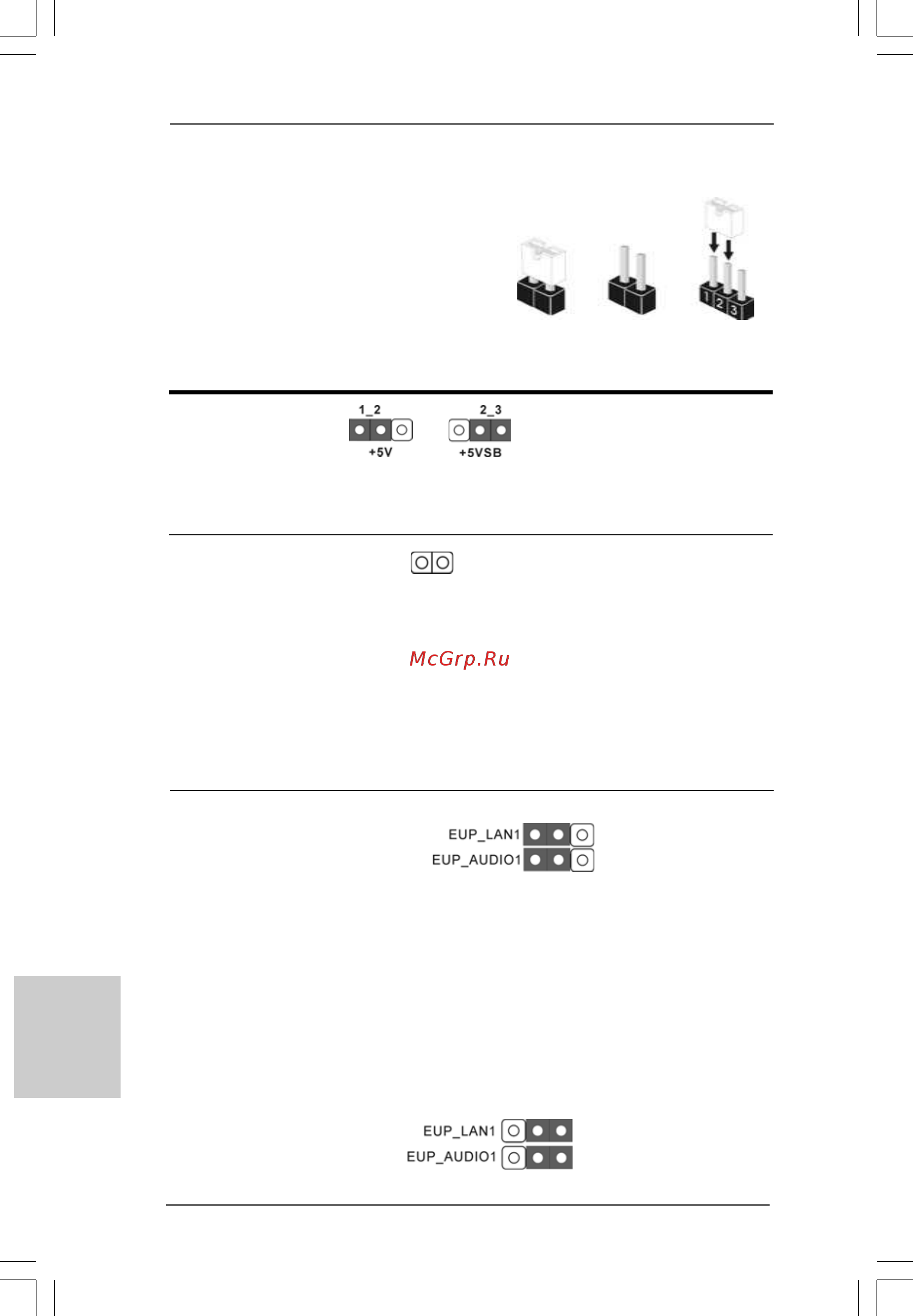

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose pin1

and pin2 are “Short” when jumper cap is

placed on these 2 pins.

Jumper Setting Description

PS2_USB_PWR1 Short pin2, pin3 to enable

(see p.2 No. 1) +5VSB (standby) for PS/2

or USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current provided by

power supply.

Clear CMOS

(CLRCMOS1, 2-pin jumper)

(see p.2 No. 18)

Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes

system setup information such as system password, date, time, and system

setup parameters. To clear and reset the system parameters to default setup,

please turn off the computer and unplug the power cord from the power

supply. After waiting for 15 seconds, use a jumper cap to short 2 pins on

CLRCMOS1 for 5 seconds.

2-pin jumper

Short Open

EUP LAN / EUP Audio Jumper

(EUP_LAN1, 3-pin jumper, see p.2 No. 23)

(EUP_AUDIO1, 3-pin jumper, see p.2 No. 22)

Note: EUP_LAN and EUP_AUDIO jumper design decreases the power consumption

of this motherboard to meet EuP standard. With an ASRock EuP ready

motherboard and a power supply that the 5VSB power efficiency is higher

than 50% under 100mA current consumption, your system is able to submit

EuP standard. The default setting (short pin1 and pin2) is EuP enabled. If you

want to disable this power saving function, you may short pin2 and pin3.

Please be noticed that when EUP_LAN jumper is set to enabled, the

Wake-On-LAN function under S3 (Suspend to RAM), S4 (Suspend to Disk),

and S5 (Soft Off) will be disabled.

Default (Enable EuP)

(Disable EuP)
