ASRock G41M-VGS3 / G41M-VS3 Motherboard

EnglishEnglish

English

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB6_7) ports on the I/O panel, there are

(see p.2 No. 17) two USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB

2.0 ports.

(9-pin USB4_5)

(see p.2 No. 15)

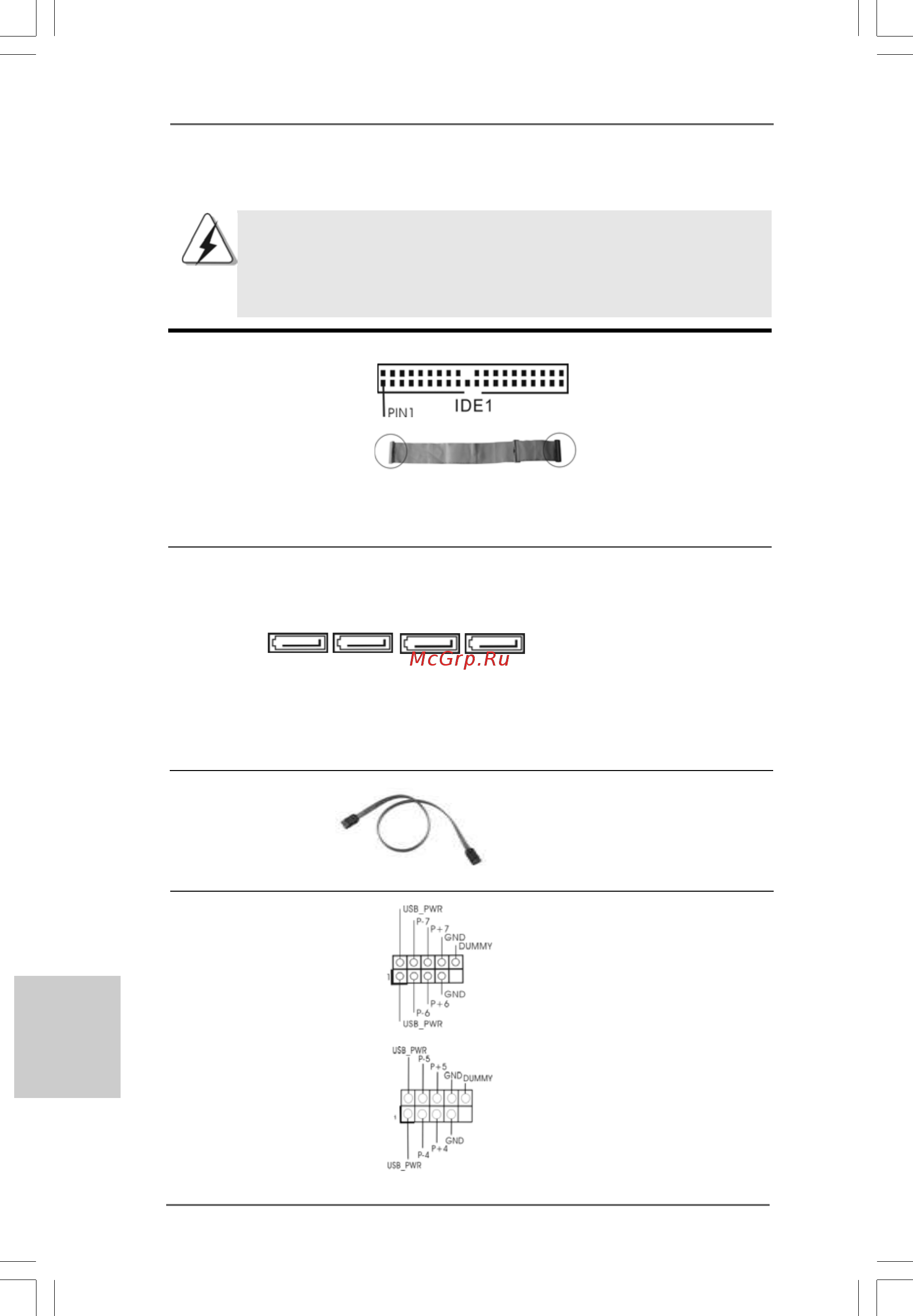

1.4 Onboard Headers and Connectors1.4 Onboard Headers and Connectors

1.4 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Primary IDE connector (Blue)

(39-pin IDE1, see p.2 No. 9)

Note: Please refer to the instruction of your IDE device vendor for the details.

Serial ATAII Connectors These Serial ATAII (SATAII)

(SATAII_1: connectors support SATAII

see p.2, No. 10) or SATA hard disk for internal

(SATAII_2: storage devices. The current

see p.2, No. 11) SATAII interface allows up to

(SATAII_3: 3.0 Gb/s data transfer rate.

see p.2, No. 12)

(SATAII_4:

see p.2, No. 13)

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on the motherboard.

connect the black end

to the IDE devices

connect the blue end

to the motherboard

80-conductor ATA 66/100 cable

SATAII_2 SATAII_1

SATAII_4 SATAII_3
