ASRock G41M-S [2/132] Motherboard layout motherboard layout motherboard layout motherboard layout motherboard layout

ASRock G41M-S Motherboard

EnglishEnglish

English

Motherboard LayoutMotherboard Layout

Motherboard Layout

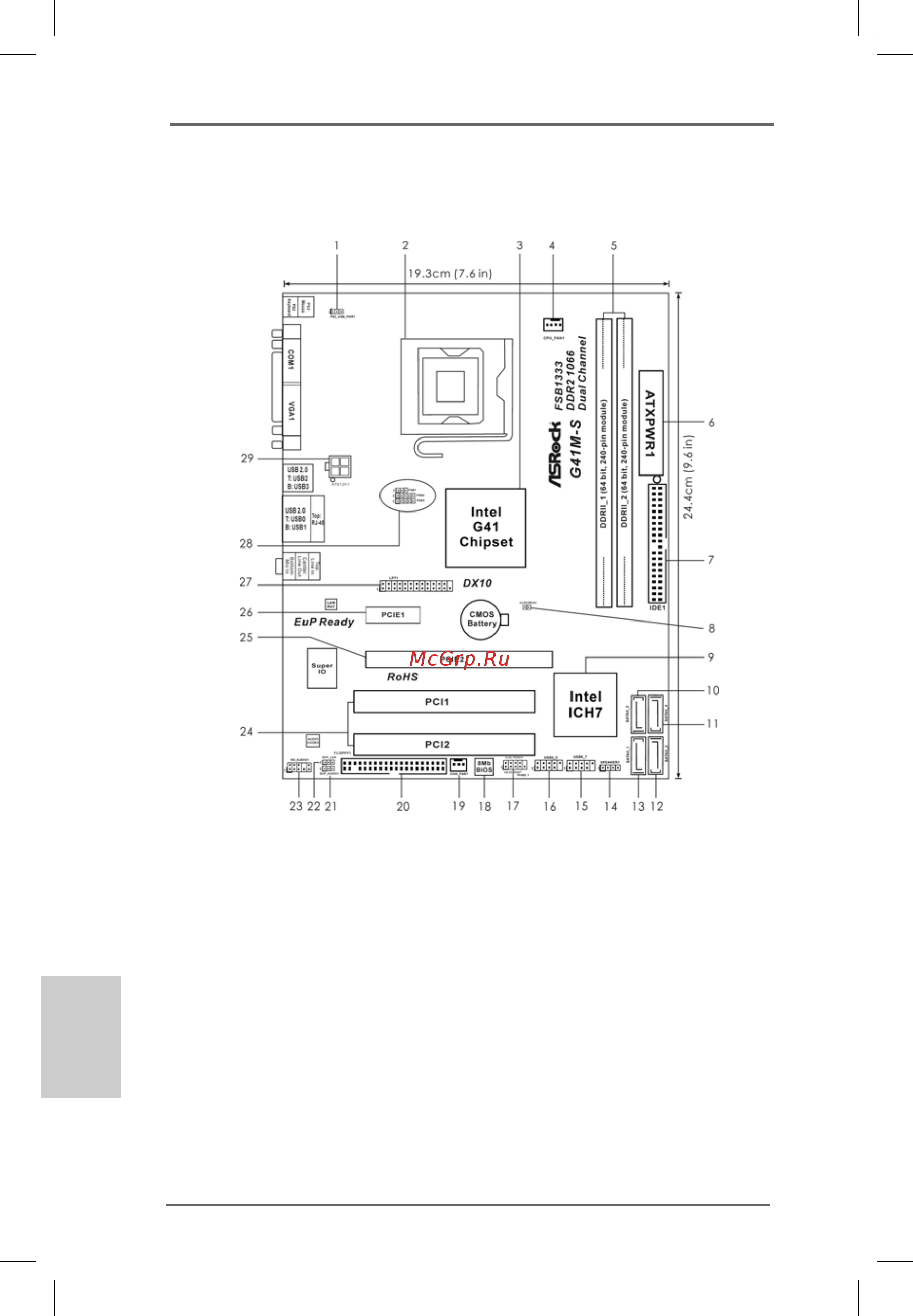

1 PS2_USB_PWR1 Jumper 16 USB 2.0 Header (USB4_5, Blue)

2 775-Pin CPU Socket 17 System Panel Header (PANEL1, Orange)

3 North Bridge Controller 18 BIOS SPI Chip

4 CPU Fan Connector (CPU_FAN1) 19 Chassis Fan Connector (CHA_FAN1)

5 2 x 240-pin DDR2 DIMM Slots 20 Floppy Connector (FLOPPY1)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 21 EUP Audio Jumper (EUP_AUDIO1)

6 ATX Power Connector (ATXPWR1) 22 EUP LAN Jumper (EUP_LAN1)

7 IDE1 Connector (IDE1, Blue) 23 Front Panel Audio Header

8 Clear CMOS Jumper (CLRCMOS1) (HD_AUDIO1, Lime)

9 South Bridge Controller 24 PCI Slots (PCI1- 2)

10 Third SATAII Connector (SATAII_3; Orange) 25 PCI Express x16 Slot (PCIE2)

11 Fourth SATAII Connector (SATAII_4; Orange) 26 PCI Express x1 Slot (PCIE1)

12 Secondary SATAII Connector (SATAII_2; Red) 27 Print Port Header (LPT1, Purple)

13 Primary SATAII Connector (SATAII_1; Red) 28 FSB1 / FSB2 / FSB3 Jumper

14 Chassis Speaker Header (SPEAKER 1, Purple) 29 ATX 12V Connector (ATX12V1)

15 USB 2.0 Header (USB6_7, Blue)
