ASRock G41C-VS Motherboard

EnglishEnglish

English

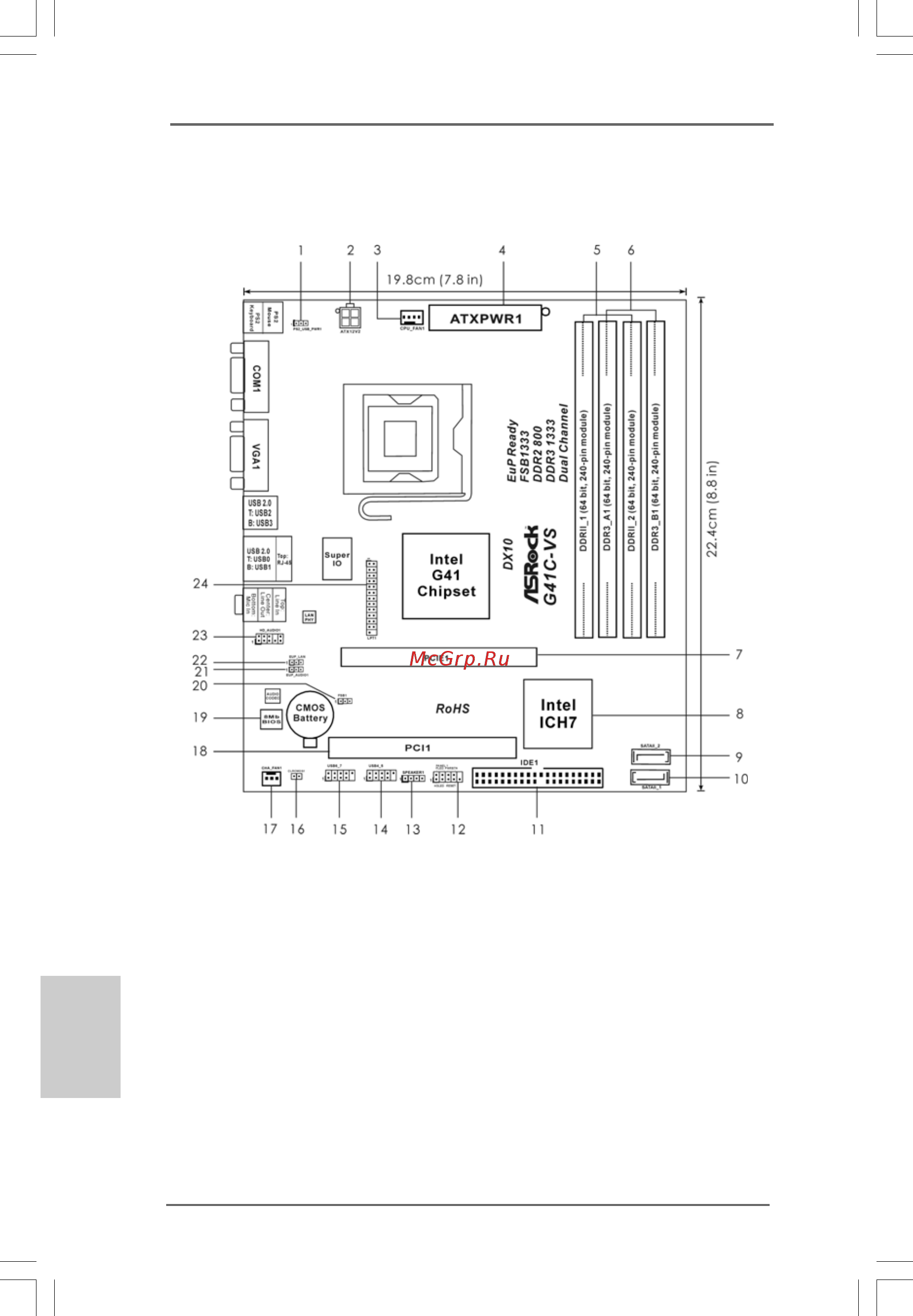

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 13 Chassis Speaker Header

2 ATX 12V Connector (ATX12V2) (SPEAKER 1, Purple)

3 CPU Fan Connector (CPU_FAN1) 14 USB 2.0 Header (USB4_5, Blue)

4 ATX Power Connector (ATXPWR1) 15 USB 2.0 Header (USB6_7, Blue)

5 2 x 240-pin DDR2 DIMM Slots 16 Clear CMOS Jumper (CLRCMOS1)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 17 Chassis Fan Connector (CHA_FAN1)

6 2 x 240-pin DDR3 DIMM Slots 18 PCI Slot (PCI1)

(Dual Channel: DDR3_A1, DDR3_B1; Blue) 19 BIOS SPI Chip

7 PCI Express x16 Slot (PCIE1) 20 FSB1 Jumper

8 South Bridge Controller 21 EUP Audio Jumper (EUP_AUDIO1)

9 Secondary SATAII Connector (SATAII_2; Red) 22 EUP LAN Jumper (EUP_LAN1)

10 Primary SATAII Connector (SATAII_1; Red) 23 Front Panel Audio Header

11 IDE1 Connector (IDE1, Blue) (HD_AUDIO1, Lime)

12 System Panel Header (PANEL1, Orange) 24 Print Port Header (LPT1, Purple)
