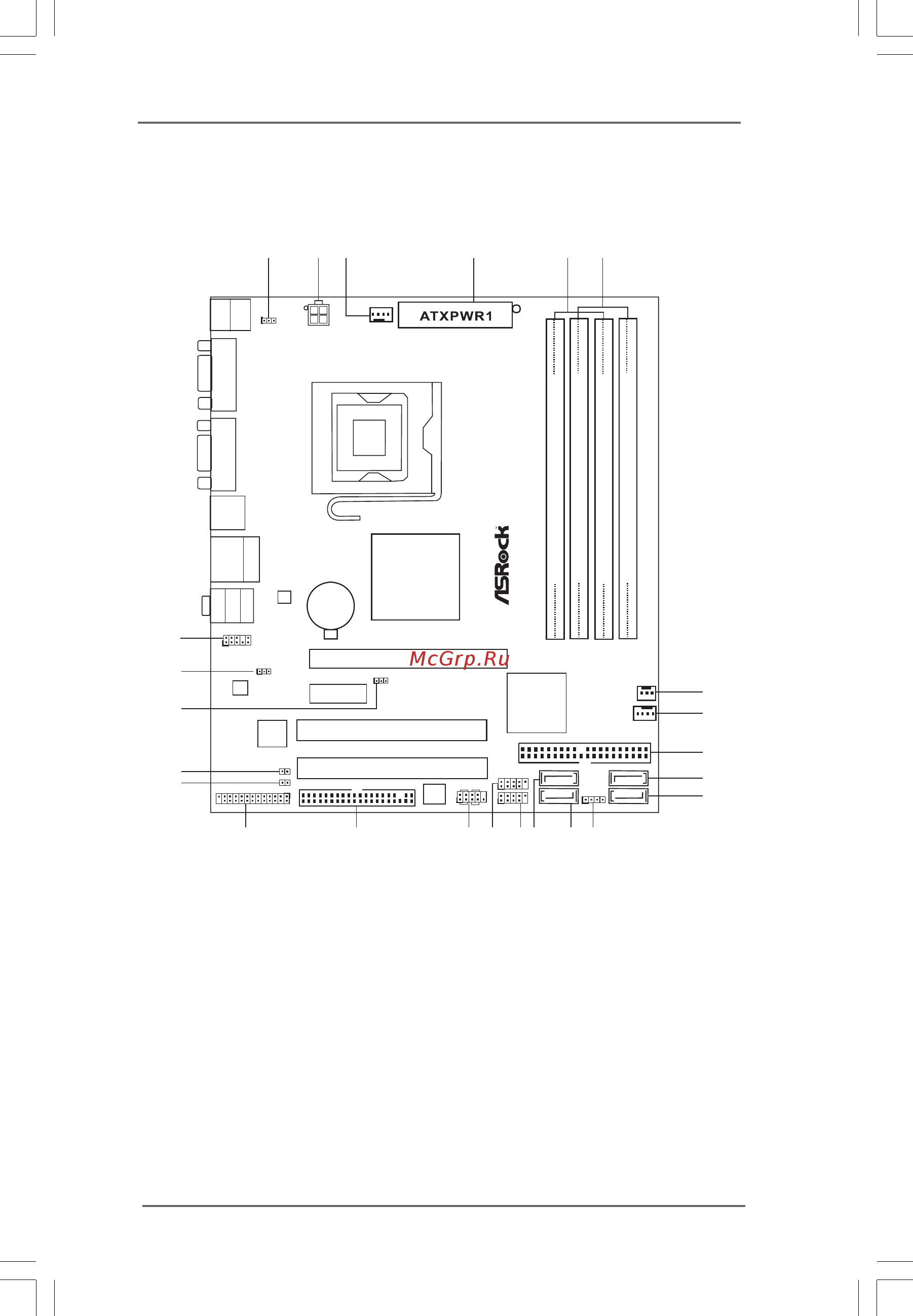

1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout
Intel
G41
Chipset
Intel
ICH7
PS2
Mouse
PS2
Keyboard
VGA1
COM1
USB 2.0
T: USB2
B: USB3
USB 2.0
T: U SB 0
B: USB1
Top:
RJ-45
Top:
Line In
Center:
Line Out
Bottom:
Mic In
1
PS2_USB_PWR1
ATX12V2
CPU_FAN1
FSB800
DDRII_1 (64 bit, 240-pin module)
FSB800
DDR3_A1 (64 bit, 240-pin module)
FSB800
DDRII_2 (64 bit, 240-pin module)
FSB800
DDR3_B1 (64 bit, 240-pin module)
LAN
HD_AUDIO1
1
EUP_AUDIO1
1
PCIE1
IDE1
CMOS
Battery
AUDIO
CODEC
PCI1
SPEAKER1
1
PANEL1
HDLED RESET
PLED PWRBTN
1
CHA_FAN1
CLRCMOS1
1
USB6_7
1
USB4_5
G41C-GS
FSB1
1
1
24
5
3
7
6
9
10
12
13
14
11
15
16
17
18
19
20
21
22
23
PCIE2
PCI2
Super
IO
PWR_FAN1
SATAII_1
SATAII_2
SATAII_3
SATAII_4
8Mb
BIOS
FLOPPY1
RoHS
24
1
LPT1
CI1
8
1 PS2_USB_PWR1 Jumper 13 Secondary SATAII Connector
2 ATX 12V Connector (ATX12V2) (SATAII_2; Red)
3 CPU Fan Connector (CPU_FAN1) 14 Primary SATAII Connector (SATAII_1; Red)
4 ATX Power Connector (ATXPWR1) 15 USB 2.0 Header (USB6_7, Blue)
5 2 x 240-pin DDR2 DIMM Slots 16 USB 2.0 Header (USB4_5, Blue)
(Dual Channel: DDRII_1, DDRII_2; Yellow) 17 System Panel Header (PANEL1, Orange)
6 2 x 240-pin DDR3 DIMM Slots 18 Floppy Connector (FLOPPY1)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 19 Print Port Header (LPT1, Purple)
7 Power Fan Connector (PWR_FAN1) 20 Clear CMOS Jumper (CLRCMOS1)
8 Chassis Fan Connector (CHA_FAN1) 21 Chassis Intrusion Header (CI1)
9 IDE1 Connector (IDE1, Blue) 22 FSB1 Jumper
10 Third SATAII Connector (SATAII_3; Red) 23 EUP Audio Jumper (EUP_AUDIO1)
11 Fourth SATAII Connector (SATAII_4; Red) 24 Front Panel Audio Header
12 Chassis Speaker Header (HD_AUDIO1, Lime)
(SPEAKER1, Purple)
