ASRock P4i48 [12/36] Installation of memory modules dimm

2.3 Installation of Memory Modules (DIMM)

P4i48 motherboard provides two 184-pin DDR (Double Data Rate) DIMM slots.

Please make sure to disconnect power supply before adding or removing

DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

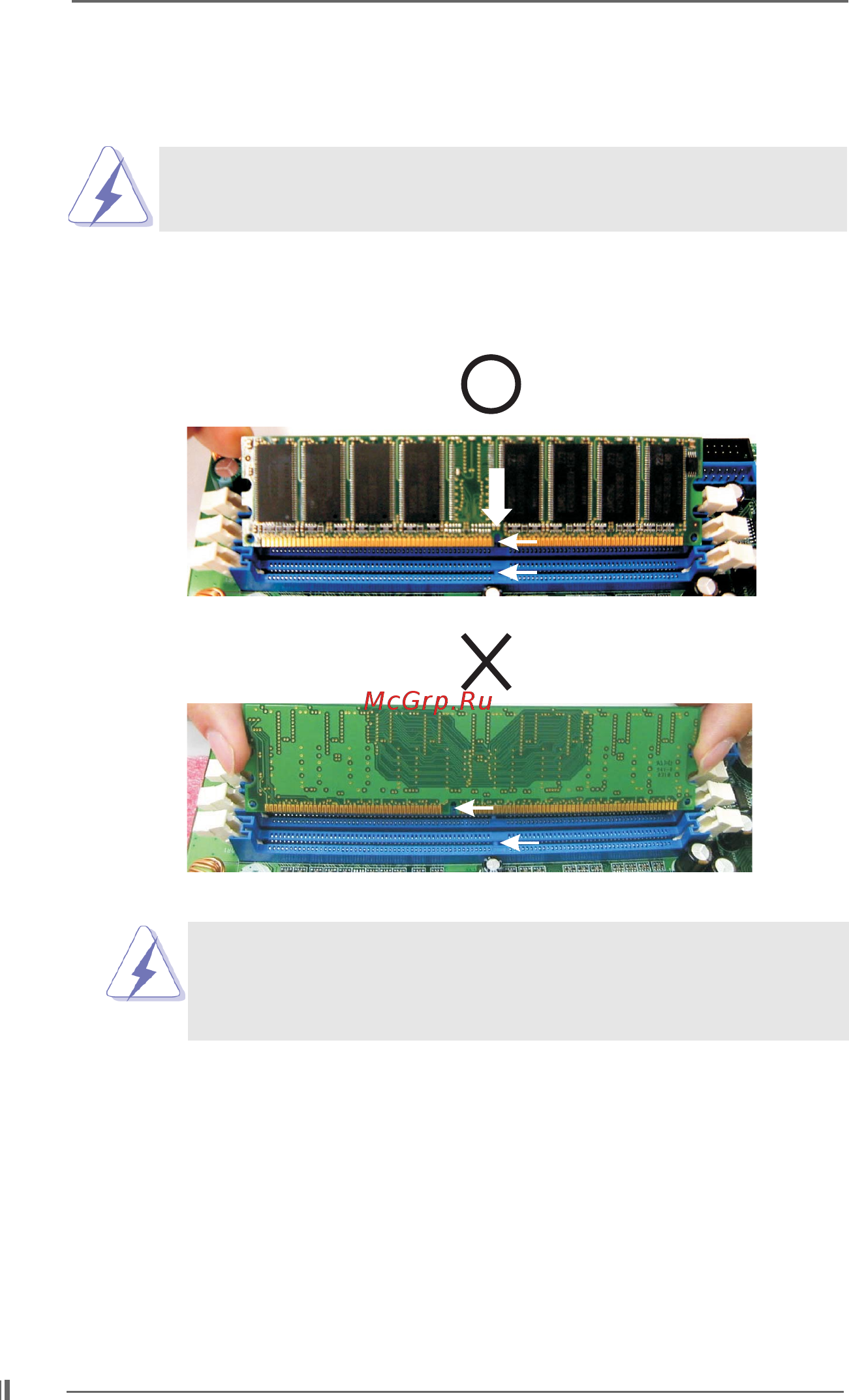

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break

on the slot.

The DIMM only fits in one correct orientation. It will cause

permanent damage to the motherboard and the DIMM if you

force the DIMM into the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully

snap back in place and the DIMM is properly seated.

notch

break

notch

break
