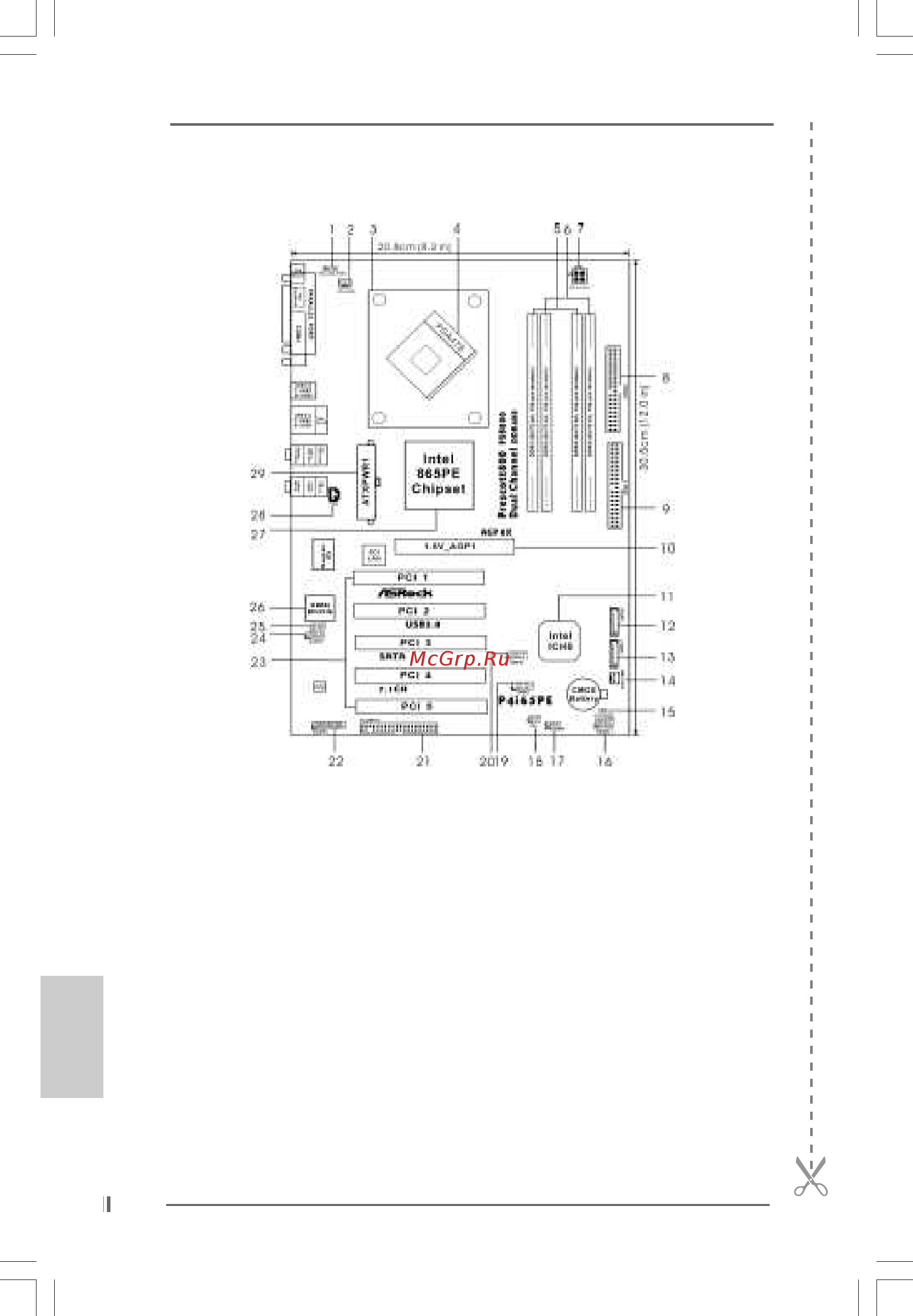

ASRock P4i65PE [2/80] Motherboard l motherboard l motherboard l motherboard l motherboard layout ayout ayout ayout ayout

ASRock P4i65PE Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 15 Clear CMOS Jumper (CLRCMOS0)

2 CPU Fan Connector (CPU_FAN1) 16 System Panel Header (PANEL1)

3 CPU Heatsink Retention Module 17 Chassis Speaker Header (SPEAKER 1)

4 P4-478 CPU Socket 18 Infrared Module Header (IR1)

5 2 x 184-pin DDR DIMM Slots 19 USB 2.0 Header (USB67, Blue)

(Dual Channel A: DDR1, DDR3; Blue) 20 USB 2.0 Header (USB45, Blue)

6 2 x 184-pin DDR DIMM Slots 21 Floppy Connector (FLOPPY1)

(Dual Channel B: DDR2, DDR4; Black) 22 Game Connector (GAME1)

7 ATX 12V Connector (ATX12V1) 23 PCI Slots (PCI1- 5)

8 Secondary IDE Connector (IDE2, Black) 24 Front Panel Audio Header (AUDIO1)

9 Primary IDE Connector (IDE1, Blue) 25 JR1 / JL1 Jumpers

10 AGP Slot (1.5V_AGP1) 26 BIOS FWH Chip

11 South Bridge Controller 27 North Bridge Controller

12 Secondary Serial ATA Connector (SATA2) 28 Internal Audio Connector: CD1 (Black)

13 Primary Serial ATA Connector (SATA1) 29 ATX Power Connector (ATXPWR1)

14 Chassis Fan Connector (CHA_FAN1)
