11
2.1 CPU Sockets
This motherboard is equipped with two types of CPU sockets. You may choose to
install either Intel 775-Pin CPU or Intel 478-Pin CPU into this motherboard. However, to
avoid instability and damage to the system, please do not install both of them into this
motherboard.
Important: If you install a 775-Pin CPU into this motherboard, it is necessary to
adjust the setting of J1--J6, J8--J14, J17, J18, and J21 Jumpers by
shorting pin1 and pin2 of all these 16 sets of jumpers. These jumpers
are set to support 478-Pin CPU by shorting pin2 and pin3 by default.

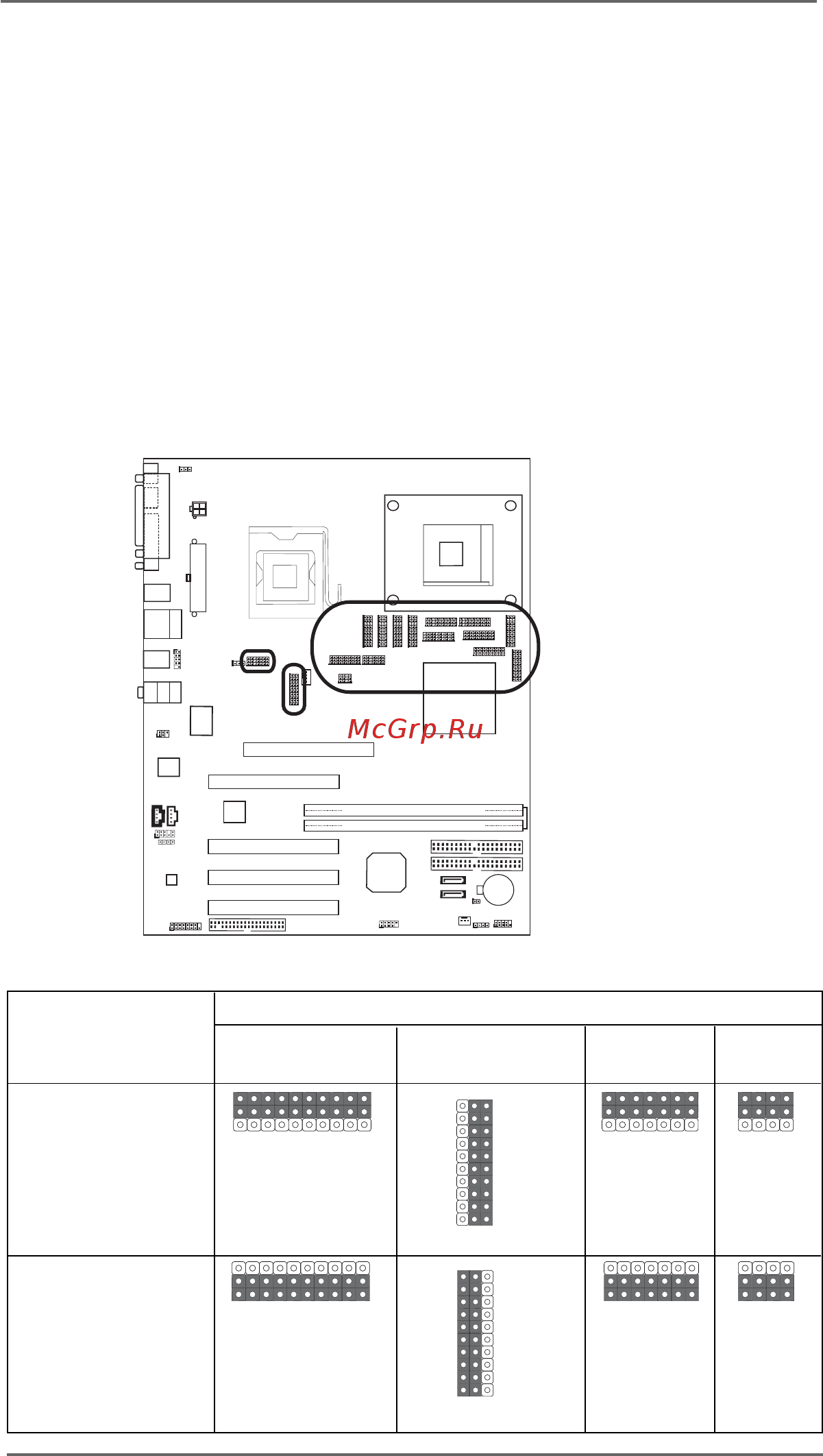

Please refer to the figure below for these jumpers’ location on the
motherboard.
PGA478
11 11
11 11111111
11 11111
11 11111111
11 11111111 11 11111111
11 11111111
11 11111111
11 11111111
11 11111111
11 11111111
11 11111111
11 11111111
11 11111111
11 11111111
11 11111
J17
J14
J8 J18
J5
J9 J6 J10
J21
J4
J13 J12
J11
J1
J2
J3
J17
Jumper
J14
Jumper
Jumpers
J1, J2, J3
J4, J5, J6
J8, J9, J10
J11, J12
J13, J18
J21
CPU Type Jumper Settings
J1 / J4 / J8 / J2 / J3 / J5 / J6 / J17 / J18 J21
J11 / J12 / J13 J9 / J10 / J14
478-Pin CPU
(all 16 Jumpers:
short Pin2 and Pin3) (10 x 3-pin) (7 x 3-pin) (4 x 3-pin)
(Default)
(10 x 3-pin)
775-Pin CPU
(all 16 Jumpers:
short Pin1 and Pin2) (10 x 3-pin) (7 x 3-pin) (4 x 3-pin)
(10 x 3-pin)
3
2
3
2
3
2
2_3
1
2
1
2
1
2
1_2
NOTE:
For clearer view of
Jumpers J1-J6, J8 - J13,
J18, and J21, please re-
fer to the magnification
on page 9.
